FUSE 5x20 C/CODE T LBC 200mA/250V (P)
Description
AI

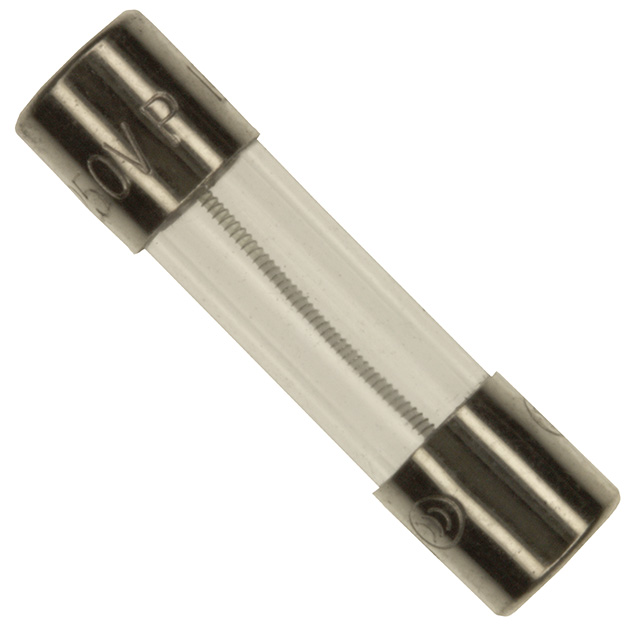

The 213 Series is a 5x20mm time-lag, surge-withstand, glass body cartridge fuse that is designed to IEC specifications.
Beta
⌘K
FUSE 5x20 C/CODE T LBC 200mA/250V (P)
FUSE 5x20 C/CODE T LBC 200mA/250V (P)
| Part | Package / Case [x] | Package / Case [y] | Melting I²t | Current Rating (Amps) | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [diameter] | Fuse Type | Voltage Rating - AC | Response Time | Breaking Capacity @ Rated Voltage | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | DC Cold Resistance | Melting I˛t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LITTELFUSE | 5 mm | 20 mm | 0.225 | 0.2 A | 20 mm | 0.205 in | 0.787 " | 5.2 mm | Cartridge Glass | 250 V | Slow Blow | 35 A | Requires Holder | -55 C | 125 °C | ||
 LITTELFUSE | 5 mm | 20 mm | 0.225 | 0.2 A | 20 mm | 0.205 in | 0.787 " | 5.2 mm | Cartridge Glass | 250 V | Slow Blow | 35 A | Requires Holder | -55 C | 125 °C | 1.6 Ohms | 0.225 |
LITTELFUSE | 5 mm | 20 mm | 0.225 | 0.2 A | 20 mm | 0.205 in | 0.787 " | 5.2 mm | Cartridge Glass | 250 V | Slow Blow | 35 A | Requires Holder | -55 C | 125 °C |
