EM9304 Series
Manufacturer: EM Microelectronic
Beta
⌘K
IC RF TXRX+MCU BLE 28QFN
| Part | Data Rate (Max) [Max] | Serial Interfaces | RF Family/Standard | Supplier Device Package | Current - Receiving | GPIO | Power - Output | Type | Current - Transmitting [Min] | Current - Transmitting [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Protocol | Frequency | Package / Case | Voltage - Supply [Min] | Voltage - Supply [Max] | Sensitivity | Supplier Device Package [x] | Supplier Device Package [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

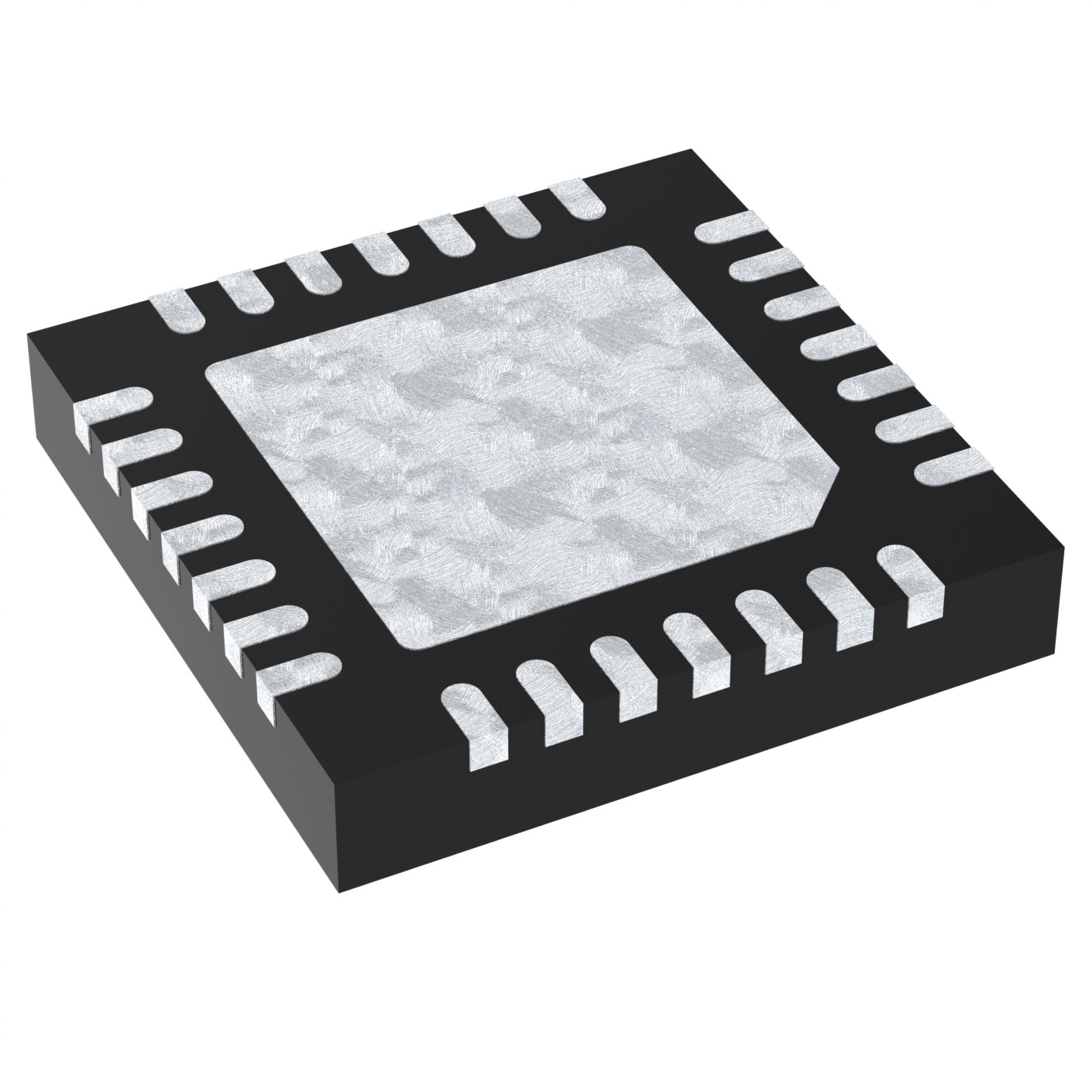

 EM Microelectronic | 1 Mbps | GPIO I2S SPI UART | Bluetooth | 28-QFN (4x4) | 3.3 mA | 1 | 6.1 dBm | TxRx + MCU | 2.2 mA | 9.9 mA | 85 °C | -40 C | Surface Mount | Bluetooth v5.0 | 2.4 GHz | 28-WFQFN Exposed Pad | 2.3 V | 3.6 V | -94 dBm | ||
 EM Microelectronic | 1 Mbps | GPIO I2S SPI UART | Bluetooth | 25-WLCSP | 3 mA | 1 | 6.1 dBm | TxRx + MCU | 2.2 mA | 9.9 mA | 85 °C | -40 C | Surface Mount | Bluetooth v5.0 | 2.4 GHz | 25-UFBGA WLCSP | 2.3 V | 3.6 V | -94 dBm | 2.34 | 2.21 |
