0041.9146 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K
SWITCH PUSH SPST-NO 200MA 60V
| Part | Electrical Life | Mechanical Life | Panel Cutout Dimensions [diameter] | Actuator Type | Type | Switch Function | Current Rating (Amps) | Mounting Type | Circuit | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection | Termination Style | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 10000 Cycles | 10000 Steps | 8 mm | Button Square | Illuminated Standard | Off-Mom | 200 mA | Panel Mount Front | SPST-NO | 50 VDC | 60 V | -25 °C | 60 °C | IP40 | PC Pin | No Marking | |||

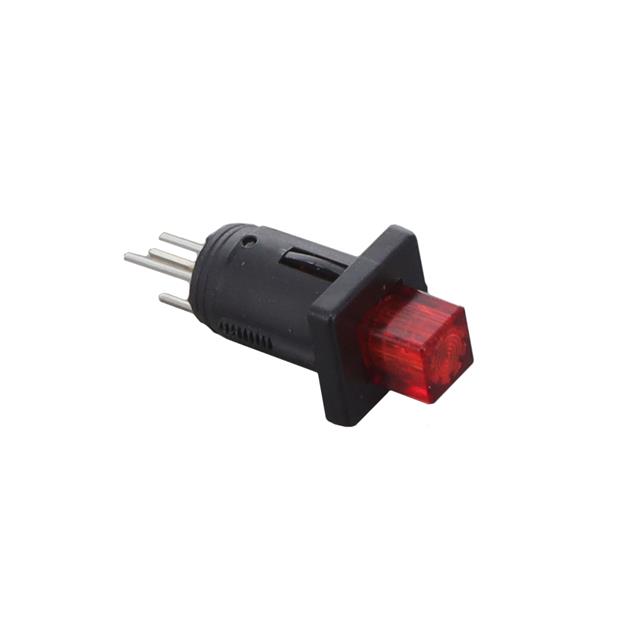

 SCHURTER Inc. | 10000 Cycles | 10000 Steps | 8 mm | Button Square | Illuminated Standard | Off-Mom | 200 mA | Panel Mount Front | SPST-NO | 50 VDC | 60 V | -25 °C | 60 °C | IP40 | PC Pin | No Marking | Red | LED Red | 2 VDC |

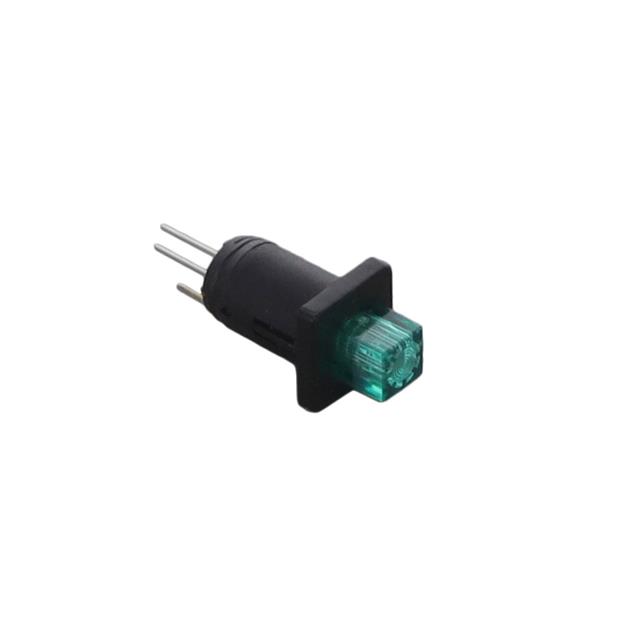

 SCHURTER Inc. | 10000 Cycles | 10000 Steps | 8 mm | Button Square | Illuminated Standard | Off-Mom | 200 mA | Panel Mount Front | SPST-NO | 50 VDC | 60 V | -25 °C | 60 °C | IP40 | PC Pin | No Marking | Green | Green LED | 2 VDC |
