ESP8685 Series
Manufacturer: Espressif Systems
Beta
⌘K
IC RF TXRX+MCU BLE 28QFN
| Part | Supplier Device Package | Frequency | Mounting Type | Protocol | GPIO | Current - Receiving [Max] | Current - Receiving [Min] | RF Family/Standard | Package / Case | Voltage - Supply [Max] | Voltage - Supply [Min] | Type | Current - Transmitting [Min] | Current - Transmitting [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Power - Output | Serial Interfaces | Sensitivity | Data Rate (Max) [Max] | Memory Size | Memory Size | Memory Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

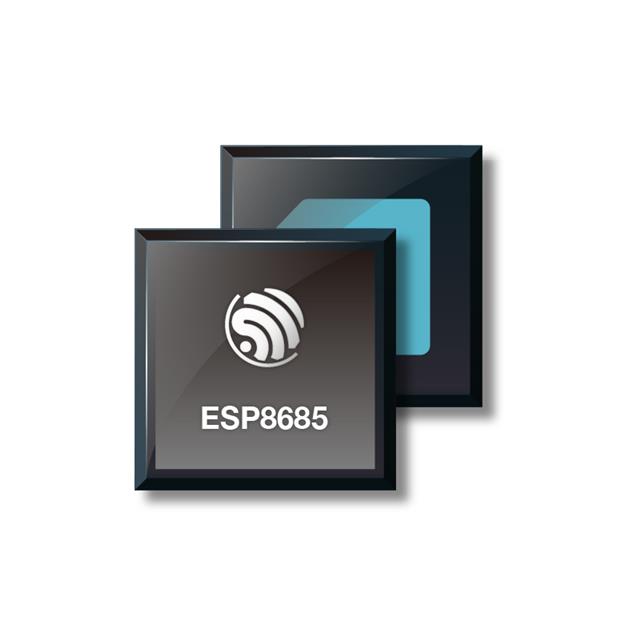

 Espressif Systems | 28-QFN (4x4) | 2.4 GHz | Surface Mount | 802.11b/g/n Bluetooth v5.0 | 15 | 87 mA | 84 mA | Bluetooth WiFi | 28-VFQFN Exposed Pad | 3.6 V | 3 V | TxRx + MCU | 276 mA | 335 mA | -40 °C | 105 °C | 21 dBm | ADC GPIO I2C I2S PWM SPI UART USB | -98.4 dBm | 150 Mbps | Flash | 384 kB 400 kB | |

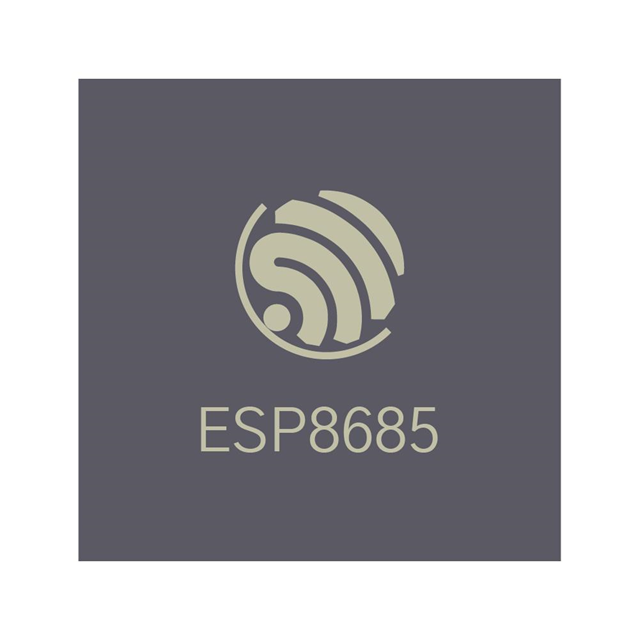

 Espressif Systems | 28-QFN (4x4) | 2.4 GHz | Surface Mount | 802.11b/g/n Bluetooth v5.0 | 15 | 87 mA | 84 mA | WiFi | 28-VFQFN Exposed Pad | 3.6 V | 3 V | TxRx + MCU | 276 mA | 335 mA | -40 °C | 105 °C | 19 dBm | ADC GPIO I2C I2S PWM SPI UART USB | -97 dBm | 150 Mbps | 2 MB 384 kB 400 kB |
