EZM12 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN EDGE DUAL FMALE 24POS 0.156
| Part | Contact Material | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Gender | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Read Out | Color | Card Type | Contact Type | Material - Insulation | Card Thickness | Card Thickness | Number of Rows | Mounting Type | Number of Positions/Bay/Row [custom] | Termination | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

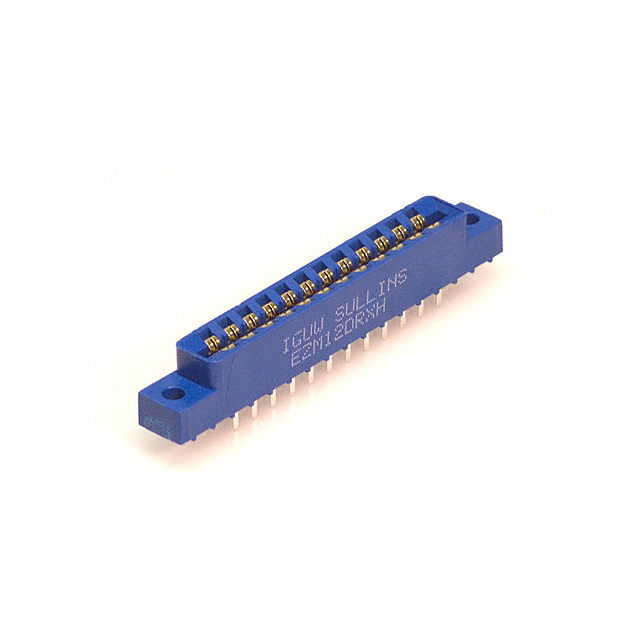

 Sullins Connector Solutions | Phosphor Bronze | 0.125 in | 3.18 mm | Top Mount Opening Unthreaded | Female | 125 °C | -65 ░C | Gold | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | Dual | Blue | Non Specified - Dual Edge | Full Bellows | Polybutylene Terephthalate (PBT) | 0.062 in | 1.57 mm | 2 | Through Hole | 12 | Solder | 24 |

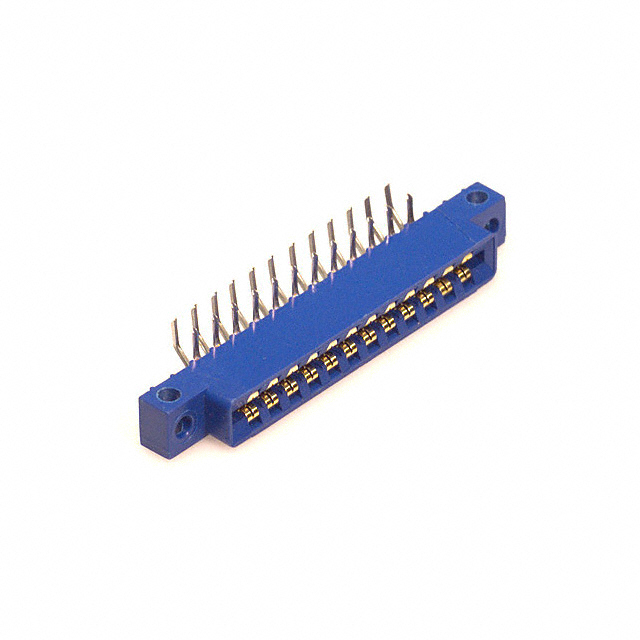

 Sullins Connector Solutions | Phosphor Bronze | 0.125 in | 3.18 mm | Side Mount Opening Unthreaded | Female | 125 °C | -65 ░C | Gold | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | Dual | Blue | Non Specified - Dual Edge | Full Bellows | Polybutylene Terephthalate (PBT) | 0.062 in | 1.57 mm | 2 | Through Hole Right Angle | 12 | Solder | 24 |
