V3 Series

Catalog

BASIC / SNAP ACTION SWITCHES SPDT 15.1A 125VAC ROLLER LEVER

Part	Circuit	Voltage Rating - AC	Differential Travel [x]	Differential Travel [x]	Switch Function	Pretravel	Pretravel	Release Force	Overtravel [custom]	Overtravel [custom]	Termination Style	Voltage Rating - DC	Current Rating (Amps)	Operating Position	Operating Position	Mounting Type	Actuator Type	Operating Force	Differential Travel	Differential Travel	Operating Force [Min]	Operating Force [Max]	Operating Temperature [Min]	Operating Temperature [Max]

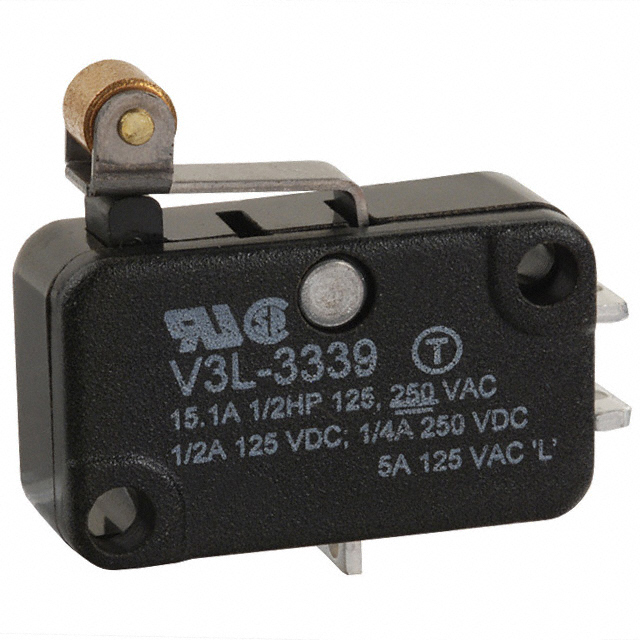

Honeywell Sensing and Productivity Solutions V3L-3339	SPDT	125 V	0.01 in	0.25 mm	On-Mom	1.2 mm	0.047 in	15 gf	0.04 "	1 mm	Solder Lug	125 VDC	15 A 500 mA	20.6 mm	0.812 in	Chassis Mount	Lever Roller	150 gf
Honeywell Sensing and Productivity Solutions 604HE162	4PDT				On-Mom	1 mm	0.04 in	1361 gf	0.125 in	3.2 mm		28 V	1 A			Chassis Mount	Round (Pin Plunger)		0.5 mm	0.02 in	2268 gf	5443 gf	-54 °C	125 °C

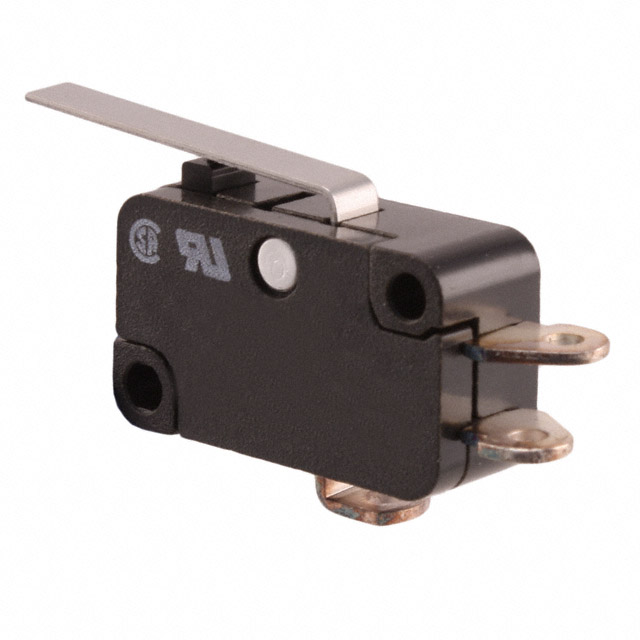

Honeywell Sensing and Productivity Solutions V3L-1229	SPDT	125 V			On-Mom	2.8 mm	0.11 in	4 gf	0.09 "	2.3 mm	Solder Lug	125 VDC	0.5 mA 10 A	15.2 mm	0.6 in	Chassis Mount	Lever Straight	35 gf	0.76 mm	0.03 in
Honeywell Sensing and Productivity Solutions JS-150
Honeywell Sensing and Productivity Solutions V3-245
Honeywell Sensing and Productivity Solutions V3-245	SPDT	125 V			On-Mom	1.2 mm	0.047 in	170 gf	0.04 "	1 mm	Screw Terminal	125 VDC	0.5 mA 10 A	14.7 mm	0.579 in	Chassis Mount	Round (Pin Plunger)		0.4 mm	0.016 in	283 gf	709 gf
