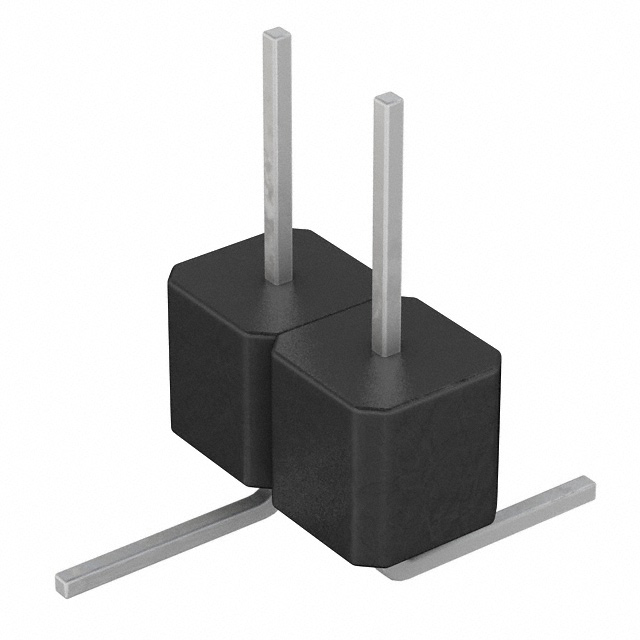

GTC02 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN HEADER SMD 2POS 2.54MM
| Part | Insulation Material | Termination | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Pitch - Mating | Pitch - Mating | Shrouding | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Mounting Type | Insulation Height | Insulation Height | Number of Positions | Connector Type | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Type | Number of Positions Loaded | Number of Rows | Insulation Color | Contact Finish - Post | Contact Shape | Contact Length - Mating | Contact Length - Mating | Fastening Type | Contact Material | Current Rating (Amps) | Style | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Nylon 9T Polyamide (PA9T) | Solder | 2.54 µm | 100 µin | 0.1 " | 2.54 mm | Unshrouded | -65 ░C | 125 °C | UL94 V-0 | Surface Mount | 0.1 in | 2.54 mm | 2 | Header | Tin-Lead | 100 çin | 2.54 çm | Male Pin | All | 1 | Black | Tin-Lead | Square | 0.23 in | 5.84 mm | Push-Pull | Phosphor Bronze | 3 A | Board to Board Cable | 600 V |
