1742669 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

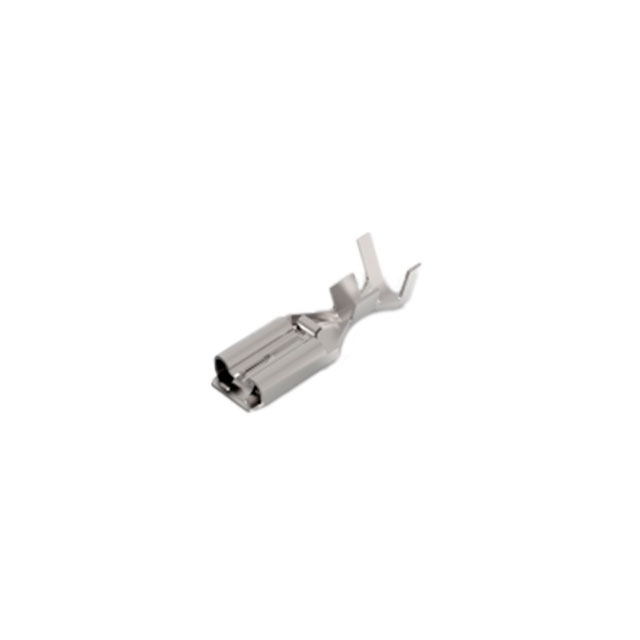

CONN QC RCPT 16-26AWG 0.187
| Part | Contact Material | Tab Length | Tab Length | Insulation | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Tab Width | Tab Width | Terminal Type | Mounting Type | Tab Thickness | Tab Thickness | Wire Gauge [Max] | Wire Gauge [Min] | Length - Overall [x] | Length - Overall [x] | Gender | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Steel | 0.287 in | 7.3 mm | Non-Insulated | 0.142 in | 2.31 mm | 3.61 mm | 0.091 in | 4.75 mm | 0.187 in | Standard | Free Hanging (In-Line) | 0.02 " | 0.51 mm | 26 AWG | 16 AWG | 0.677 in | 17.2 mm | Female | Crimp |
