306-016 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 32POS 0.156

Part	Termination Rows	Material - Insulation	Contact Material	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Mounting Type	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Rows [custom]	Color	Card Type	Termination	Card Thickness [Max]	Card Thickness [Min]	Number of Positions/Bay/Row	Contact Type	Read Out	Pitch	Pitch	Features

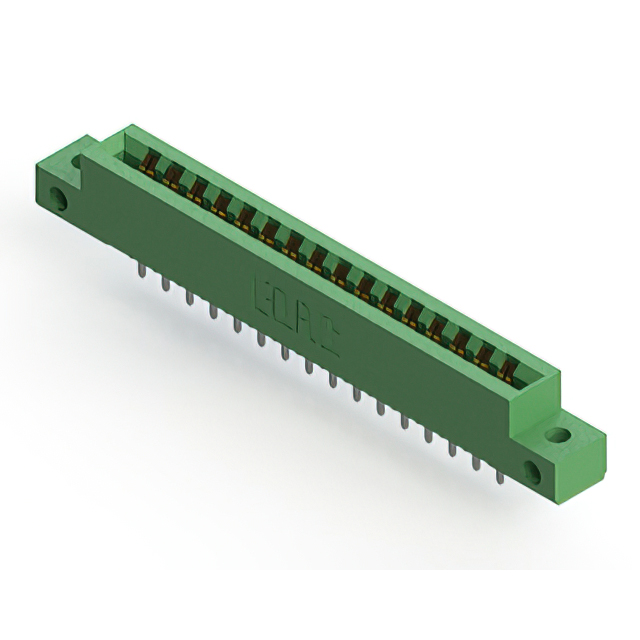

EDAC Inc. 306-016-520-112	1	Polyester Thermoplastic	Copper Alloy	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Panel Mount Through Hole	Female	-40 C	105 ░C	0.25 Ám	10 Áin	Gold	2	Green	Non Specified - Dual Edge	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	16	Cantilever	Dual	3.96 mm	0.156 in

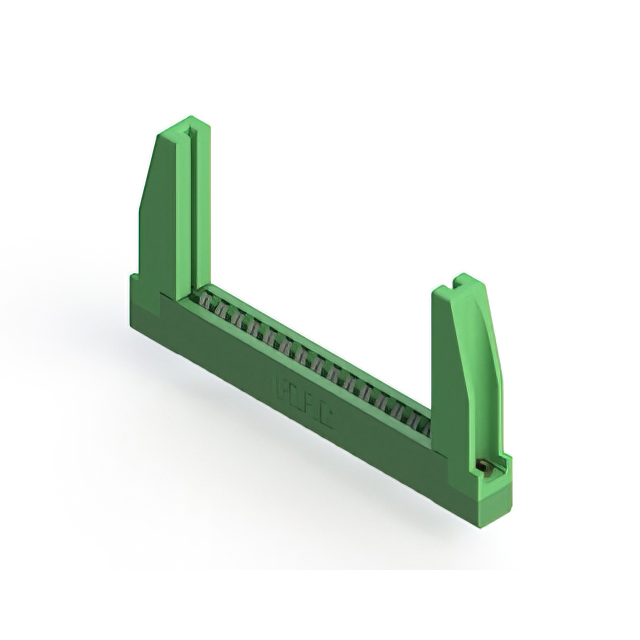

EDAC Inc. 306-016-421-178	1	Polyester Thermoplastic	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening			Panel Mount Through Hole	Female	-40 C	105 ░C			Tin	2	Green	Non Specified - Dual Edge	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	16	Cantilever	Dual	3.96 mm	0.156 in	Card Guides

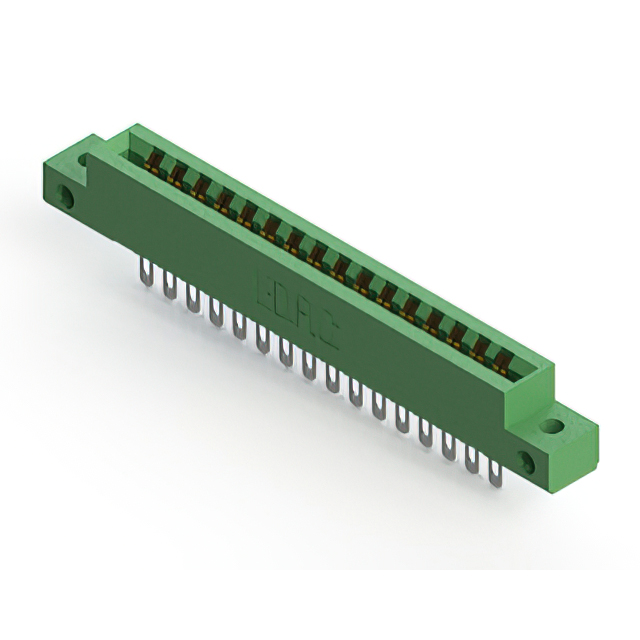

EDAC Inc. 306-016-500-112	1	Polyester Thermoplastic	Copper Alloy	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Panel Mount	Female	-40 C	105 ░C	0.25 Ám	10 Áin	Gold	2	Green	Non Specified - Dual Edge	Solder Eyelet(s)	0.07 in 1.78 mm	0.054 in 1.37 mm	16	Cantilever	Dual	3.96 mm	0.156 in

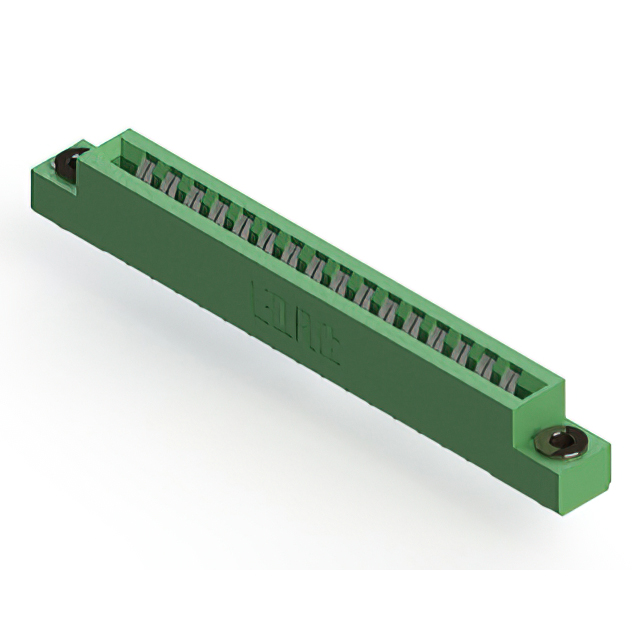

EDAC Inc. 306-016-421-103	1	Polyester Thermoplastic	Copper Alloy	Floating Bobbin Flush Mount	0.116 "	2.95 mm	Panel Mount Through Hole	Female	-40 C	105 ░C			Tin	2	Green	Non Specified - Dual Edge	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	16	Cantilever	Dual	3.96 mm	0.156 in
EDAC Inc. 306-016-400-108	1	Polyester Thermoplastic	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening			Panel Mount	Female	-40 C	105 ░C			Tin	2	Green	Non Specified - Dual Edge	Solder Eyelet(s)	0.07 in 1.78 mm	0.054 in 1.37 mm	16	Cantilever	Dual	3.96 mm	0.156 in

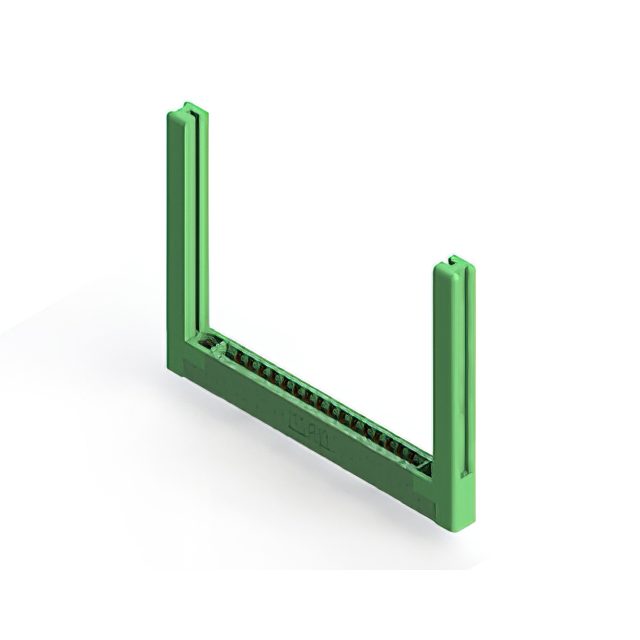

EDAC Inc. 306-016-521-158	1	Polyester Thermoplastic	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening			Panel Mount Through Hole	Female	-40 C	105 ░C	0.25 Ám	10 Áin	Gold	2	Green	Non Specified - Dual Edge	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	16	Cantilever	Dual	3.96 mm	0.156 in	Card Guides
EDAC Inc. 306-016-520-101	1	Polyester Thermoplastic	Copper Alloy				Through Hole	Female	-40 C	105 ░C	0.25 Ám	10 Áin	Gold	2	Green	Non Specified - Dual Edge	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	16	Cantilever	Dual	3.96 mm	0.156 in

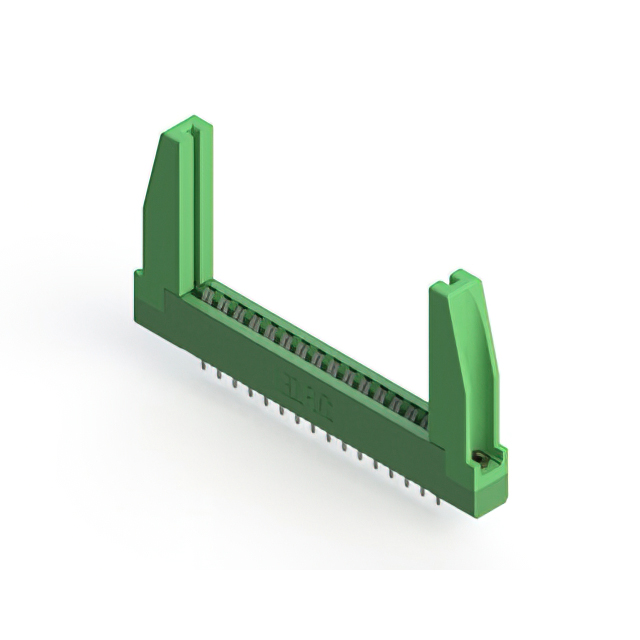

EDAC Inc. 306-016-420-178	1	Polyester Thermoplastic	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening			Panel Mount Through Hole	Female	-40 C	105 ░C			Tin	2	Green	Non Specified - Dual Edge	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	16	Cantilever	Dual	3.96 mm	0.156 in	Card Guides

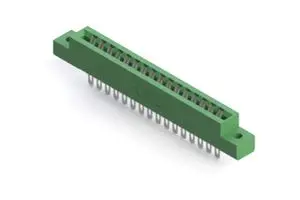

EDAC Inc. 306-016-400-102	1	Polyester Thermoplastic	Copper Alloy	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Panel Mount	Female	-40 C	105 ░C			Tin	2	Green	Non Specified - Dual Edge	Solder Eyelet(s)	0.07 in 1.78 mm	0.054 in 1.37 mm	16	Cantilever	Dual	3.96 mm	0.156 in
EDAC Inc. 306-016-421-168	1	Polyester Thermoplastic	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening			Panel Mount Through Hole	Female	-40 C	105 ░C			Tin	2	Green	Non Specified - Dual Edge	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	16	Cantilever	Dual	3.96 mm	0.156 in	Card Guides
