23C21E Series
Manufacturer: Rosenberger
Beta
⌘K

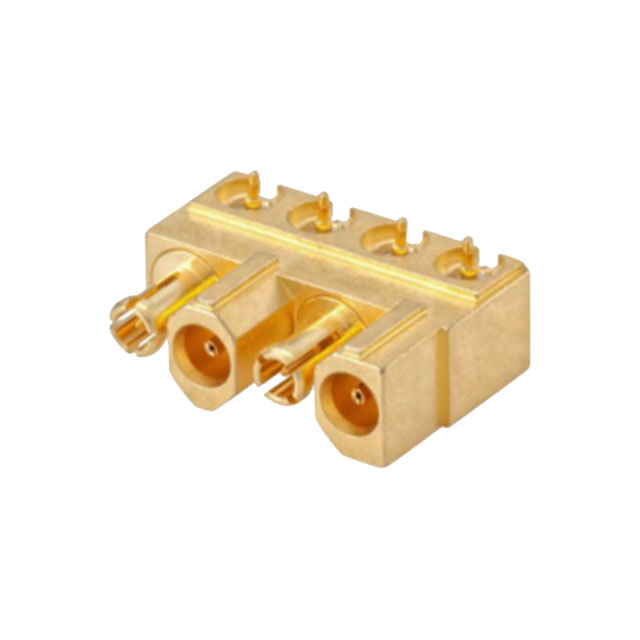

CONN MINICOAX 4PORT RA 50OHM SMD
| Part | Voltage Rating | Center Contact Plating | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Mating Cycles | Body Material | Body Finish | Fastening Type | Impedance | Connector Style | Frequency - Max [Max] | Connector Type | Mounting Type | Contact Termination | Shield Termination | Number of Ports | Center Contact Material | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 500 V | Gold | 125 °C | -40 C | Polytetrafluoroethylene (PTFE) | 500 | Brass | Gold | Snap-On | 50 Ohms | Miniature Coaxial | 20 GHz | Jack Female Socket (2) Plug Male Pin (2) | Surface Mount Right Angle Through Hole | Solder | Solder | 4 | Beryllium Copper | Gold |
