M2018S2 Series

Catalog

SWITCH TOGGLE SPDT 6A 125V

Part	Actuator Material	Electrical Life	Voltage Rating - AC	Actuator Type	Voltage Rating - DC	Actuator Length	Features	Bushing Thread	Switch Function	Panel Cutout Dimensions [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Mounting Type	Termination Style	Current Rating (Amps)	Illumination	Ingress Protection	Actuator Length [x]

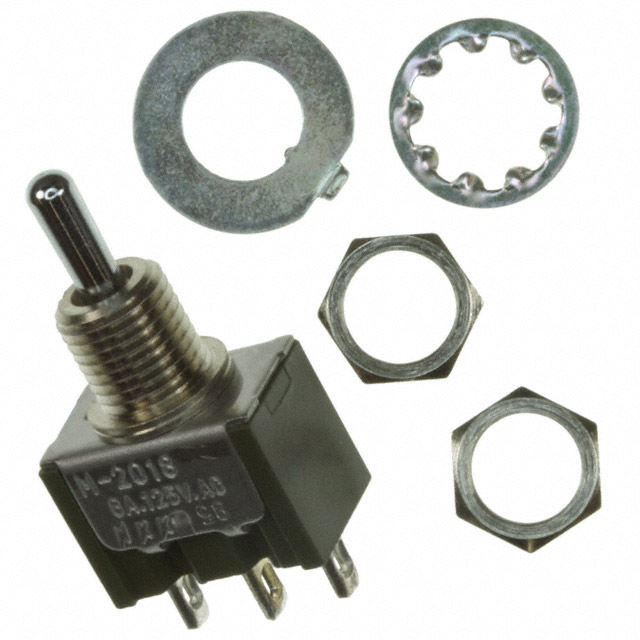

NKK Switches M2018S2A1W01	Brass Chrome Plated	25000 Steps	125 V	Standard Round	30 V	6.86 mm	Epoxy Sealed Terminals	1/4-40	Mom-Off-Mom	6.5 mm	85 °C	-30 ░C	SPDT	Panel Mount	Solder Lug	3 A 6 A	Non-Illuminated
NKK Switches M2018S2D3G01	Brass Chrome Plated	50000 Cycles	28 V	Standard Round	28 V		Epoxy Sealed Terminals	1/4-40	Mom-Off-Mom	6.5 mm	85 °C	-30 ░C	SPDT	Panel Mount	Solder Lug	0.4 VA	Non-Illuminated	IP67 - Dust Tight Waterproof	5.08 mm

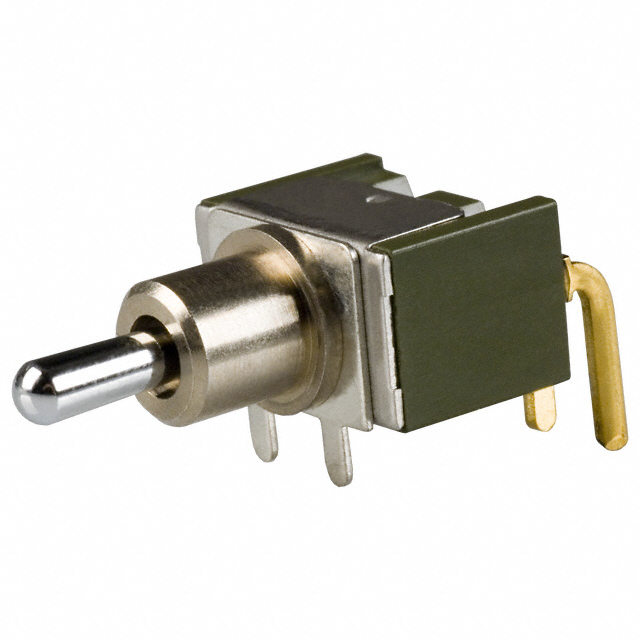

NKK Switches M2018S2A2G30	Brass Chrome Plated	50000 Cycles	28 V	Standard Round	28 V	6.86 mm	Epoxy Sealed Terminals	Unthreaded	Mom-Off-Mom	6.5 mm	85 °C	-30 ░C	SPDT	Right Angle Through Hole	PC Pin	0.4 VA	Non-Illuminated
