G8X Series
Manufacturer: Kycon, Inc.
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

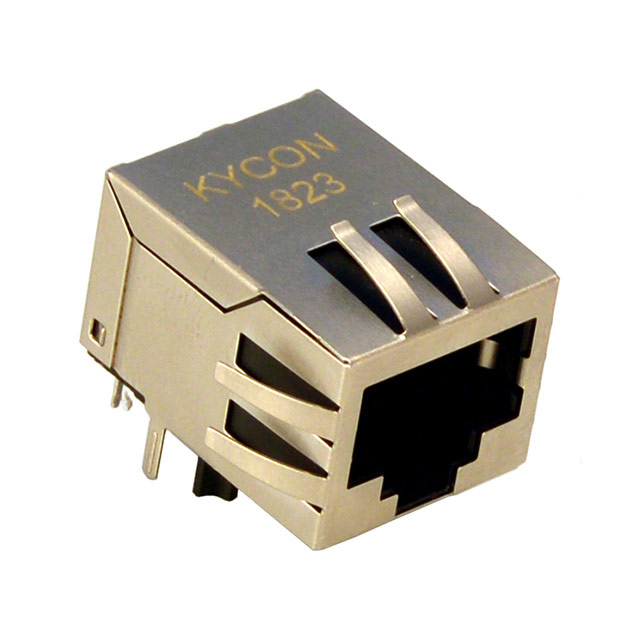

CONN JACK 1PORT PCB
| Part | Tab Direction | Number of Ports | Shielding | Height Above Board | Contact Material | Operating Temperature (Min) | Operating Temperature (Max) | Number of Rows | LED Color | Number of Cores per Jack | Contact Finish | Connector Type | Mounting Type | Orientation Angle | Orientation Direction | Termination | Features | Applications | Shield Material | Contact Finish Thickness | Housing Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Kycon, Inc. | Down | 1 | EMI Finger Shielded | 0.53 in | Phosphor Bronze | -40 °C | 85 °C | 1 | Does Not Contain LED | 4 | Gold | RJ45 | Through Hole | 90 ° | Right | Solder | Board Guide | 10/100 Base-T | Brass | 6 µin | PBT Polybutylene Terephthalate |
