3101-1 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN PC PIN CIRC .040DIA TINLEAD
| Part | Length - Above Flange | Length - Above Flange [x] | Insulation | Contact Finish | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Length - Overall [x] | Length - Overall [x] | Board Thickness | Board Thickness | Terminal Style | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Type | Length - Below Flange [x] | Length - Below Flange [x] | Termination | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Terminal Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

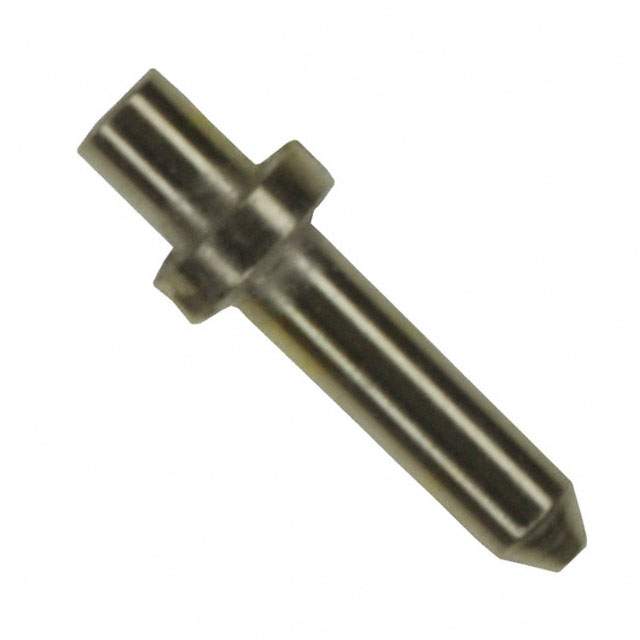

 Mill-Max Manufacturing Corp. | 3.81 mm | 0.15 in | Non-Insulated | Tin-Lead | 1.77 mm | 0.07 in | 200 Áin | 5.08 Ám | Brass Alloy | 5.61 mm | 0.221 in | 0.79 mm | 0.031 in | Single End | 0.043 in | 1.09 mm | Through Hole | 0.051 " | 1.3 mm | Swage | 0.04 in | 1.02 mm | PC Pin |

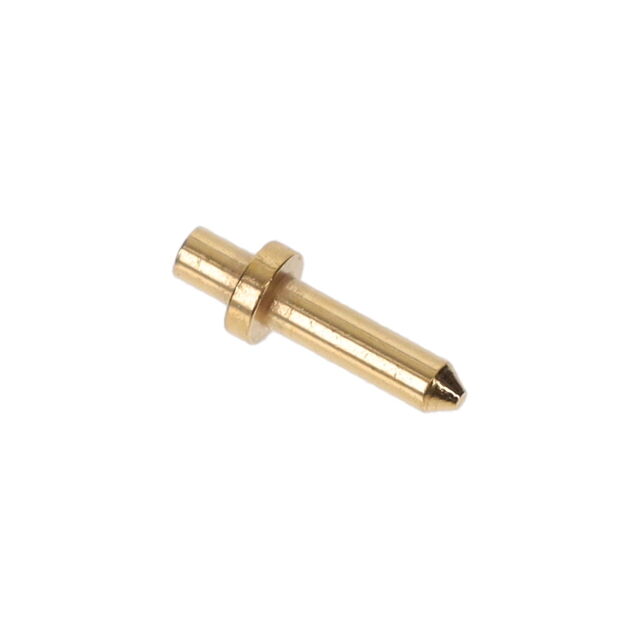

 Mill-Max Manufacturing Corp. | 3.81 mm | 0.15 in | Non-Insulated | Gold | 1.77 mm | 0.07 in | 50 µin | 1.27 µm | Brass Alloy | 5.61 mm | 0.221 in | 0.79 mm | 0.031 in | Single End | 0.043 in | 1.09 mm | Through Hole | 0.051 " | 1.3 mm | Swage | 0.04 in | 1.02 mm | PC Pin |

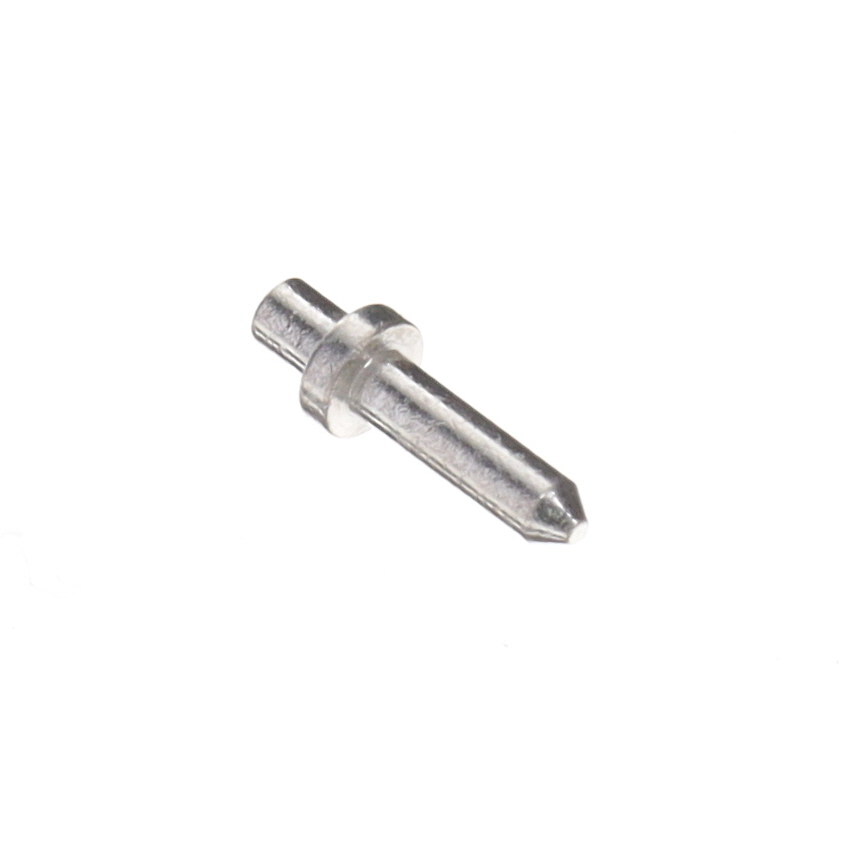

 Mill-Max Manufacturing Corp. | 3.81 mm | 0.15 in | Non-Insulated | Tin | 1.78 mm | 0.07 in | 200 Áin | 5.08 Ám | Brass | 5.61 mm | 0.221 in | 0.79 mm | 0.031 in | Single End | 0.043 in | 1.09 mm | Through Hole | 0.051 " | 1.3 mm | Swage | 0.04 in | 1.02 mm | PC Pin |
 Mill-Max Manufacturing Corp. | 3.81 mm | 0.15 in | Non-Insulated | Gold | 1.77 mm | 0.07 in | 20 µin | 0.51 µm | Brass Alloy | 5.61 mm | 0.221 in | 0.79 mm | 0.031 in | Single End | 0.043 in | 1.09 mm | Through Hole | 0.051 " | 1.3 mm | Swage | 0.04 in | 1.02 mm | PC Pin |
Mill-Max Manufacturing Corp. | 3.81 mm | 0.15 in | Non-Insulated | Gold | 1.77 mm | 0.07 in | 10 Áin | 0.25 Ám | Brass Alloy | 5.61 mm | 0.221 in | 0.79 mm | 0.031 in | Single End | 0.043 in | 1.09 mm | Through Hole | 0.051 " | 1.3 mm | Swage | 0.04 in | 1.02 mm | PC Pin |
