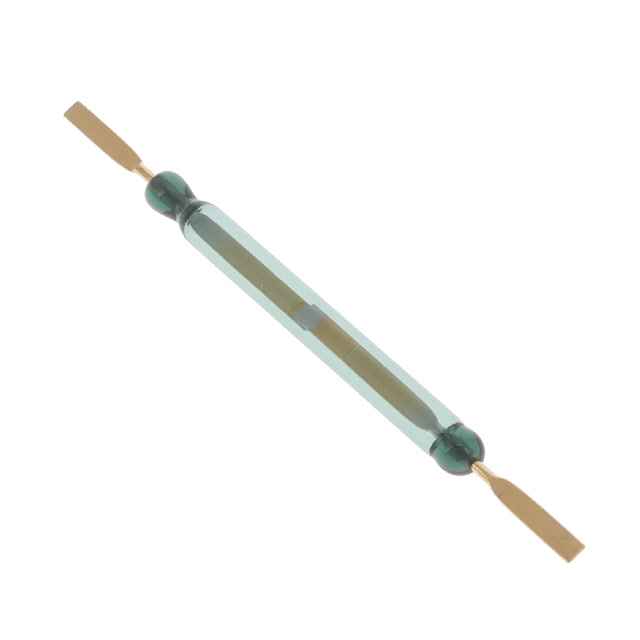

GC1513 Series
Manufacturer: Comus International
Beta
⌘K
SWITCH REED SPST-NO 3A 1500V
| Part | Release Time | Current - Carry | Capacitance | Type | Size - Body [diameter] | Size - Body [x] | Size - Body [diameter] | Size - Body [x] | Voltage - Switching DC | Voltage - Switching AC | Power - Rated | Length - Overall [x] | Length - Overall [x] | Mounting Type | Current - Switching | Operating Temperature [Max] | Operating Temperature [Min] | Release Range | Operate Time | Operate Range [Max] | Operate Range [Min] | Circuit | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Comus International | 0.2 ms | 5 A | 0.8 pF | Glass Body Reed | 5.4 mm | 52 mm | 0.213 " | 2.047 " | 1500 V | 1500 V | 120 W | 3.11 in | 79 mm | Surface Mount | 3 A | 125 °C | -40 C | 30 AT | 4 ms | 85 AT | 80 | SPST-NO | Axial Flat |
Comus International | 0.2 ms | 5 A | 0.8 pF | Glass Body Reed | 5.4 mm | 52 mm | 0.213 " | 2.047 " | 1500 V | 1500 V | 120 W | 3.11 in | 79 mm | Surface Mount | 3 A | 125 °C | -40 C | 30 AT | 4 ms | 70 AT | 65 | SPST-NO | Axial Flat |
Comus International | 0.2 ms | 5 A | 0.8 pF | Glass Body Reed | 5.4 mm | 52 mm | 0.213 " | 2.047 " | 1500 V | 1500 V | 120 W | 3.11 in | 79 mm | Surface Mount | 3 A | 125 °C | -40 C | 30 AT | 4 ms | 75 AT | 70 AT | SPST-NO | Axial Flat |
