305-084 Series

Manufacturer: EDAC Inc.

Catalog

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 84 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Part	Material - Insulation	Termination Rows [custom]	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Positions/Bay/Row	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Contact Finish	Card Type	Termination	Number of Rows [custom]	Card Thickness [Max]	Card Thickness [Min]	Number of Positions [custom]	Pitch	Pitch	Read Out	Contact Material	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Color	Features

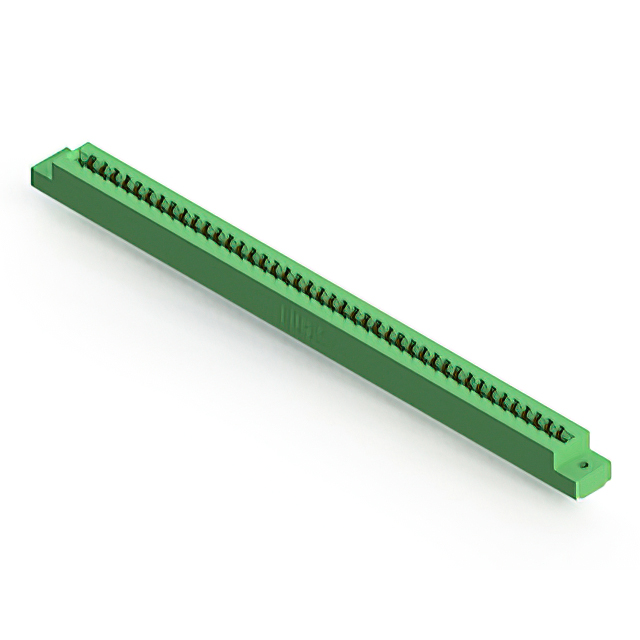

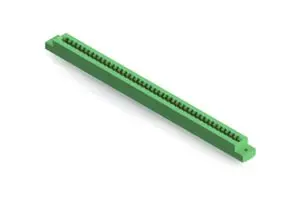

EDAC Inc. 305-084-521-202	Polyester Thermoplastic	2	Female	-40 C	105 ░C	Panel Mount Through Hole	42	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	Gold	Non Specified - Dual Edge	Solder	2	0.07 in 1.78 mm	0.054 in 1.37 mm	84	3.96 mm	0.156 in	Dual	Copper Alloy	Semi Bellows	0.25 Ám	10 Áin	Green

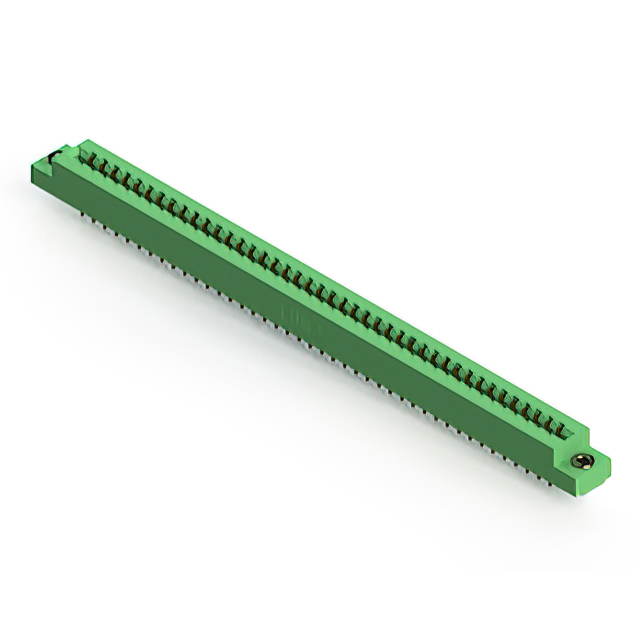

EDAC Inc. 305-084-556-203	Polyester Thermoplastic	2	Female	-40 C	105 ░C	Board Edge Straddle Mount	42	Floating Bobbin Flush Mount	2.95 mm	0.116 "	Gold	Non Specified - Dual Edge	Solder	2	0.07 in 1.78 mm	0.054 in 1.37 mm	84	3.96 mm	0.156 in	Dual	Copper Alloy	Semi Bellows	0.25 Ám	10 Áin	Green	Card Extender

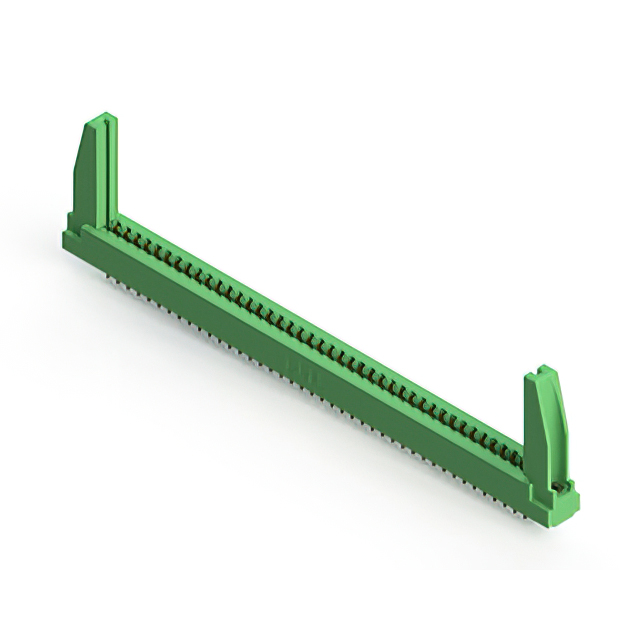

EDAC Inc. 305-084-556-578	Polyester Thermoplastic	2	Female	-40 C	105 ░C	Board Edge Straddle Mount	42	4-40 Flush Mount Threaded Insert Top Opening			Gold	Non Specified - Dual Edge	Solder	2	0.07 in 1.78 mm	0.054 in 1.37 mm	84	3.96 mm	0.156 in	Dual	Copper Alloy	Semi Bellows	0.25 Ám	10 Áin	Green	Card Extender Card Guides

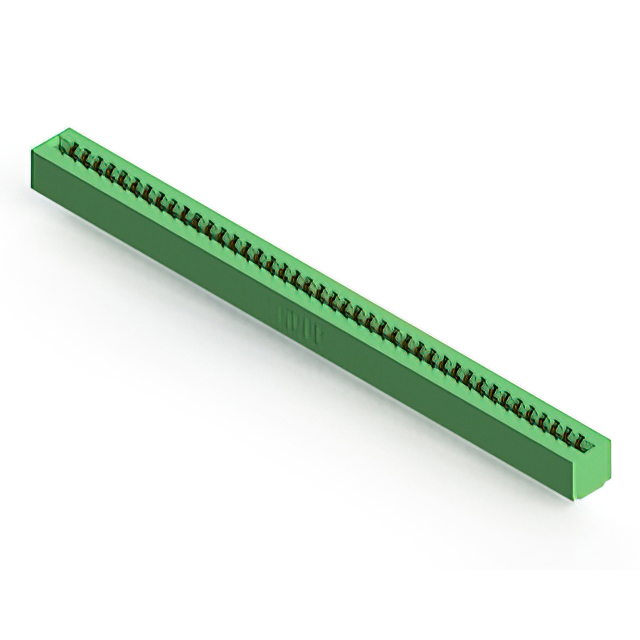

EDAC Inc. 305-084-521-201	Polyester Thermoplastic	2	Female	-40 C	105 ░C	Through Hole	42				Gold	Non Specified - Dual Edge	Solder	2	0.07 in 1.78 mm	0.054 in 1.37 mm	84	3.96 mm	0.156 in	Dual	Copper Alloy	Semi Bellows	0.25 Ám	10 Áin	Green
EDAC Inc. 305-084-520-568	Polyester Thermoplastic	2	Female	-40 C	105 ░C	Panel Mount Through Hole	42	4-40 Flush Mount Threaded Insert Top Opening			Gold	Non Specified - Dual Edge	Solder	2	0.07 in 1.78 mm	0.054 in 1.37 mm	84	3.96 mm	0.156 in	Dual	Copper Alloy	Semi Bellows	0.25 Ám	10 Áin	Green
EDAC Inc. 305-084-555-258	Polyester Thermoplastic	2	Female	-40 C	105 ░C	Board Edge Straddle Mount	42	4-40 Flush Mount Threaded Insert Top Opening			Gold	Non Specified - Dual Edge	Solder	2	0.07 in 1.78 mm	0.054 in 1.37 mm	84	3.96 mm	0.156 in	Dual	Copper Alloy	Semi Bellows	0.25 Ám	10 Áin	Green	Card Extender Card Guides

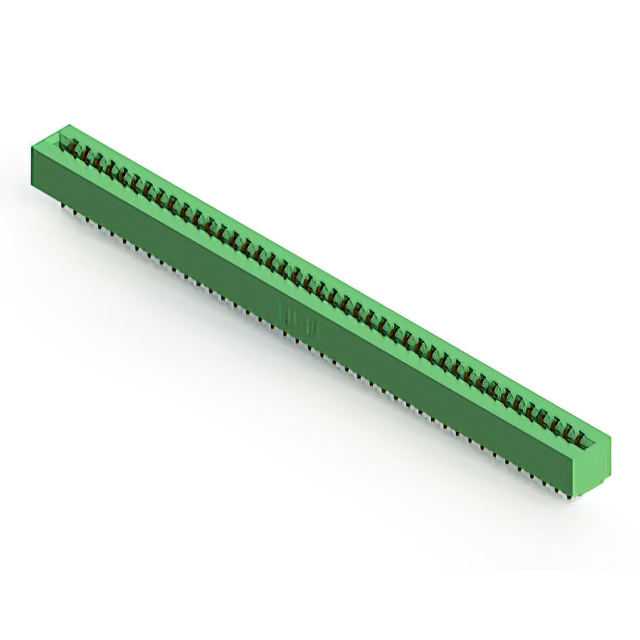

EDAC Inc. 305-084-556-501	Polyester Thermoplastic	2	Female	-40 C	105 ░C	Board Edge Straddle Mount	42				Gold	Non Specified - Dual Edge	Solder	2	0.07 in 1.78 mm	0.054 in 1.37 mm	84	3.96 mm	0.156 in	Dual	Copper Alloy	Semi Bellows	0.25 Ám	10 Áin	Green	Card Extender

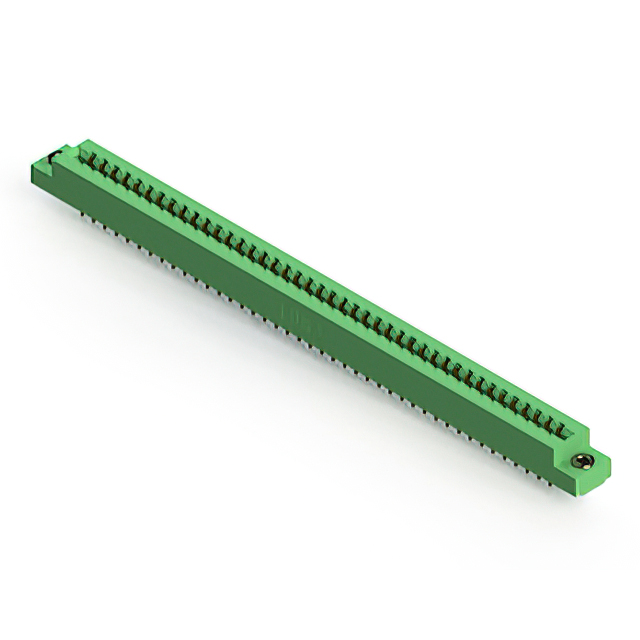

EDAC Inc. 305-084-556-503	Polyester Thermoplastic	2	Female	-40 C	105 ░C	Board Edge Straddle Mount	42	Floating Bobbin Flush Mount	2.95 mm	0.116 "	Gold	Non Specified - Dual Edge	Solder	2	0.07 in 1.78 mm	0.054 in 1.37 mm	84	3.96 mm	0.156 in	Dual	Copper Alloy	Semi Bellows	0.25 Ám	10 Áin	Green	Card Extender

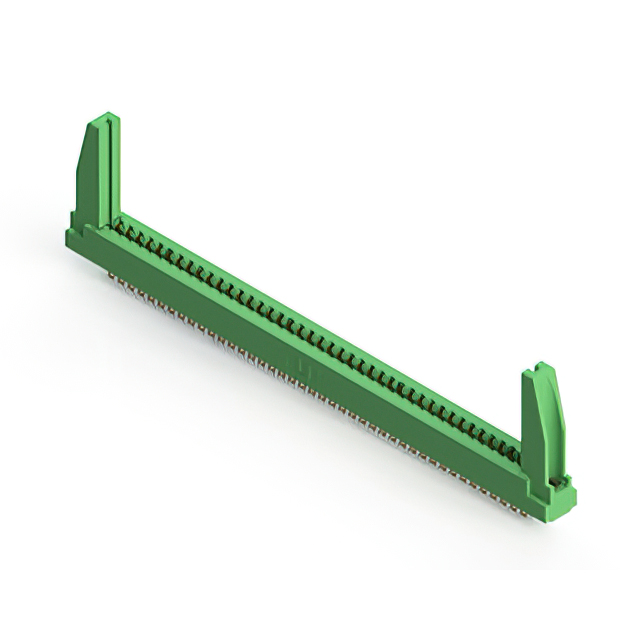

EDAC Inc. 305-084-555-578	Polyester Thermoplastic	2	Female	-40 C	105 ░C	Board Edge Straddle Mount	42	4-40 Flush Mount Threaded Insert Top Opening			Gold	Non Specified - Dual Edge	Solder	2	0.07 in 1.78 mm	0.054 in 1.37 mm	84	3.96 mm	0.156 in	Dual	Copper Alloy	Semi Bellows	0.25 Ám	10 Áin	Green	Card Extender Card Guides

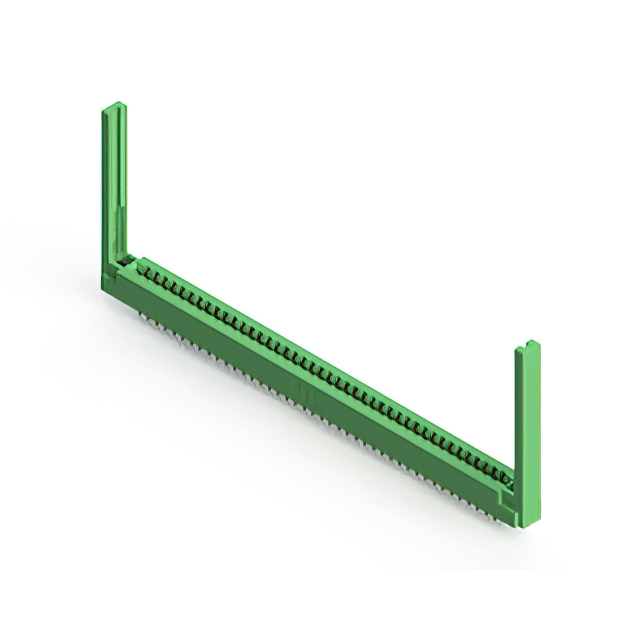

EDAC Inc. 305-084-556-268	Polyester Thermoplastic	2	Female	-40 C	105 ░C	Board Edge Straddle Mount	42	4-40 Flush Mount Threaded Insert Top Opening			Gold	Non Specified - Dual Edge	Solder	2	0.07 in 1.78 mm	0.054 in 1.37 mm	84	3.96 mm	0.156 in	Dual	Copper Alloy	Semi Bellows	0.25 Ám	10 Áin	Green	Card Extender Card Guides
