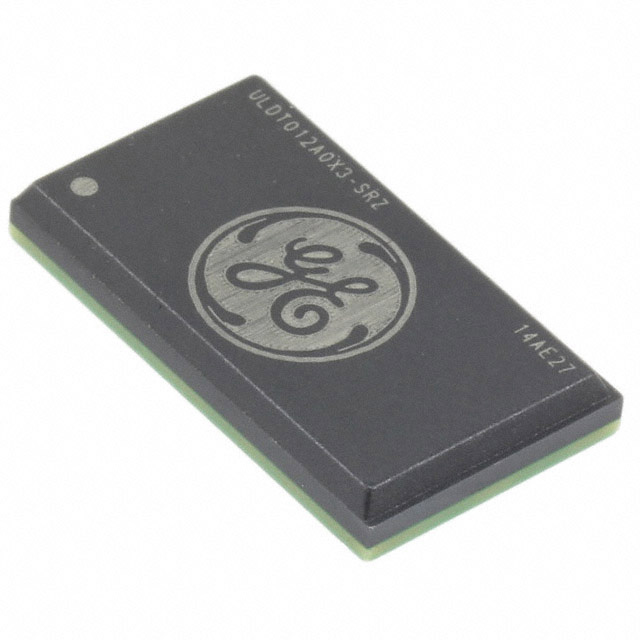

ULDT012 Series
Manufacturer: OmniOn Power™
Beta
⌘K
DC DC CONVERTER 0.45-5.5V
| Part | Package / Case | Current - Output (Max) [Max] | Voltage - Input (Min) [Min] | Mounting Type | Efficiency | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Control Features | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Applications | Type | Voltage - Input (Max) [Max] | Features | Voltage - Output 1 [Min] | Voltage - Output 1 [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 OmniOn Power™ | 16-SMD Module | 12 A | 3 V | Surface Mount | 92 % | 1 | 85 °C | -40 C | Active Low Enable | 0.8 " | 0.12 " | 0.45 in | 20.3 mm | 11.4 mm | 3 mm | ITE (Commercial) | Non-Isolated PoL Module Digital | 14.4 V | OCP OTP Remote On/Off SCP UVLO | 0.45 V | 5.5 V |
OmniOn Power™ | 16-SMD Module | 12 A | 3 V | Surface Mount | 92 % | 1 | 85 °C | -40 C | Active Low Enable | 0.8 " | 0.12 " | 0.45 in | 20.3 mm | 11.4 mm | 3 mm | ITE (Commercial) | Non-Isolated PoL Module Digital | 14.4 V | OCP OTP Remote On/Off SCP UVLO | 0.45 V | 5.5 V |
