S-5725 Series

Catalog

MAGNETIC SWITCH LATCH SNT-4A

Part	Technology	Voltage - Supply [Max]	Voltage - Supply [Min]	Output Type	Function	Package / Case	Current - Output (Max) [Max]	Test Condition	Polarization	Sensing Range [custom]	Sensing Range [custom]	Current - Supply (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Supplier Device Package	Sensing Range
ABLIC Inc. S-5725HNBH0-I4T1U	Hall Effect	5.5 V	2.7 V	Open Drain	Latch	4-SMD Flat Leads	2 mA	25 °C	South Pole	-2.7 mT	2.7 mT	20 µA	85 C	-40 ¯C	Surface Mount	SNT-4A

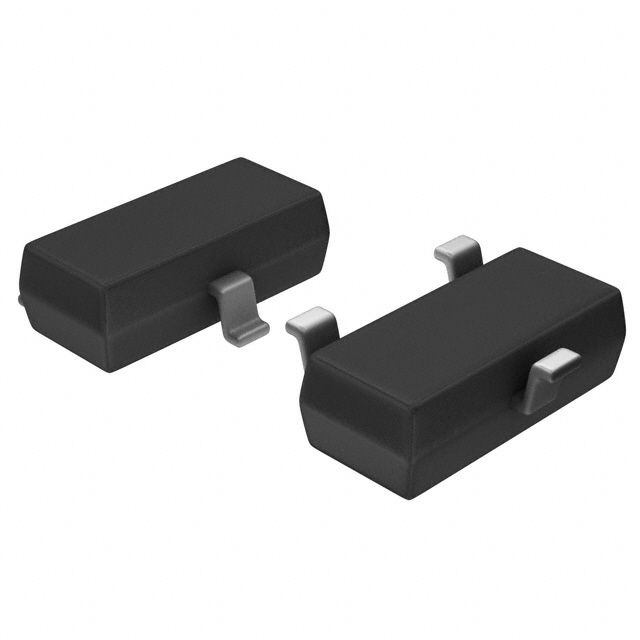

ABLIC Inc. S-5725CNBL1-M3T1U	Hall Effect	5.5 V	2.7 V	Open Drain	Latch	SC-59 SOT-23-3 TO-236-3	2 mA	25 °C	South Pole	-4 mT	4 mT	20 µA	85 C	-40 ¯C	Surface Mount	SOT-23-3
ABLIC Inc. S-5725ENBH3-I4T1U	Hall Effect	5.5 V	2.7 V	Open Drain	Latch	4-SMD Flat Leads	2 mA	25 °C	South Pole			2 mA	85 C	-40 ¯C	Surface Mount	SNT-4A	-8.5 mT 8.5 mT
ABLIC Inc. S-5725CCBL9-M3T1U	Hall Effect	5.5 V	2.7 V	Push-Pull	Latch	SC-59 SOT-23-3 TO-236-3	2 mA	25 °C	South Pole	-1.5 mT	1.5 mT	20 µA	85 C	-40 ¯C	Surface Mount	SOT-23-3
ABLIC Inc. S-5725CNBL9-M3T1U	Hall Effect	5.5 V	2.7 V	Open Drain	Latch	SC-59 SOT-23-3 TO-236-3	2 mA	25 °C	South Pole	-1.5 mT	1.5 mT	20 µA	85 C	-40 ¯C	Surface Mount	SOT-23-3
ABLIC Inc. S-5725ENBH1-M3T1U	Hall Effect	5.5 V	2.7 V	Open Drain	Latch	SC-59 SOT-23-3 TO-236-3	2 mA	25 °C	South Pole	-4 mT	4 mT	2 mA	85 °C	-40 C	Surface Mount	SOT-23-3
ABLIC Inc. S-5725ECBL0-M3T1U	Hall Effect	5.5 V	2.7 V	Push-Pull	Latch	SC-59 SOT-23-3 TO-236-3	2 mA	25 °C	South Pole	-2.7 mT	2.7 mT	2 mA	85 C	-40 ¯C	Surface Mount	SOT-23-3
ABLIC Inc. S-5725ECBH0-I4T1U	Hall Effect	5.5 V	2.7 V	Push-Pull	Latch	4-SMD Flat Leads	2 mA	25 °C	South Pole	-2.7 mT	2.7 mT	2 mA	85 C	-40 ¯C	Surface Mount	SNT-4A
ABLIC Inc. S-5725ECBL9-M3T1U	Hall Effect	5.5 V	2.7 V	Push-Pull	Latch	SC-59 SOT-23-3 TO-236-3	2 mA	25 °C	South Pole	-1.5 mT	1.5 mT	2 mA	85 °C	-40 C	Surface Mount	SOT-23-3
ABLIC Inc. S-5725ENBL0-M3T1U	Hall Effect	5.5 V	2.7 V	Open Drain	Latch	SC-59 SOT-23-3 TO-236-3	2 mA	25 °C	South Pole	-2.7 mT	2.7 mT	2 mA	85 C	-40 ¯C	Surface Mount	SOT-23-3
