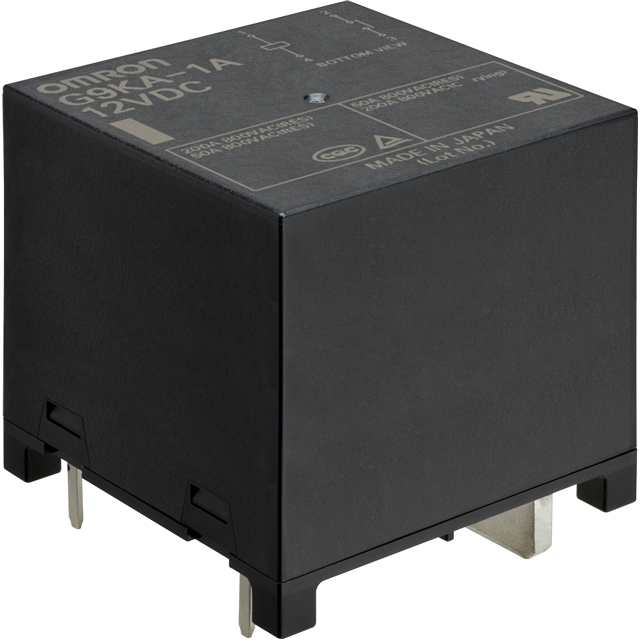

G9KA-1 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE SPST 200A 12V
| Part | Load - Max Switching | Operate Time | Coil Resistance | Switching Voltage | Contact Material | Coil Voltage | Coil Insulation | Contact Rating (Current) | Contact Form | Operating Temperature [Max] | Operating Temperature [Min] | Switching Voltage | Switching Voltage | Seal Rating | Mounting Type | Relay Type | Release Time | Termination Style | Coil Type | Coil Current | Must Operate Voltage | Must Release Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 12000 W 208000 VA | 30 ms | 28.8 Ohms | 800 VAC | Cadmium Free Silver Alloy | 12 VDC | Class F | 200 A 260 A | SPST-NO (1 Form A) | 85 °C | -40 °C | 800 VAC | 60 VDC | Sealed - Flux Protection | Through Hole | General Purpose | 10 ms | PC Pin | Non Latching | 417 mA | 9 VDC | 0.6 VDC |
Omron Electronics Inc-EMC Div | 30 ms | 115.2 Ohms | 800 VAC | Cadmium Free Silver Alloy | 24 VDC | 200 A | SPST-NO (1 Form A) | 85 °C | -40 °C | Through Hole | General Purpose | 10 ms | PC Pin | Non Latching | 208 mA | 18 VDC | 1.2 VDC |
