2423324 Series

Catalog

HEADER 2P YELLOW HCI 4.0 PITCH

Part	Termination	Number of Rows	Insulation Material	Shrouding	Number of Positions	Fastening Type	Style	Contact Material	Pitch - Mating	Pitch - Mating	Insulation Color	Connector Type	Material Flammability Rating	Contact Type	Insulation Height	Insulation Height	Contact Shape	Mounting Type	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]

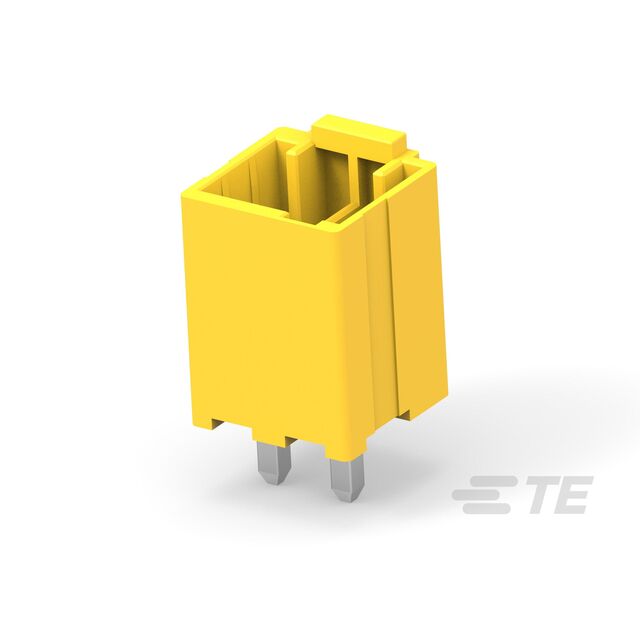

TE Connectivity Raychem Cable Protection 2-2423324-2	Solder	1	Polybutylene Terephthalate (PBT)	Shrouded - 4 Wall	2	Push-Pull	Board to Cable/Wire	Copper Alloy	0.157 "	4 mm	Yellow	Header	UL94 V-0	Male Pin	12.35 mm	0.486 in	Square	Through Hole	All	0.146 in	3.7 mm

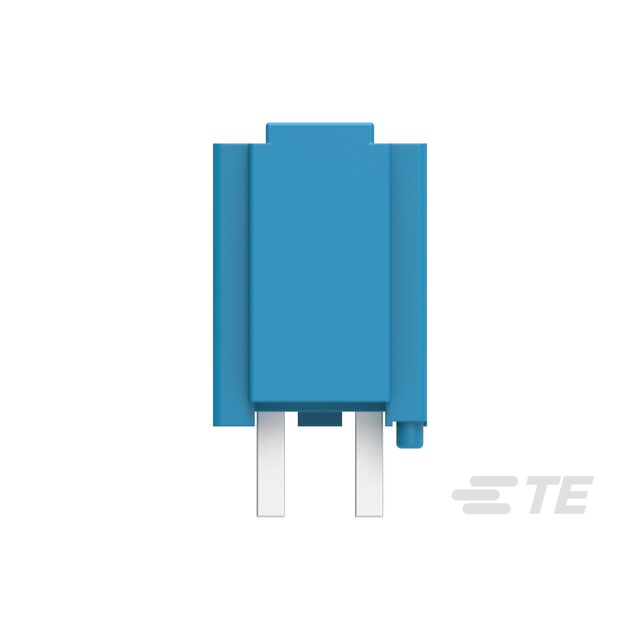

TE Connectivity Raychem Cable Protection 2423324-2	Solder	1	Polybutylene Terephthalate (PBT)	Shrouded - 4 Wall	2	Push-Pull	Board to Cable/Wire	Copper Alloy	0.157 "	4 mm	Blue	Header	UL94 V-0	Male Pin	12.5 mm	0.492 in	Square	Through Hole	All	0.146 in	3.7 mm

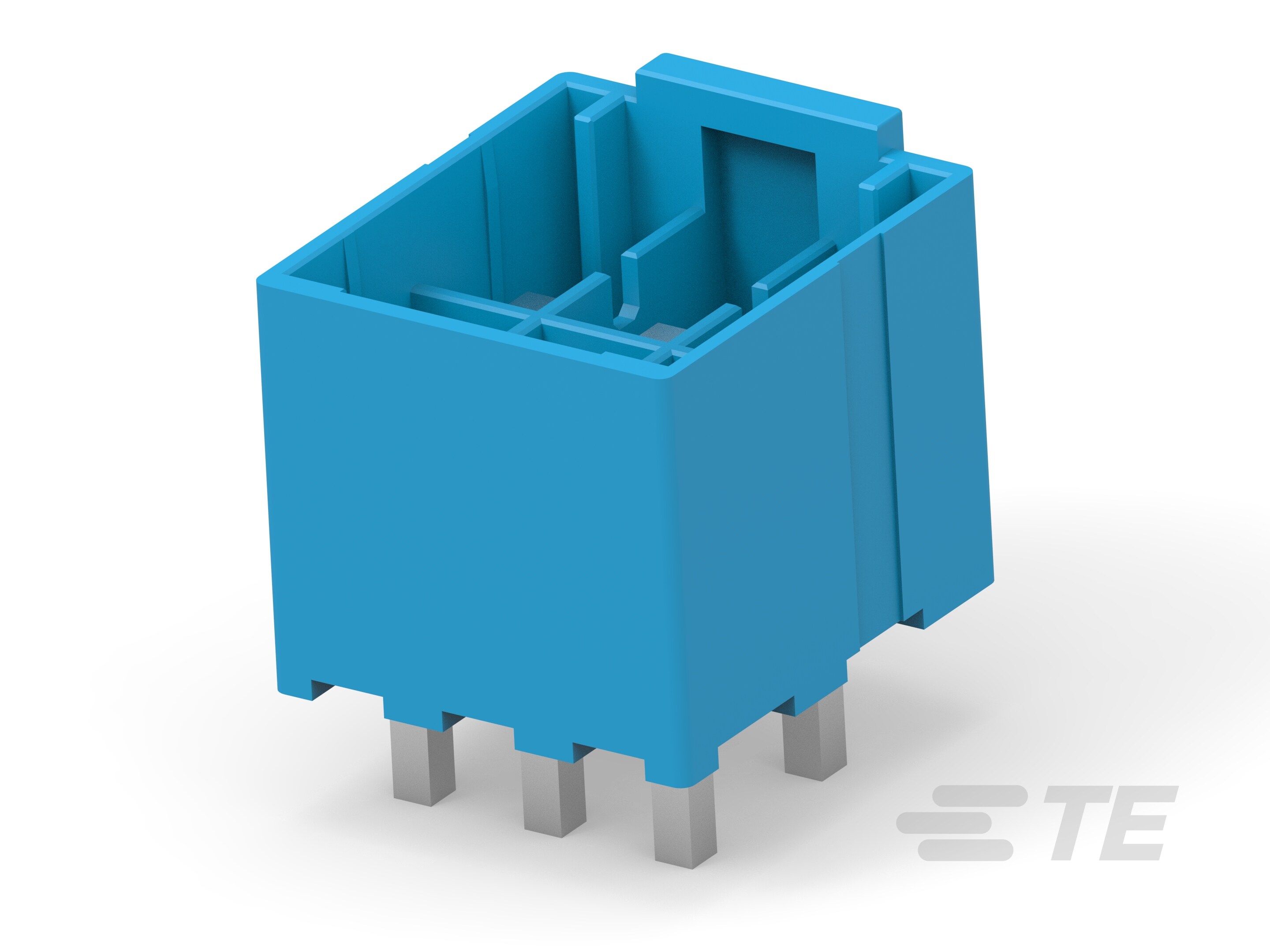

TE Connectivity Raychem Cable Protection 2423324-6	Solder	2	Polybutylene Terephthalate (PBT)	Shrouded - 4 Wall	6	Push-Pull	Board to Cable/Wire	Copper Alloy	0.157 "	4 mm	Blue	Header	UL94 V-0	Male Pin	12.35 mm	0.486 in	Square	Through Hole	All	0.146 in	3.7 mm	0.234 in	5.95 mm

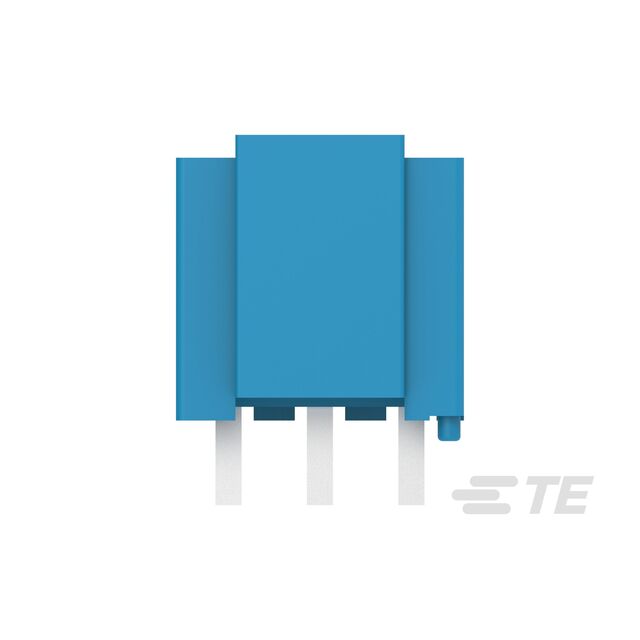

TE Connectivity Raychem Cable Protection 2423324-3	Solder	1	Polybutylene Terephthalate (PBT)	Shrouded - 4 Wall		Push-Pull	Board to Cable/Wire	Copper Alloy	0.157 "	4 mm	Blue	Header	UL94 V-0	Male Pin	12.5 mm	0.492 in	Square	Through Hole	All	0.146 in	3.7 mm
