M4636 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

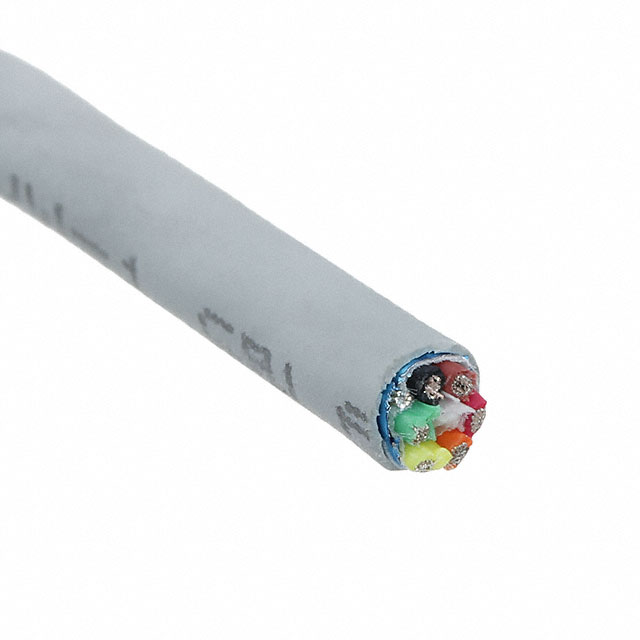

CABLE 6CON 22AWG SLATE SHLD 500'
| Part | Shield Material | Shield Coverage | Shield Type | Cable Type | Wire Gauge | Number of Conductors | Conductor Material | Conductor Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Ratings | Voltage | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Jacket Color | Length | Length | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | Foil | Multi-Conductor | 22 AWG | 6 | Copper Tinned | Poly-Vinyl Chloride (PVC) | 80 °C | -20 ░C | 0.813 mm | 0.032 in | 0.222 in 5.64 mm | UL Style 2464 | 300 VDC | 28 AWG | 7 | Poly-Vinyl Chloride (PVC) | Slate | 152.4 m | 500 ft | Drain Wire Rip Cord |
