0354-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT .040-.050 HEX

Part	Operating Temperature [Min]	Operating Temperature [Max]	Length - Overall	Length - Overall	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Termination	Contact Finish Thickness	Contact Finish Thickness	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Material	Socket Depth	Socket Depth	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Finish	Flange Diameter [diameter]	Flange Diameter [diameter]	Tail Type

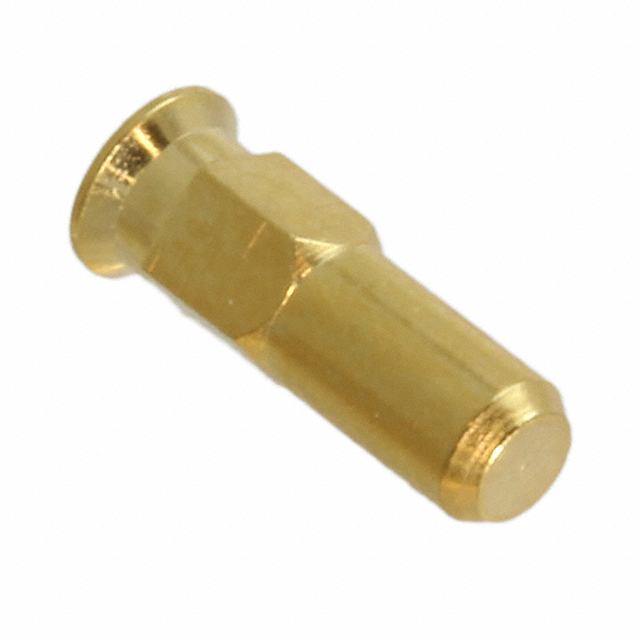

Mill-Max Manufacturing Corp. 0354-0-15-15-02-27-10-0	-55 C	125 °C	0.29 in	7.37 mm	0.04 in	1.27 mm	1.02 mm	0.05 in	Hex Press-Fit	30 Áin	0.76 Ám	0.104 in	2.64 mm	Beryllium Copper	6.6 mm	0.26 "	0.068 "	1.73 mm	Gold	0.119 in	3.02 mm	No Tail
Mill-Max Manufacturing Corp. 0354-0-15-80-02-27-10-0	-55 C	125 °C	0.29 in	7.37 mm	0.04 in	1.27 mm	1.02 mm	0.05 in	Hex Press-Fit	30 Áin	0.76 Ám	0.104 in	2.64 mm	Beryllium Copper	6.6 mm	0.26 "	0.068 "	1.73 mm	Gold	0.119 in	3.02 mm	No Tail
Mill-Max Manufacturing Corp. 0354-0-15-80-02-14-10-0	-55 C	125 °C	0.29 in	7.37 mm	0.04 in	1.27 mm	1.02 mm	0.05 in	Hex Press-Fit	10 Áin	0.25 Ám	0.104 in	2.64 mm	Beryllium Copper	6.6 mm	0.26 "	0.068 "	1.73 mm	Gold	0.119 in	3.02 mm	No Tail

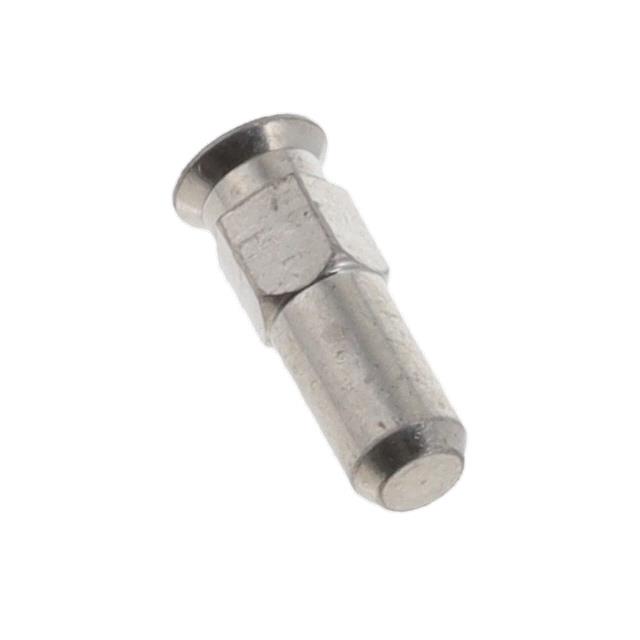

Mill-Max Manufacturing Corp. 0354-0-15-01-02-01-10-0	-55 C	125 °C	0.29 in	7.37 mm	0.04 in	1.27 mm	1.02 mm	0.05 in	Hex Press-Fit	200 Áin	5.08 Ám	0.104 in	2.64 mm	Beryllium Copper	6.6 mm	0.26 "	0.068 "	1.73 mm	Tin-Lead	0.119 in	3.02 mm	No Tail

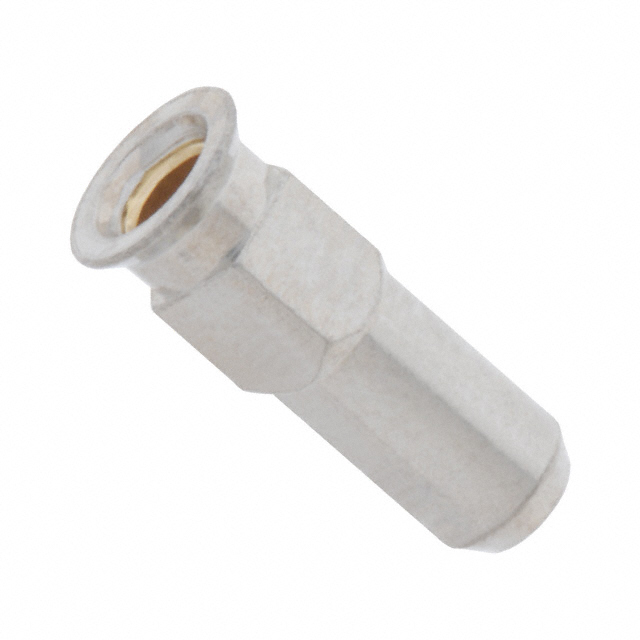

Mill-Max Manufacturing Corp. 0354-0-15-01-02-27-10-0	-55 C	125 °C	0.29 in	7.37 mm	0.04 in	1.27 mm	1.02 mm	0.05 in	Hex Press-Fit	30 Áin	0.76 Ám	0.104 in	2.64 mm	Beryllium Copper	6.6 mm	0.26 "	0.068 "	1.73 mm	Gold	0.119 in	3.02 mm	No Tail
