PE4546 Series
Manufacturer: Pasternack
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
SMA(F) END LAUNCH MSTRP 0.005"
| Part | Dielectric Material | Body Material | Operating Temperature (Max) | Operating Temperature (Min) | Center Contact Plating | Mating Cycles | Shield Termination | Features | Mounting Type | Frequency - Max | Connector Style | Number of Ports | Fastening Type | Connector Type | Center Contact Material | Contact Termination | Housing Color | Impedance | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

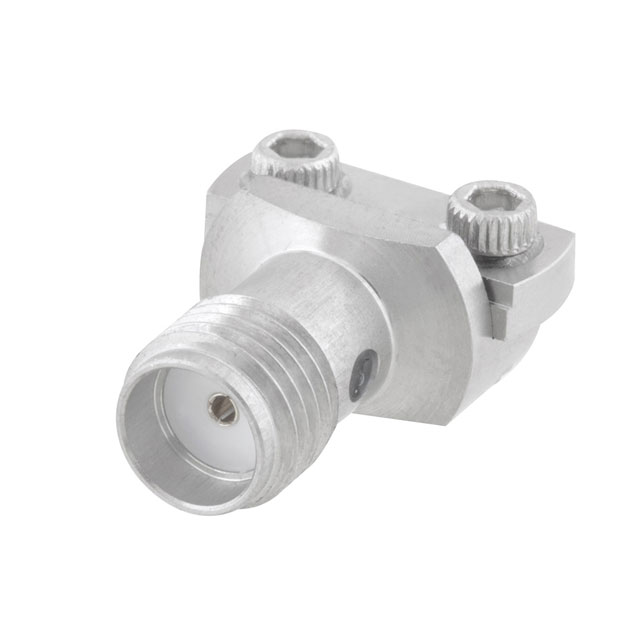

 Pasternack | Polytetrafluoroethylene (PTFE) | Stainless Steel | 125 °C | -40 °C | Gold | 500 cycles | Clamp | Mounting Hardware | Board Edge End Launch | 26.5 GHz | SMA | 1 | Threaded | Female Socket Recepture | Beryllium Copper | Solder | Silver | 50 Ohm | |

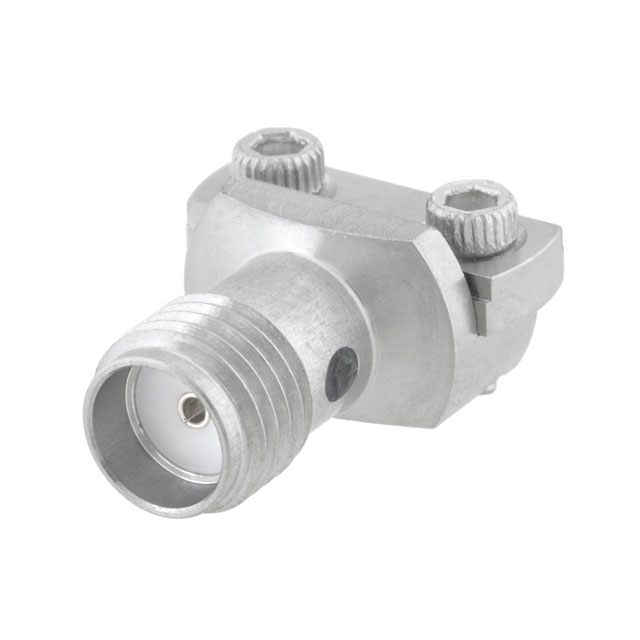

 Pasternack | Polytetrafluoroethylene (PTFE) | Stainless Steel | 125 °C | -40 °C | Gold | 500 cycles | Clamp | Mounting Hardware | Board Edge End Launch | 26.5 GHz | SMA | 1 | Threaded | Female Socket Recepture | Beryllium Copper | Solder | Silver | 50 Ohm | |

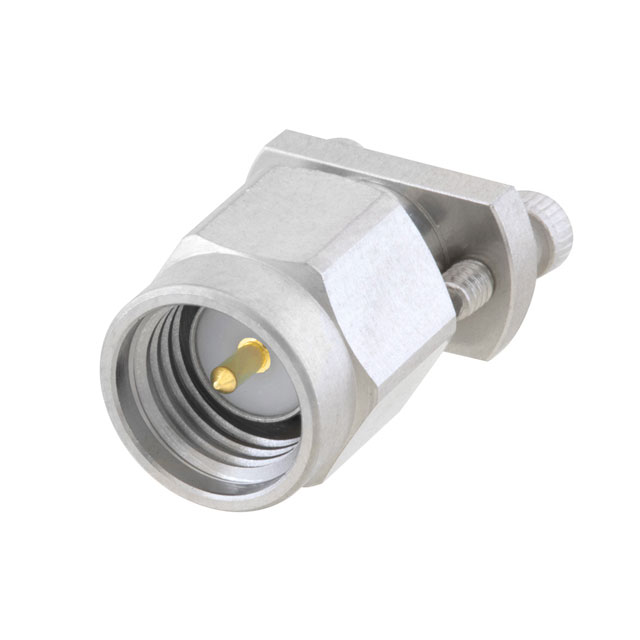

 Pasternack | Polytetrafluoroethylene (PTFE) | Stainless Steel | Gold | 500 cycles | Screw | Mounting Hardware | Panel Mount | 26.5 GHz | SMA | 1 | Threaded | Male Pin Receptacle | Brass | Clamp | Silver | 50 Ohm | Flange |
