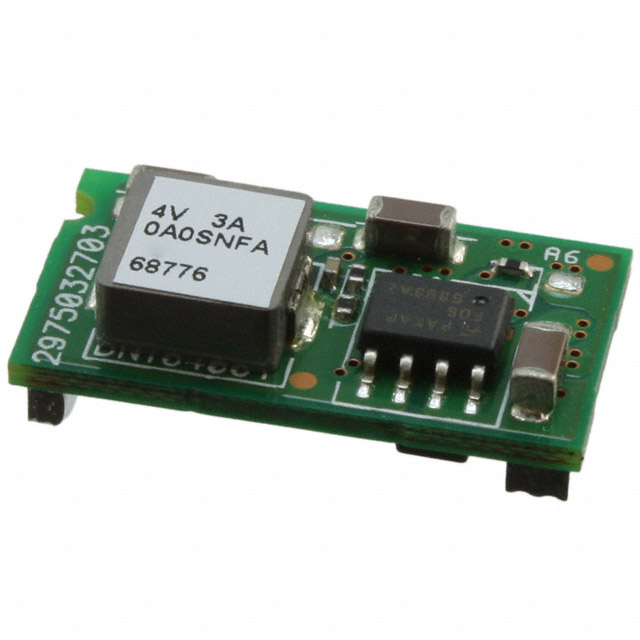

DNT04S0 Series
Manufacturer: Delta Electronics
Beta
⌘K
DC DC CONVERTER 0.75-3.63V 10W
| Part | Voltage - Input (Min) [Min] | Mounting Type | Applications | Features | Current - Output (Max) [Max] | Control Features | Voltage - Output 1 [Min] [custom] | Voltage - Output 1 [Max] [custom] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Operating Temperature [Max] | Operating Temperature [Min] | Type | Number of Outputs | Voltage - Input (Max) [Max] | Package / Case | Power (Watts) | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 2.4 V | Surface Mount | ITE (Commercial) | OCP Remote On/Off UVLO | 3 A | Active Low Enable | 0.75 V | 3.63 V | 6.9 mm | 0.45 in | 20.3 mm | 0.8 " | 0.27 " | 11.4 mm | 85 °C | -40 C | Non-Isolated PoL Module | 1 | 5.5 V | 5-SMD Module | 10 W | 93 % |
 Delta Electronics | 2.4 V | Through Hole | ITE (Commercial) | OCP Remote On/Off UVLO | 3 A | Active Low Enable | 0.75 V | 3.63 V | 10.2 mm | 0.25 in | 22.9 mm | 0.9 in | 0.4 " | 6.3 mm | 85 °C | -40 C | Non-Isolated PoL Module | 1 | 5.5 V | 5-SIP Module | 10 W | 94 % |
