MN18TY Series

Catalog

SWITCH ROCKER MINI FLAT FRAME

Part	Electrical Life	Mechanical Life	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Mounting Type	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Circuit	Termination Style	Voltage Rating - DC	Actuator Type	Switch Function	Actuator Marking	Current Rating (Amps)	Color - Actuator/Cap
NKK Switches MN18TYW01-HH	25000 Steps	50000 Cycles	16 mm	28.5 mm	Flange Panel Mount	125 V	85 °C	-30 ░C	UL	SPDT	Solder Lug	30 V	Paddle	Mom-Off-Mom	No Marking	3 A 6 A
NKK Switches MN18TYW01-HG	25000 Steps	50000 Cycles	16 mm	28.5 mm	Flange Panel Mount	125 V	85 °C	-30 ░C	UL	SPDT	Solder Lug	30 V	Actuator Arm Cap Required	Mom-Off-Mom	No Marking	3 A 6 A	Blue
NKK Switches MN18TYW01-HB	25000 Steps	50000 Cycles	16 mm	28.5 mm	Flange Panel Mount	125 V	85 °C	-30 ░C	UL	SPDT	Solder Lug	30 V	Paddle	Mom-Off-Mom	No Marking	3 A 6 A	White
NKK Switches MN18TYW01-HC	25000 Steps	50000 Cycles	16 mm	28.5 mm	Flange Panel Mount	125 V	85 °C	-30 ░C	UL	SPDT	Solder Lug	30 V	Paddle	Mom-Off-Mom	No Marking	3 A 6 A	Red
NKK Switches MN18TYW03-HC

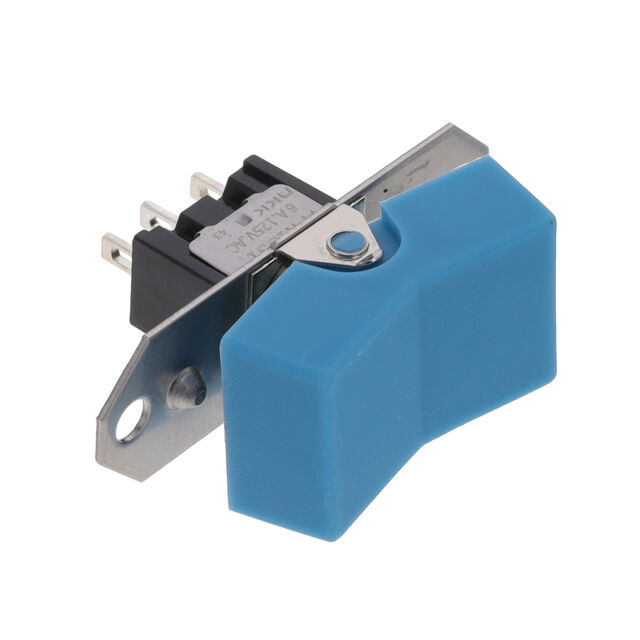

NKK Switches MN18TYW01-JG	25000 Steps	50000 Cycles	16 mm	28.5 mm	Flange Panel Mount	125 V	85 °C	-30 ░C	UL	SPDT	Solder Lug	30 V	Concave	Mom-Off-Mom	No Marking	3 A 6 A	Blue

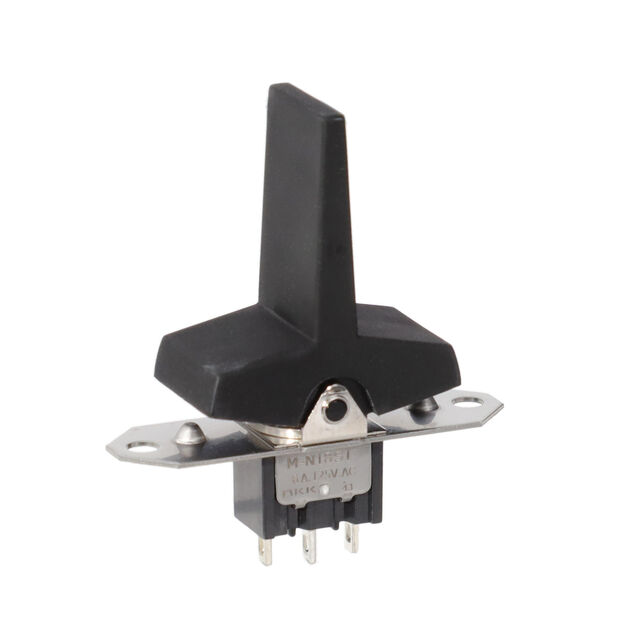

NKK Switches MN18TYW01-HA	25000 Steps	50000 Cycles	16 mm	28.5 mm	Flange Panel Mount	125 V	85 °C	-30 ░C	UL	SPDT	Solder Lug	30 V	Paddle	Mom-Off-Mom	No Marking	3 A 6 A	Black
NKK Switches MN18TYW01	25000 Steps	50000 Cycles	16 mm	28.5 mm	Flange Panel Mount	125 V	85 °C	-30 ░C	UL	SPDT	Solder Lug	30 V	Actuator Arm Cap Required	Mom-Off-Mom	Varies by Cap	3 A 6 A
NKK Switches MN18TYW03-HG
NKK Switches MN18TYW01-JA	25000 Steps	50000 Cycles	16 mm	28.5 mm	Flange Panel Mount	125 V	85 °C	-30 ░C	UL	SPDT	Solder Lug	30 V	Concave	Mom-Off-Mom	No Marking	3 A 6 A	Black
