23C11D Series
Manufacturer: Rosenberger
Beta
⌘K

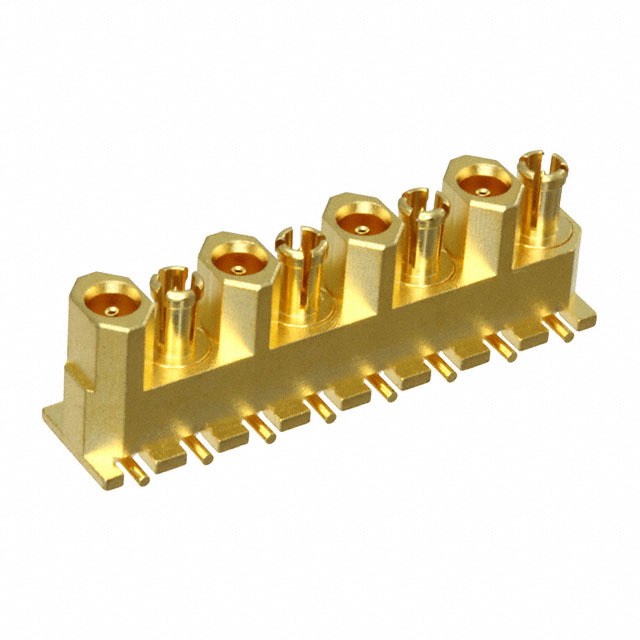

CONN MINICOAX 8PORT ST 50OHM SMD
| Part | Center Contact Plating | Mating Cycles | Voltage Rating | Dielectric Material | Body Material | Operating Temperature [Max] | Operating Temperature [Min] | Body Finish | Number of Ports | Impedance | Contact Termination | Fastening Type | Shield Termination | Connector Style | Frequency - Max [Max] | Mounting Type | Housing Color | Connector Type | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Gold | 500 | 500 V | Polytetrafluoroethylene (PTFE) | Brass | 125 °C | -40 C | Gold | 8 | 50 Ohms | Solder | Snap-On | Solder | Miniature Coaxial | 20 GHz | Surface Mount | Gold | Jack Female Socket (4) Plug Male Pin (4) | Beryllium Copper |
