GZC03 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER SMD 3POS 2.54MM

Part	Mounting Type	Current Rating (Amps)	Material Flammability Rating	Insulation Material	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Contact Finish - Post	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Shrouding	Number of Positions Loaded	Number of Rows	Style	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating	Contact Material	Contact Shape	Pitch - Mating	Pitch - Mating	Contact Finish - Mating

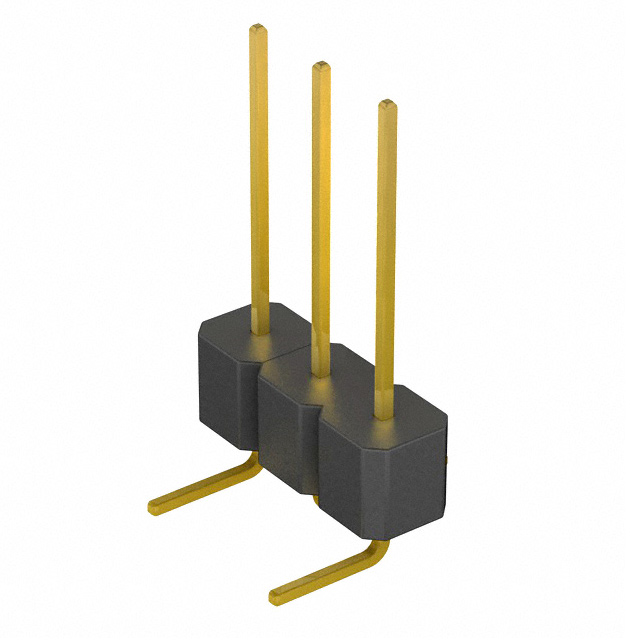

Sullins Connector Solutions GZC03SFBN-M30	Surface Mount	3 A	UL94 V-0	Nylon 9T Polyamide (PA9T)	Header	2.54 µm	100 µin	Black	Push-Pull	-65 ░C	125 °C	600 V	Tin-Lead	Solder	0.25 µm	10 µin	Male Pin	Unshrouded	All	1	Board to Board Cable	0.1 in	2.54 mm	8.08 mm	0.318 in	Phosphor Bronze	Square	0.1 "	2.54 mm	Gold
Sullins Connector Solutions GZC03SGSN-M89	Right Angle Surface Mount	3 A	UL94 V-0	Nylon 9T Polyamide (PA9T)	Header	2.54 µm	100 µin	Black	Push-Pull	-65 ░C	125 °C	600 V	Tin-Lead	Solder	0.25 µm	10 µin	Male Pin	Unshrouded	All	1	Board to Board Cable	0.14 in	3.56 mm	8.08 mm	0.318 in	Phosphor Bronze	Square	0.1 "	2.54 mm	Gold
Sullins Connector Solutions GZC03SBSN-M89	Right Angle Surface Mount	3 A	UL94 V-0	Nylon 9T Polyamide (PA9T)	Header	2.54 µm	100 µin	Black	Push-Pull	-65 ░C	125 °C	600 V	Tin-Lead	Solder	0.25 µm	10 µin	Male Pin	Unshrouded	All	1	Board to Board Cable	0.14 in	3.56 mm	5.84 mm	0.23 in	Phosphor Bronze	Square	0.1 "	2.54 mm	Gold

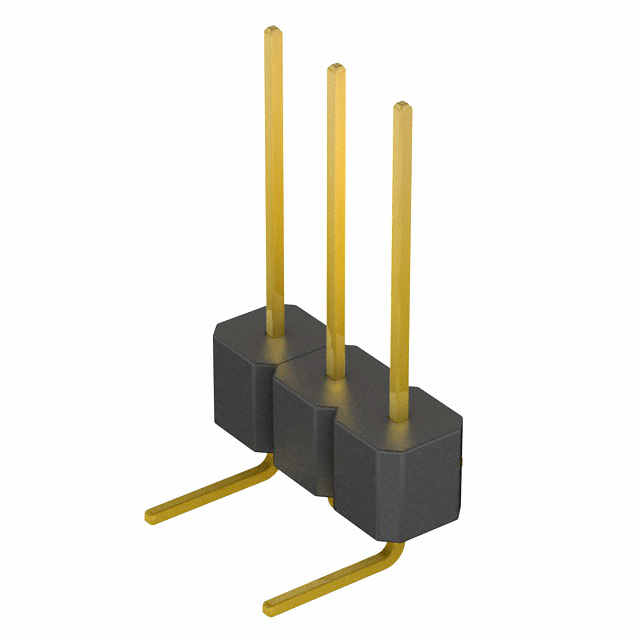

Sullins Connector Solutions GZC03SABN-M30	Surface Mount	3 A	UL94 V-0	Nylon 9T Polyamide (PA9T)	Header	2.54 µm	100 µin	Black	Push-Pull	-65 ░C	125 °C	600 V	Tin-Lead	Solder	0.25 µm	10 µin	Male Pin	Unshrouded	All	1	Board to Board Cable	0.1 in	2.54 mm	5.84 mm	0.23 in	Phosphor Bronze	Square	0.1 "	2.54 mm	Gold
