3241 Series

Catalog

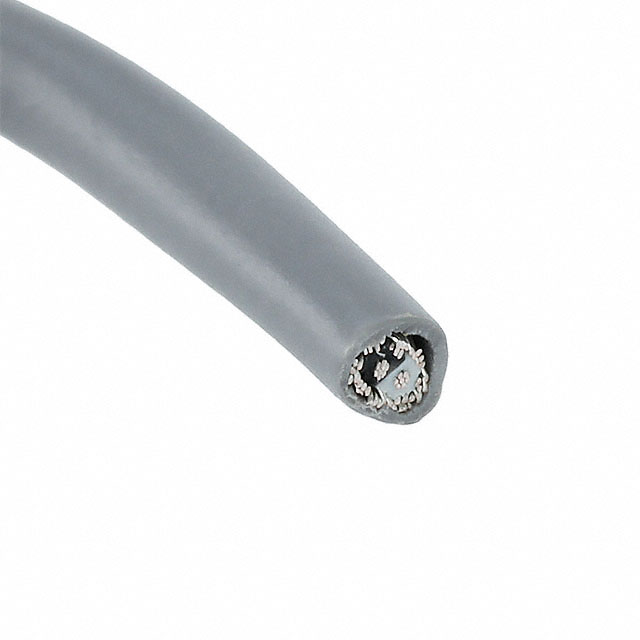

CABLE 2COND 18AWG SHLD 1000'

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Jacket Color	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Shield Coverage	Shield Material	Jacket (Insulation) Material	Shield Type	Length	Length	Cable Type	Usage	Operating Temperature [Max]	Operating Temperature [Min]	Wire Gauge	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Number of Conductors	Length [x]	Length [x]
ALPHA WIRE 3241 SL001	0.219 in	5.56 mm	Copper Tinned	Slate	600 V	19	30 AWG	90 %	Copper Tinned	Poly-Vinyl Chloride (PVC)	Braid	1000 ft	304.8 m	Multi-Conductor	Communication Control	105 ░C	-55 °C	18 AWG	Poly-Vinyl Chloride (PVC)	0.021 in	0.533 mm	2
ALPHA WIRE 3241 SL002	0.219 in	5.56 mm	Copper Tinned	Slate	600 V	19	30 AWG	90 %	Copper Tinned	Poly-Vinyl Chloride (PVC)	Braid			Multi-Conductor	Communication Control	105 ░C	-55 °C	18 AWG	Poly-Vinyl Chloride (PVC)	0.021 in	0.533 mm	2	500 '	152.4 m
