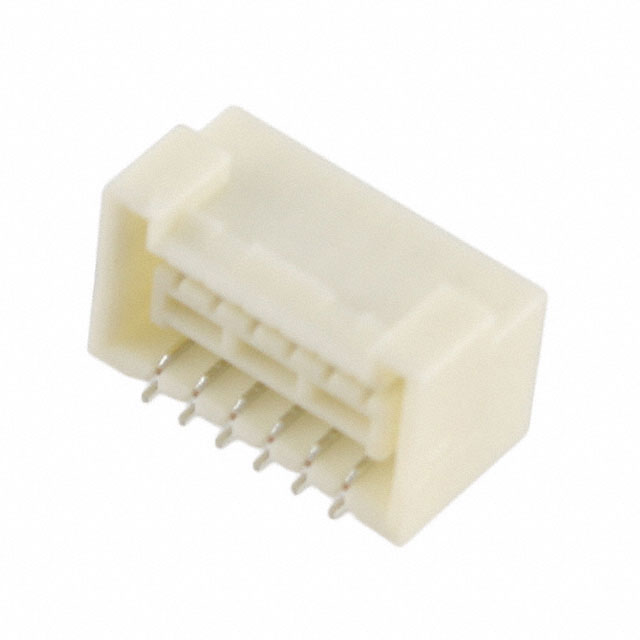

SM12B-ZP Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 12POS 1.5MM
| Part | Shrouding | Contact Material | Insulation Material | Material Flammability Rating | Insulation Height | Insulation Height | Mounting Type | Contact Finish - Post | Contact Type | Termination | Connector Type | Number of Positions | Number of Rows [custom] | Style | Current Rating (Amps) | Insulation Color | Voltage Rating | Fastening Type | Contact Shape | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Shrouded - 4 Wall | Copper Alloy | Nylon Polyamide (PA) | UL94 V-0 | 7.85 mm | 0.309 in | Right Angle Surface Mount | Tin | Outer Shroud Contact | Solder | Header | 12 | 2 | Board to Cable/Wire | 2 A | Natural | 100 V | Locking Ramp | Rectangular | 85 °C | -25 °C | All |
