JB5CS05F Series
Manufacturer: JAE Electronics
Beta
⌘K

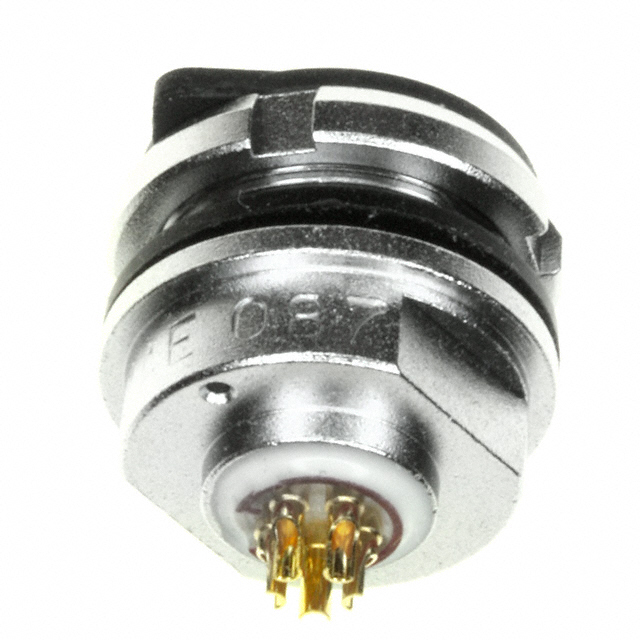

CONN RCPT FMALE 5POS SOLDER CUP
| Part | Shielding | Voltage Rating | Shell Finish | Number of Positions | Primary Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Features | Mounting Type | Mounting Feature | Fastening Type | Insert Material | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Contact Finish - Mating | Ingress Protection | Shell Material | Orientation | Current Rating (Amps) | Color | Connector Type | Contact Material | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | Shielded | 320 VAC | Chromium | 5 | Metal | 0.76 Ám | 30 Áin | Dust Cap | Panel Mount | Bulkhead - Front Side Nut | Push-Pull | Synthetic Resin | -55 C | 85 °C | Medical Telecommunications Test & Measurement | Gold | IP68 - Dust Tight Waterproof | Copper Alloy | N (Normal) | 3 A | Silver | Receptacle Female Sockets | Copper Alloy | S |
