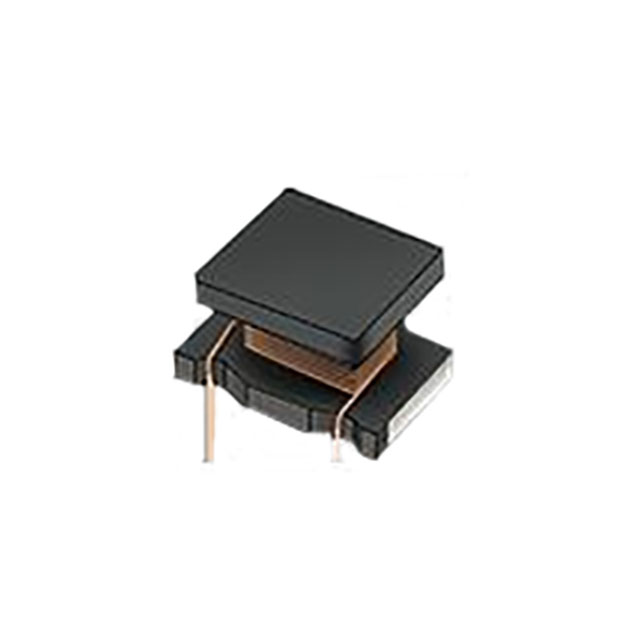

LQH32PN Series

Manufacturer: Murata Power Solutions Inc.

Catalog

FIXED IND 47UH 310MA 2.14OHM SMD

Part	Current Rating (Amps)	Material - Core	Supplier Device Package	Supplier Device Package	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Inductance	Inductance Frequency - Test	Tolerance	DC Resistance (DCR) [Max]	Shielding	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Type	Frequency - Self Resonant	Supplier Device Package	Current - Saturation (Isat)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	DC Resistance (DCR)
Murata Power Solutions Inc. LQH32PN470MN0L	0.31 A	Ferrite	1210	3225	3.2 mm	2.5 mm	0.126 in	0.098 in	47 µH	1 MHz	20 %	2.14 Ohm	Shielded	Surface Mount	0.087 in	2.2 mm	85 °C	-40 °C	Nonstandard	Drum Core Wirewound	11 MHz
Murata Power Solutions Inc. LQH32PN150MNCL	700 mA	Ferrite			3.2 mm	2.5 mm	0.126 in	0.098 in	15 µH	1 MHz	20 %	570 mOhm	Shielded	Surface Mount	0.087 in	2.2 mm	85 °C	-40 °C	Nonstandard	Drum Core Wirewound	20 MHz	1210	800 mA
Murata Power Solutions Inc. LQH32PN150MN0L	0.52 A	Ferrite	1210	3225	3.2 mm	2.5 mm	0.126 in	0.098 in	15 µH	1 MHz	20 %	684 mOhm	Shielded	Surface Mount	0.087 in	2.2 mm	85 °C	-40 °C	Nonstandard	Drum Core Wirewound	20 MHz		600 mA
Murata Power Solutions Inc. LQH32PN1R0NNCL	2.5 A	Ferrite	1210	3225	3.2 mm	2.5 mm	0.126 in	0.098 in	1 µH	1 MHz	30 %	43.2 mOhm	Shielded	Surface Mount	0.087 in	2.2 mm	85 °C	-40 °C	Nonstandard	Drum Core Wirewound	100 MHz		3 A
Murata Power Solutions Inc. LQH32PN6R8NN0L	0.85 A	Ferrite	1210	3225	3.2 mm	2.5 mm	0.126 in	0.098 in	6.8 µH	1 MHz	30 %	288 mOhm	Shielded	Surface Mount			85 °C	-40 °C	Nonstandard	Drum Core Wirewound	40 MHz		850 mA	0.067 in	1.7 mm
Murata Power Solutions Inc. LQH32PN3R3NNCL	1.55 A	Ferrite	1210	3225	3.2 mm	2.5 mm	0.126 in	0.098 in	3.3 µH	1 MHz	30 %		Shielded	Surface Mount	0.087 in	2.2 mm	85 °C	-40 °C	Nonstandard	Drum Core Wirewound	50 MHz		1.9 A			120 mOhm
Murata Power Solutions Inc. LQH32PNR47NNCL	2.9 A	Ferrite	1210	3225	3.2 mm	2.5 mm	0.126 in	0.098 in	470 nH	1 MHz	30 %	28.8 mOhm	Shielded	Surface Mount	0.087 in	2.2 mm	85 °C	-40 °C	Nonstandard	Drum Core Wirewound	100 MHz		4.4 A
Murata Power Solutions Inc. LQH32PN220MNCL	0.55 A	Ferrite	1210	3225	3.2 mm	2.5 mm	0.126 in	0.098 in	22 µH	1 MHz	20 %	822 mOhm	Shielded	Surface Mount	0.087 in	2.2 mm	85 °C	-40 °C	Nonstandard	Drum Core Wirewound	20 MHz		650 mA
Murata Power Solutions Inc. LQH32PN100MNCL	900 mA	Ferrite	1210	3225	3.2 mm	2.5 mm	0.126 in	0.098 in	10 µH	1 MHz	20 %		Shielded	Surface Mount	0.087 in	2.2 mm	85 °C	-40 °C	Nonstandard	Drum Core Wirewound	30 MHz		1 A			354 mOhm
Murata Power Solutions Inc. LQH32PN1R5NN0L	1.75 A	Ferrite	1210	3225	3.2 mm	2.5 mm	0.126 in	0.098 in	1.5 µH	1 MHz	30 %	68.4 mOhm	Shielded	Surface Mount			85 °C	-40 °C	Nonstandard	Drum Core Wirewound			1.75 A	0.067 in	1.7 mm
