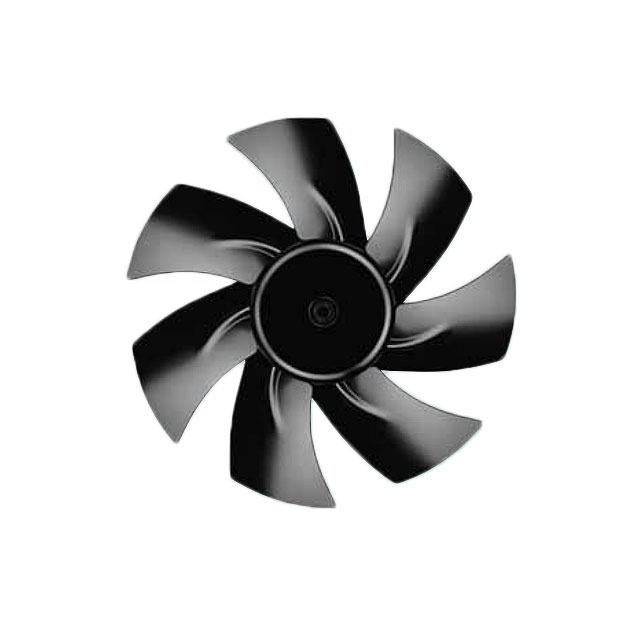

W1G250 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K
EC FANS EC AXIAL FAN, 320X87MM ROUND, 24VDC, 113CFM, FULL ROUND NOZZLE, "A" FLOW, IP42
| Part | Approval Agency | Noise | Static Pressure | Static Pressure | RPM | Size / Dimension | Size / Dimension [diameter] | Fan Type | Ingress Protection | Voltage - Rated | Termination | Features | Power (Watts) | Operating Temperature [Min] | Operating Temperature [Max] | Bearing Type | Current Rating (Amps) | Material - Frame | Material - Blade | Width [x] | Voltage Range [Min] | Voltage Range [Max] | Width [y] | Size / Dimension [y] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | CSA EAC UL | 70 dB(A) | 0.562 in H2O | 140 Pa | 2750 RPM | Round | 320 mm | Tubeaxial | IP42 | 24 VDC | 4 Wire Leads with Splice Terminals | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 105 W | -25 °C | 60 °C | Ball | |||||||||
 ebm-papst Inc. | CE CSA EAC UL VDE | 0.16 in H2O | 40 Pa | 1200 RPM | Round | 315 mm | Tubeaxial | IP55 - Dust Protected Water Resistant | 230 VAC | 3 Wire Leads with Splice Terminals | Thermal Overload Protector (TOP) | 32 W | -30 ░C | 50 °C | Ball | 0.24 A | Polypropylene (PP) | Polyamide (PA) Nylon | 92 mm | ||||||
ebm-papst Inc. | CE CSA EAC UL VDE | 0.16 in H2O | 40 Pa | 1200 RPM | Round | 315 mm | Tubeaxial | IP55 - Dust Protected Water Resistant | 115 VAC | 3 Wire Leads with Splice Terminals | Thermal Overload Protector (TOP) | 32 W | -30 ░C | 50 °C | Ball | 0.47 A | Polypropylene (PP) | Polyamide (PA) Nylon | 92 mm | ||||||
 ebm-papst Inc. | CSA EAC UL | 0.562 in H2O | 140 Pa | 2750 RPM | Tubeaxial | IP42 | 24 VDC | Terminal Block | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 105 W | -25 °C | 60 °C | Ball | 5 A | Aluminum | Steel | 16 VDC | 28 V | 80 mm | 280 mm | 280 mm |
