FAD1-12025 Series

Manufacturer: Qualtek

Catalog

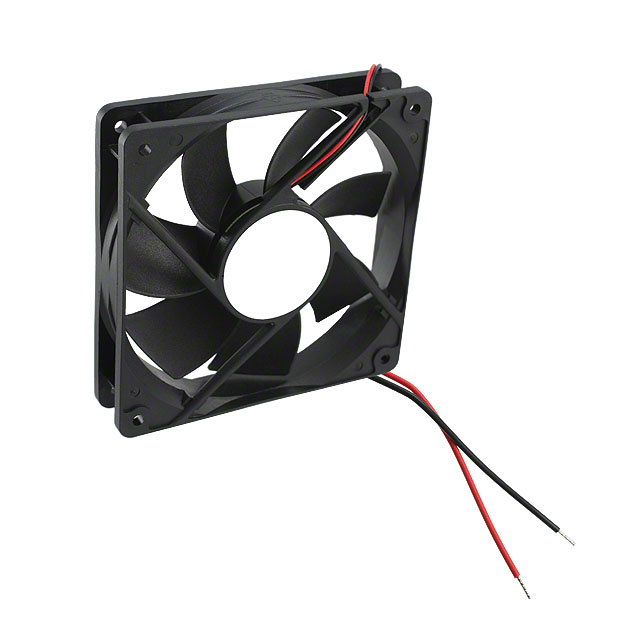

FAN AXIAL 120X25.5MM 12VDC WIRE

Part	Material - Blade	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Air Flow	Air Flow	Fan Type	Voltage - Rated	Power (Watts)	Approval Agency	Bearing Type	Width [y]	Operating Temperature [Max]	Operating Temperature [Min]	RPM	Termination	Weight	Weight	Noise	Static Pressure	Static Pressure	Size / Dimension [z]	Size / Dimension [x]	Current Rating (Amps)
Qualtek FAD1-12025CBMW12	Plastic	10.8 VDC	13.2 VDC	Plastic	81 CFM	2.27 m³/min	Tubeaxial	12 VDC	1.92 W	CE cURus TUV	Ball	25.5 mm	70 °C	-10 °C	2050 RPM	2 Wire Leads	156.04 g	0.344 lb	38 dB(A)	28.1 Pa	0.113 in H2O	120 mm	120 mm
Qualtek FAD1-12025DBMW12	Plastic	21.6 VDC	26.4 VDC	Plastic	81 CFM	2.27 m³/min	Tubeaxial	24 VDC	3.12 W	CE cURus TUV	Ball	25.5 mm	70 °C	-10 °C	2050 RPM	2 Wire Leads	156.04 g	0.344 lb	38 dB(A)	28.1 Pa	0.113 in H2O	120 mm	120 mm
Qualtek FAD1-12025DSJW12	Plastic	21.6 VDC	26.4 VDC	Plastic	99 CFM	2.77 m³/min	Tubeaxial	24 VDC	4.56 W	CE cURus TUV	Sleeve	25.5 mm	60 °C	-10 °C	2500 RPM	2 Wire Leads	156.04 g	0.344 lb	43.3 dB(A)	43.3 Pa	0.174 in H2O	120 mm	120 mm	190 mA
Qualtek FAD1-12025DBHW12	Plastic	21.6 VDC	26.4 VDC	Plastic	87.9 CFM	2.46 mł/min	Tubeaxial	24 VDC	3.12 W	CE cURus TUV	Ball	25.5 mm	70 °C	-10 °C	2200 RPM	2 Wire Leads	156.04 g	0.344 lb	39.1 dB(A)	33.5 Pa	0.134 in H2O	120 mm	120 mm

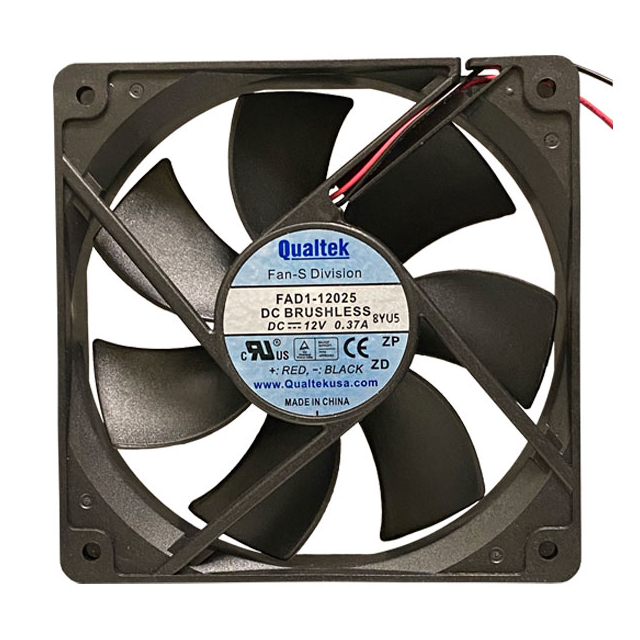

Qualtek FAD1-12025CBLW12					71.8 CFM	2.01 m³/min	Tubeaxial	12 VDC	1.8 W	CE cURus TUV	Ball	25.5 mm	70 °C	-10 °C	1800 RPM	2 Wire Leads	156.04 g	0.344 lb	34.4 dB(A)	23.2 Pa	0.093 in H2O	120 mm	120 mm
Qualtek FAD1-12025CSHW12	Plastic	10.8 VDC	13.2 VDC	Plastic	87.9 CFM	2.46 mł/min	Tubeaxial	12 VDC	3.48 W	CE cURus TUV	Sleeve	25.5 mm	60 °C	-10 °C	2200 RPM	2 Wire Leads	156.04 g	0.344 lb	39.1 dB(A)	33.5 Pa	0.134 in H2O	120 mm	120 mm	0.29 A
