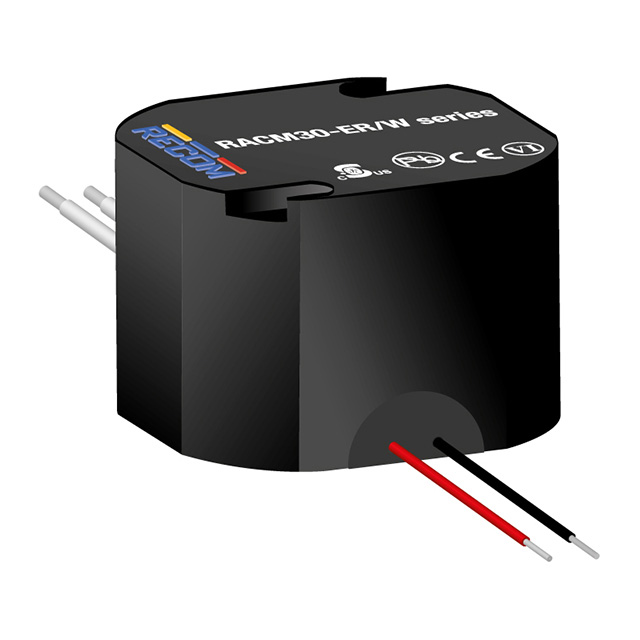

AC/DC Power Modules 30W 90-264Vin 24Vout 1.25A IP68MED
Beta
⌘K
AC/DC Power Modules 30W 90-264Vin 24Vout 1.25A IP68MED
AC/DC Power Modules 30W 90-264Vin 24Vout 1.25A IP68MED
| Part | Number of Outputs | Features | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output 1 | Power (Watts) | Type | Mounting Type | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Efficiency | Voltage - Output 1 | Voltage - Input [Min] | Voltage - Input [Max] | Approval Agency | Applications | Voltage - Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 RECOM Power | 1 | IP68 Universal Input | -20 °C | 70 °C | 1.25 A | 30 W | Enclosed | Chassis Mount | 1.34 in | 53 mm | 51 mm | 2.09 in | 34 mm | 2 in | 89 % | 24 V | 90 VAC | 264 VAC | CE | Household Appliances ITE (Commercial) Medical | 4.4 kV |
