1094-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

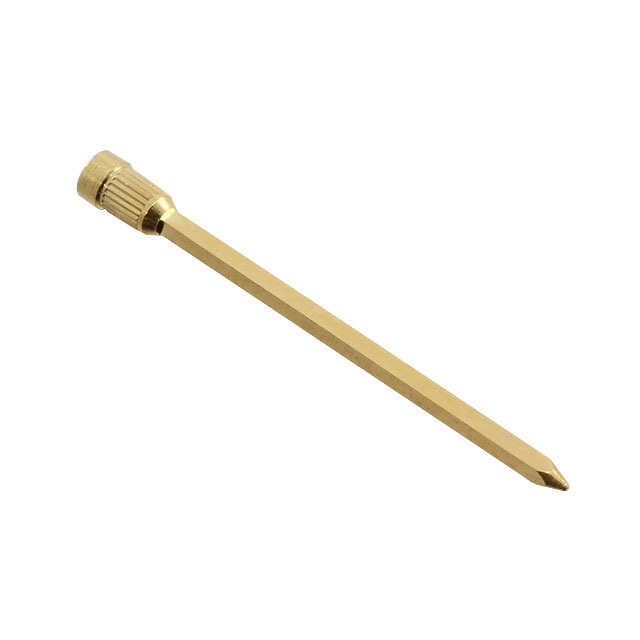

CONN PC PIN SQUARE 0.025 TINLEAD
| Part | Length - Above Flange [x] | Length - Above Flange | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Finish | Length - Overall [x] | Length - Overall [x] | Insulation | Contact Finish Thickness | Contact Finish Thickness | Terminal Style | Termination | Contact Material | Mounting Type | Mounting Hole Diameter | Mounting Hole Diameter | Pin Size - Above Flange | Pin Size - Above Flange | Terminal Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.68 " | 17.27 mm | 1.65 mm | 0.065 in | Tin-Lead | 0.71 in | 18.03 mm | Non-Insulated | 200 Áin | 5.08 Ám | Single End | Knurled Press-Fit Wire Wrap | Brass Alloy | Through Hole | 1.42 mm | 0.056 " | 0.025 in | 0.64 mm | PC Pin |
 Mill-Max Manufacturing Corp. | 0.68 " | 17.27 mm | 1.65 mm | 0.065 in | Gold | 0.71 in | 18.03 mm | Non-Insulated | 10 Áin | 0.25 Ám | Single End | Knurled Press-Fit Wire Wrap | Brass Alloy | Through Hole | 1.42 mm | 0.056 " | 0.025 in | 0.64 mm | PC Pin |
Mill-Max Manufacturing Corp. | 0.68 " | 17.27 mm | 1.65 mm | 0.065 in | Gold | 0.71 in | 18.03 mm | Non-Insulated | 20 µin | 0.51 µm | Single End | Knurled Press-Fit Wire Wrap | Brass Alloy | Through Hole | 1.42 mm | 0.056 " | 0.025 in | 0.64 mm | PC Pin |
