59S102 Series
Manufacturer: Rosenberger
Beta
⌘K

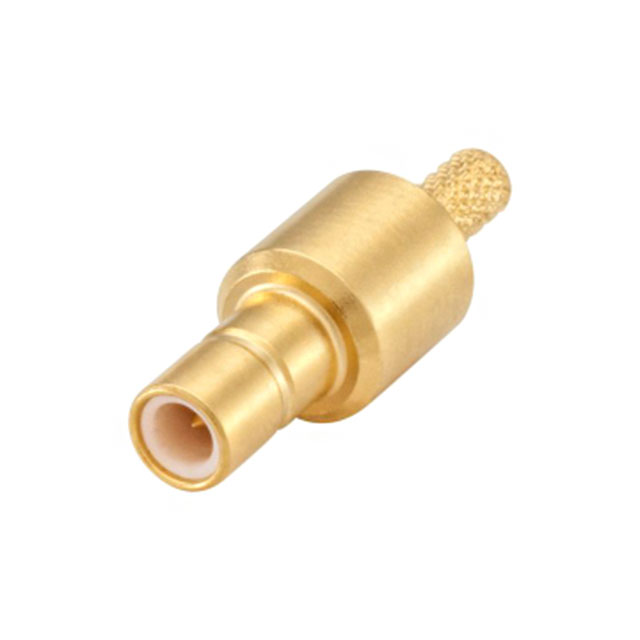

CONN SMB PLUG STR 50OHM CRIMP
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Includes | Center Contact Plating | Mating Cycles | Voltage Rating | Body Finish | Body Material | Frequency - Max [Max] | Connector Style | Center Contact Material | Impedance | Housing Color | Mounting Type | Cable Group | Shield Termination | Contact Termination | Connector Type | Fastening Type | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 155 C | -55 C | Polytetrafluoroethylene (PTFE) | 1 Connector 1 Contact 1 Ferrule | Gold | 500 | 250 V | Gold | Brass | 4 GHz | SMB | Brass | 50 Ohms | Gold | Free Hanging (In-Line) | 188A 316 RG-174A | Crimp | Crimp | Plug Male Pin | Snap-On | 1 |
