11126001 Series

Manufacturer: HARTING

Catalog

HAN-YELLOCK 60-FEED THROUGH HOOD

Part	Thread Size	Style	Housing Color	Lock Location	Ingress Protection	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Housing Material	Connector Type	Housing Finish	Operating Temperature [Max]	Operating Temperature [Min]	Features	Size / Dimension [z]	Size / Dimension [y]
HARTING 11126001709

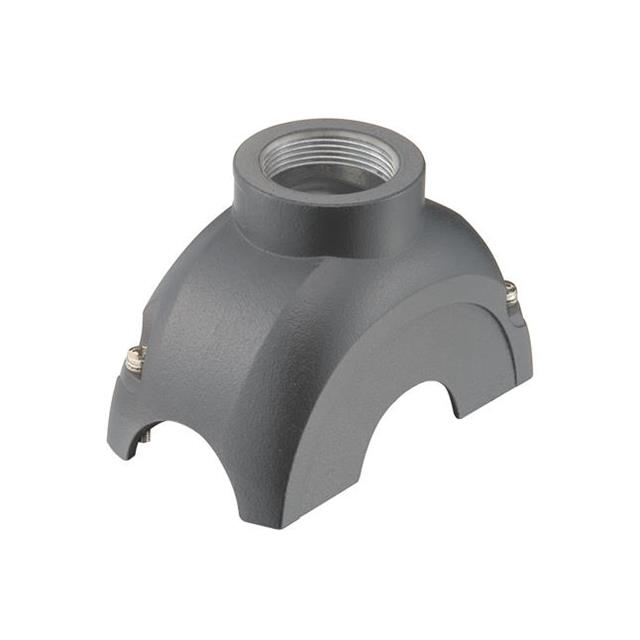

HARTING 11126001401	M25	Top Entry	Black	Push Button Snap Lock on Hood Carrier	IP65 IP67	3.972 "	2.205 in	67.9 mm	56 mm	100.89 mm	2.673 "	Aluminum Die Cast	Hood - Shell	Epoxy Powder Paint	125 °C	-40 C
HARTING 11126001203		Side Entry	Black	Push Button Snap Lock on Hood Carrier	IP65 IP67	4.528 in	3.228 in	60 mm	82 mm	115 mm	2.362 in	Zinc Die Cast	Base - Box Mount	Powder Coated	125 °C	-40 C
HARTING 11126001215	M25	Side Entry Dual	Black	Screw Locks on Hood	IP65 IP67	4.528 in	3.228 in	72.7 mm	82 mm	115 mm	2.862 "	Aluminum Die Cast	Base - Box Mount	Powder Coated	125 °C	-40 C	Feed Through
HARTING 11126001402	M32	Top Entry	Black	Push Button Snap Lock on Hood Carrier	IP65 IP67	3.972 "	2.205 in	67.9 mm	56 mm	100.89 mm	2.673 "	Aluminum Die Cast	Hood - Shell	Epoxy Powder Paint	125 °C	-40 C
HARTING 11126001206	M32	Side Entry	Black	Push Button Snap Lock on Hood Carrier	IP65 IP67	4.528 in	3.228 in	60 mm	82 mm	115 mm	2.362 in	Zinc Die Cast	Base - Box Mount	Powder Coated	125 °C	-40 C	Feed Through
HARTING 11126001213		Side Entry	Gray	Screw Locks on Hood	IP65 IP67	4.528 in	3.228 in	72.7 mm	82 mm	115 mm	2.862 "	Aluminum Die Cast	Base - Box Mount	Powder Coated	125 °C	-40 C

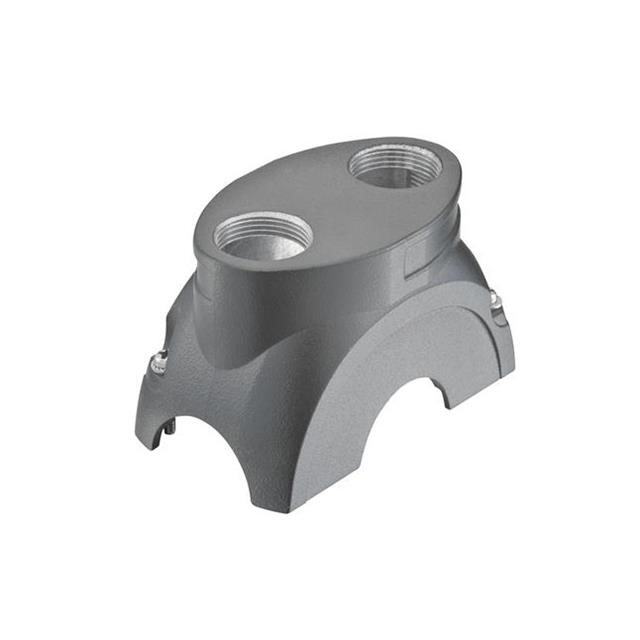

HARTING 11126001415	M20 M25	Top Entry Dual	Black	Push Button Snap Lock on Hood Carrier	IP65 IP67	3.972 "	2.205 in	62.1 mm	56 mm	100.9 mm	2.445 in	Aluminum Die Cast	Hood - Shell	Epoxy Powder Paint	125 °C	-40 C
HARTING 11126001411	M25	Top Entry Dual	Black	Push Button Snap Lock on Hood Carrier	IP65 IP67	3.972 "	2.205 in	62.1 mm	56 mm	100.9 mm	2.445 in	Aluminum Die Cast	Hood - Shell	Epoxy Powder Paint	125 °C	-40 C

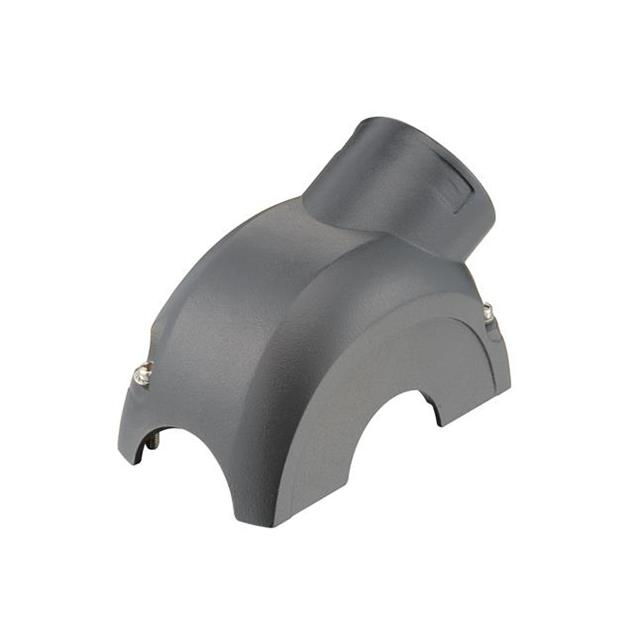

HARTING 11126001501	M25	Side Entry	Black	Push Button Snap Lock on Hood Carrier	IP65 IP67	3.972 "	2.205 in			100.89 mm	2.976 in	Aluminum Die Cast	Hood - Shell	Epoxy Powder Paint	125 °C	-40 C		75.6 mm	56 mm
