FSG.1B Series
Manufacturer: LEMO
Beta
⌘K

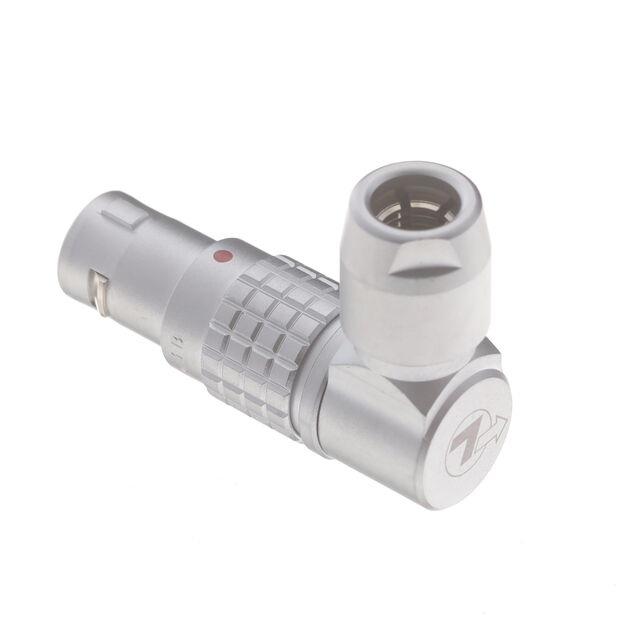

CONN PLUG MALE 3POS SOLDER CUP
| Part | Current Rating (Amps) | Material Flammability Rating | Contact Finish - Mating | Contact Material | Shielding | Cable Opening [Max] | Cable Opening [Min] | Shell Size - Insert | Primary Material | Shell Material | Insert Material | Orientation [custom] | Features | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection | Color | Fastening Type | Backshell Material, Plating | Connector Type | Shell Finish | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
12 Amps | UL94 V-0 | Gold | Brass | Shielded | 0.205 in 5.2 mm | 0.169 " 4.3 mm | 303 | Metal | Brass | Polyetheretherketone (PEEK) | G | Backshell | -55 C | 250 °C | IP50 - Dust Protected | Silver | Push-Pull | Brass Chrome | Plug Male Pins | Chrome | Free Hanging (In-Line) | |
