86177 Series

Catalog

50 MODIV HSG COMP DR .100CL ROHS COMPLIANT: YES

Part	Note	Mounting Type	Row Spacing	Row Spacing	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Pitch	Pitch	Contact Termination	Number of Positions	Number of Rows [custom]	Color	Insulation Material	Contact Type
TE Connectivity AMP Connectors 2-86177-1	Contacts Not Included	Free Hanging (In-Line)	2.54 mm	0.1 "	Receptacle	105 ░C	-65 ░C	0.1 "	2.54 mm	Crimp	50	2	Black	Glass Filled Nylon Polyamide (PA)	Female Socket

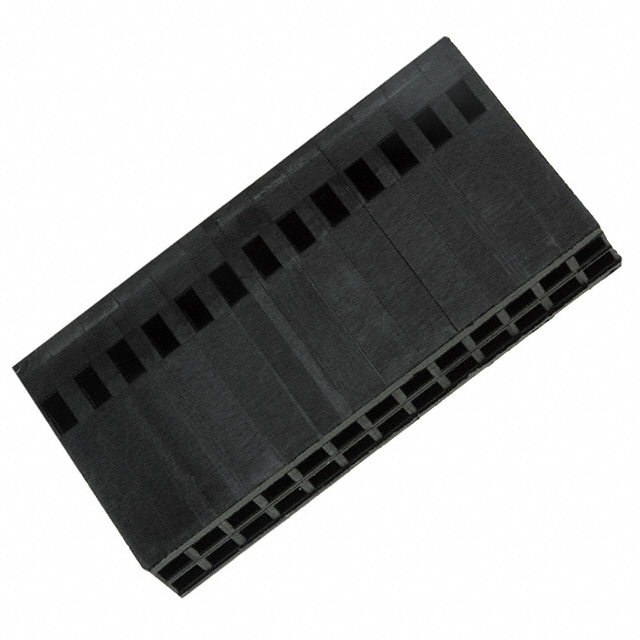

TE Connectivity AMP Connectors 86177-4	Contacts Not Included	Free Hanging (In-Line)	2.54 mm	0.1 "	Receptacle	105 ░C	-65 ░C	0.1 "	2.54 mm	Crimp	26	2	Black	Thermoplastic	Female Socket

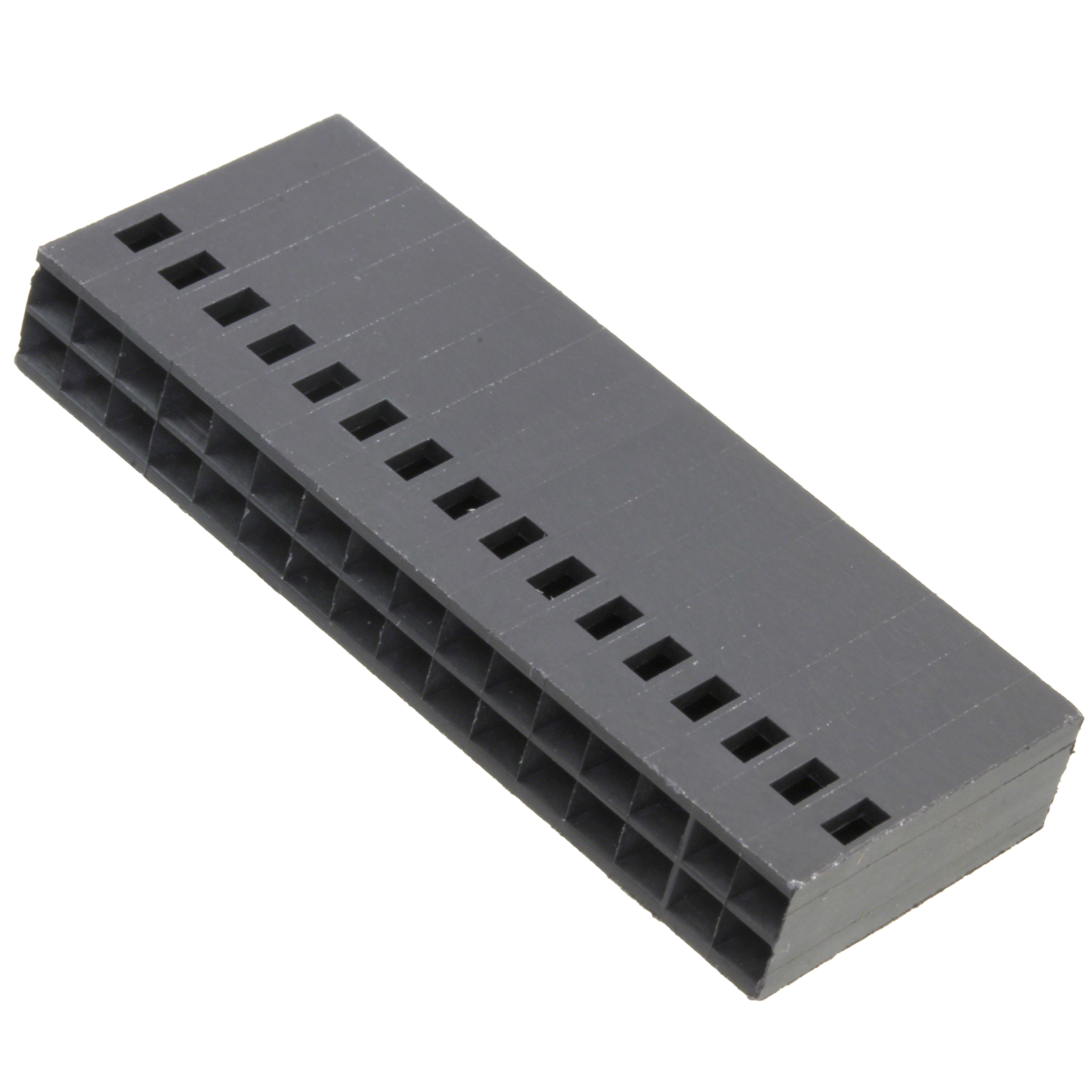

TE Connectivity AMP Connectors 86177-7	Contacts Not Included	Free Hanging (In-Line)	2.54 mm	0.1 "	Receptacle	105 ░C	-65 ░C	0.1 "	2.54 mm	Crimp		2	Black	Thermoplastic	Female Socket

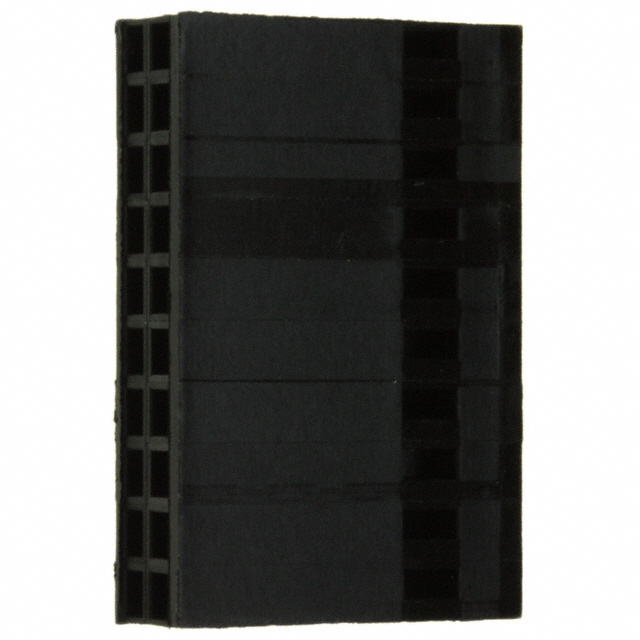

TE Connectivity AMP Connectors 86177-1	Contacts Not Included	Free Hanging (In-Line)	2.54 mm	0.1 "	Receptacle	105 ░C	-65 ░C	0.1 "	2.54 mm	Crimp	20	2	Black	Thermoplastic	Female Socket

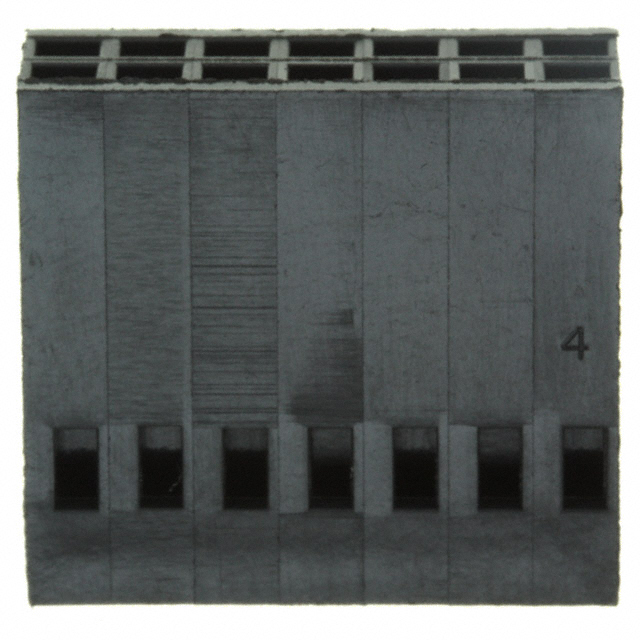

TE Connectivity AMP Connectors 1-86177-4	Contacts Not Included	Free Hanging (In-Line)	2.54 mm	0.1 "	Receptacle	105 ░C	-65 ░C	0.1 "	2.54 mm	Crimp	14	2	Black	Thermoplastic	Female Socket
