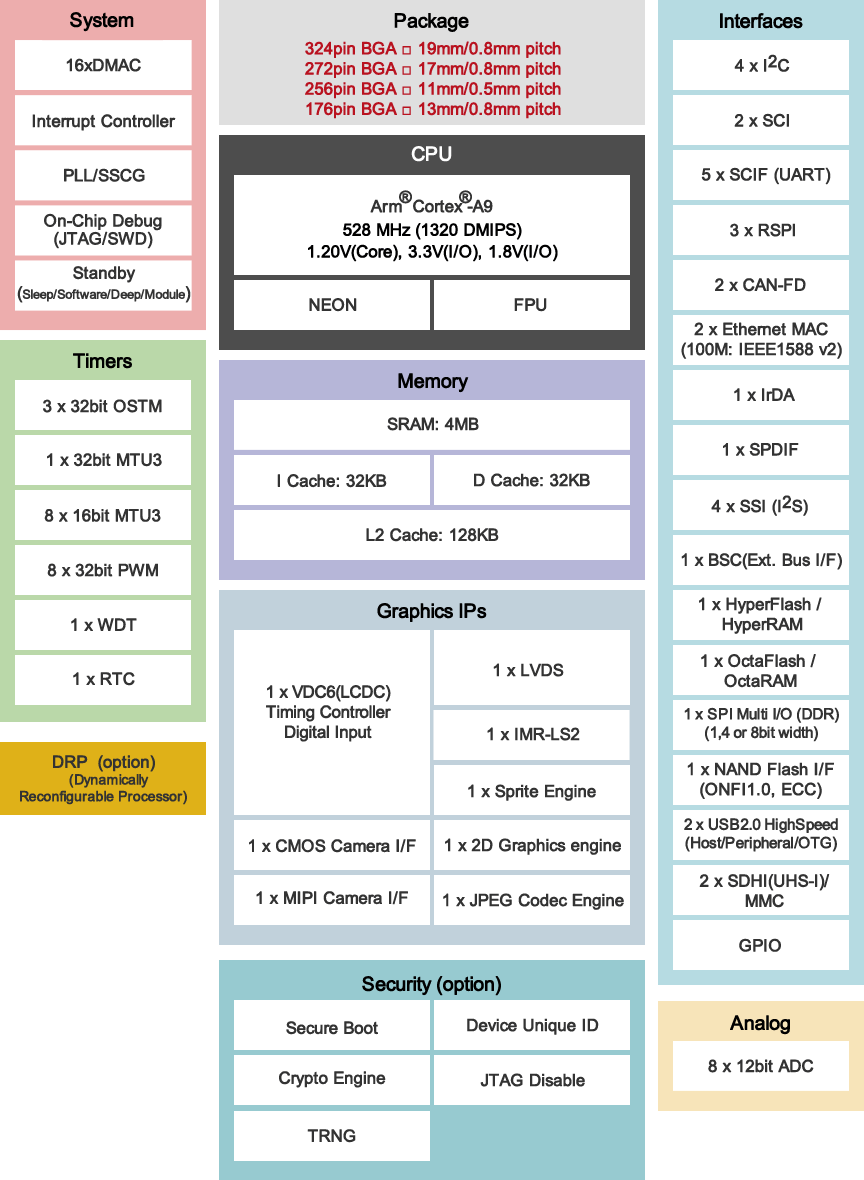

Image Processing RTOS MPU with DRP and 4MB of On-chip RAM
Image Processing RTOS MPU with DRP and 4MB of On-chip RAM
Image Processing RTOS MPU with DRP and 4MB of On-chip RAM
| Part | USB | Core Processor | Mounting Type | Additional Interfaces | Ethernet [Max] | Ethernet | Ethernet [Min] | Graphics Acceleration | Display & Interface Controllers | Package / Case | Supplier Device Package | Number of Cores/Bus Width | Operating Temperature [Max] | Operating Temperature [Min] | Co-Processors/DSP | Speed | Voltage - I/O | RAM Controllers | Security Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Renesas Electronics Corporation | USB 2.0 (2) | ARM® Cortex®-A9 | Surface Mount | CAN I2C IEBus IrDA LIN MediaLB MMC/SD/SDIO SCI SCI FIFO SPDIF SPI SSI | 100 Mbps | 100 Mbps | 10 Mbps | DVD VDC | 256-LFBGA | 11x11 256-LFBGA | 1 Core 32 Bit | 85 °C | -40 °C | Multimedia NEON™ MPE | 400 MHz | 1.2 V 3.3 V | SDRAM SRAM | ||

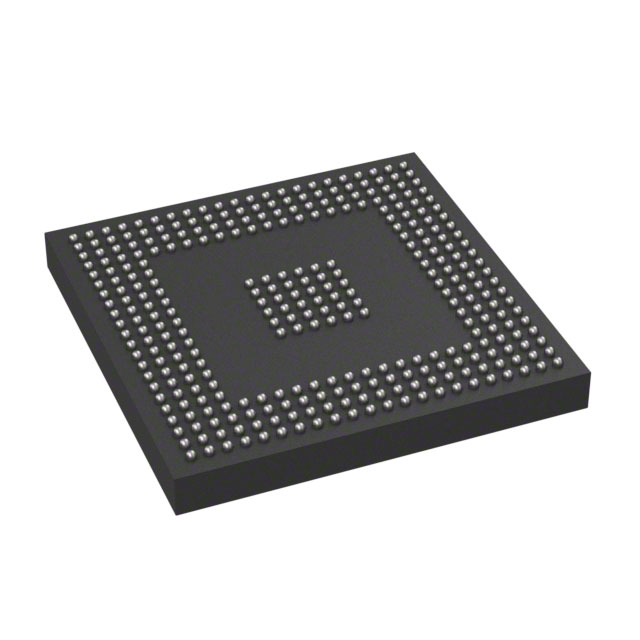

 Renesas Electronics Corporation | USB 2.0 (2) | ARM® Cortex®-A9 | Surface Mount | CAN I2C IEBus IrDA LIN MediaLB MMC/SD/SDIO SCI SCI FIFO SPDIF SPI SSI | 100 Mbps | 100 Mbps | 10 Mbps | DVD VDC | 324-FBGA | 324-FBGA (19x19) | 1 Core 32 Bit | 85 °C | -40 °C | Multimedia NEON™ MPE | 400 MHz | 1.2 V 3.3 V | SDRAM SRAM | ||
Renesas Electronics Corporation | USB 2.0 (2) | ARM® Cortex®-A9 | Surface Mount | CANbus EBI/EMI I2C IEBus IrDA LIN MediaLB MMC/SD/SDIO SCI SCI FIFO SPDIF SPI SSI | 100 Mbps | 100 Mbps | 10 Mbps | DVD VDC | 324-FBGA | 324-FBGA (19x19) | 1 Core 32 Bit | 85 °C | -40 °C | Multimedia NEON™ MPE | 400 MHz | 1.2 V 3.3 V | SDRAM SRAM | ||
 Renesas Electronics Corporation | USB 2.0 (2) | ARM® Cortex®-A9 | Surface Mount | CAN I2C IrDA MMC/SD/SDIO SCI SCI FIFO SPDIF SPI SSI | 10 Mbps 100 Mbps | VDC | 176-LFBGA | 176-LFBGA (8x8) | 1 Core 32 Bit | 85 °C | -40 °C | Multimedia NEON™ MPE | 400 MHz | 1.2 V 3.3 V | SDRAM SRAM | ||||
 Renesas Electronics Corporation | USB 2.0 (2) | ARM® Cortex®-A9 | Surface Mount | CANbus I2C IrDA MMC/SD/SDIO SCI SCI FIFO SPDIF SPI SSI | 100 Mbps | 100 Mbps | 10 Mbps | VDC | 176-LQFP | 176-LFQFP (24x24) | 1 Core 32 Bit | 85 °C | -40 °C | Multimedia NEON™ MPE | 400 MHz | 1.2 V 3.3 V | SDRAM SRAM | ||
Renesas Electronics Corporation | USB 2.0 (2) | ARM® Cortex®-A9 | Surface Mount | CANbus EBI/EMI I2C IEBus IrDA LIN MediaLB MMC/SD/SDIO SCI SCI FIFO SPDIF SPI SSI | 100 Mbps | 100 Mbps | 10 Mbps | DVD VDC | 256-LQFP | 256-LQFP (28x28) | 1 Core 32 Bit | 85 °C | -40 °C | Multimedia NEON™ MPE | 400 MHz | 1.2 V 3.3 V | SDRAM SRAM | ||
 Renesas Electronics Corporation | USB 2.0 (1) | ARM® Cortex®-A9 | Surface Mount | CAN I2C I2S IrDA MMC/SD/SDIO SCI SCI FIFO SPDIF SPI SSI | LCD LVDS MIPICSI2 Video | 272-FBGA | 272-FBGA (17x17) | 1 Core | 85 °C | -40 °C | Multimedia NEON™ MPE | 528 MHz | 3DES AES GHASH RSA SHA1 SHA224 SHA256 | ||||||
Renesas Electronics Corporation | USB 2.0 (2) | ARM® Cortex®-A9 | Surface Mount | CAN I2C IEBus IrDA LIN MediaLB MMC/SD/SDIO SCI SCI FIFO SPDIF SPI SSI | 100 Mbps | 100 Mbps | 10 Mbps | DVD VDC | 324-FBGA | 324-FBGA (19x19) | 1 Core 32 Bit | 85 °C | -40 °C | Multimedia NEON™ MPE | 400 MHz | 1.2 V 3.3 V | SDRAM SRAM | ||
Renesas Electronics Corporation | USB 2.0 (2) | ARM® Cortex®-A9 | Surface Mount | CAN I2C IEBus IrDA LIN MediaLB MMC/SD/SDIO SCI SCI FIFO SPDIF SPI SSI | 100 Mbps | 100 Mbps | 10 Mbps | DVD VDC | 324-FBGA | 324-FBGA (19x19) | 1 Core 32 Bit | 85 °C | -40 °C | Multimedia NEON™ MPE | 400 MHz | 1.2 V 3.3 V | SDRAM SRAM | ||
Renesas Electronics Corporation | USB 2.0 (1) | ARM® Cortex®-A9 | Surface Mount | CAN I2C I2S IrDA MMC/SD/SDIO SCI SCI FIFO SPDIF SPI SSI | LCD LVDS MIPICSI2 Video | 324-FBGA | 324-FBGA (19x19) | 1 Core | 85 °C | -40 °C | Multimedia NEON™ MPE | 528 MHz | 3DES AES GHASH RSA SHA1 SHA224 SHA256 |
