FD3D096 Series
Manufacturer: Belden Inc.
Beta
⌘K
CBL FIBER OPTIC
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Type | Ratings | Style | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Tensile Strength | Core Diameter [diameter] | Cladding Diameter [diameter] | Features | Jacket Color | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 70 °C | -40 C | Multimode | OFNR | Multiple Fibers | Poly-Vinyl Chloride (PVC) | 24.82 mm | 0.977 in | 81.6 kg | 50 µm | 125 µm | 96 Fibers Rip Cord | Black | |

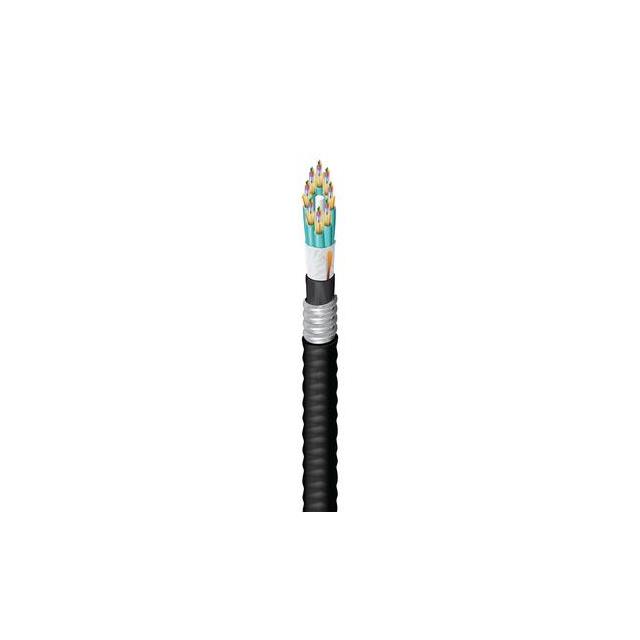

 Belden Inc. | 70 °C | -40 C | Multimode | OFCR | Multiple Fibers | Poly-Vinyl Chloride (PVC) | 35.31 mm | 1.39 in | 81.6 kg | 50 µm | 125 µm | Armored | Black | 96 Fibers |

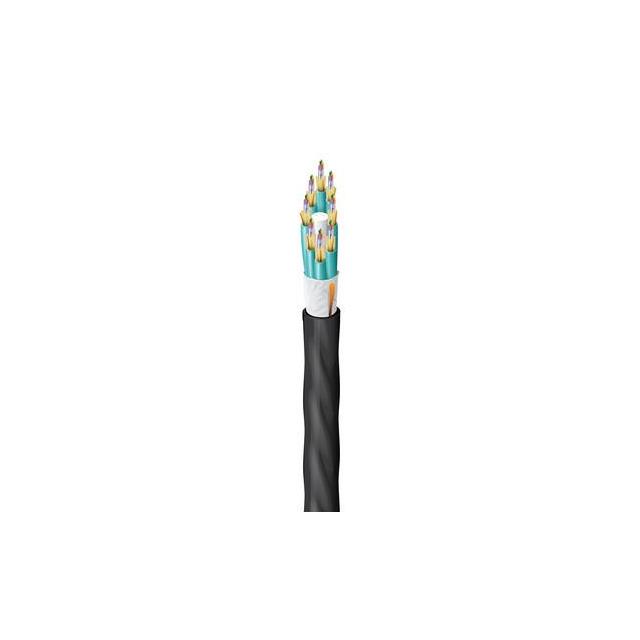

 Belden Inc. | 70 °C | -40 C | Multimode | OFNR | Multiple Fibers | Low Smoke Zero Halogen (LSZH) | 24.82 mm | 0.977 in | 81.6 kg | 50 µm | 125 µm | 96 Fibers Rip Cord | Black | |
Belden Inc. | 70 °C | -40 C | Multimode | OFNP | Multiple Fibers | Poly-Vinyl Chloride (PVC) | 22.86 mm | 0.9 " | 81.6 kg | 50 µm | 125 µm | 96 Fibers Rip Cord | Black | |
 Belden Inc. | 70 °C | -40 C | Multimode | OFCP | Multiple Fibers | Poly-Vinyl Chloride (PVC) | 32 mm | 1.26 in | 81.6 kg | 50 µm | 125 µm | Armored | Black | 96 Fibers |
