M83513/20 Series
Manufacturer: Cinch Connectivity Solutions
Beta
⌘K

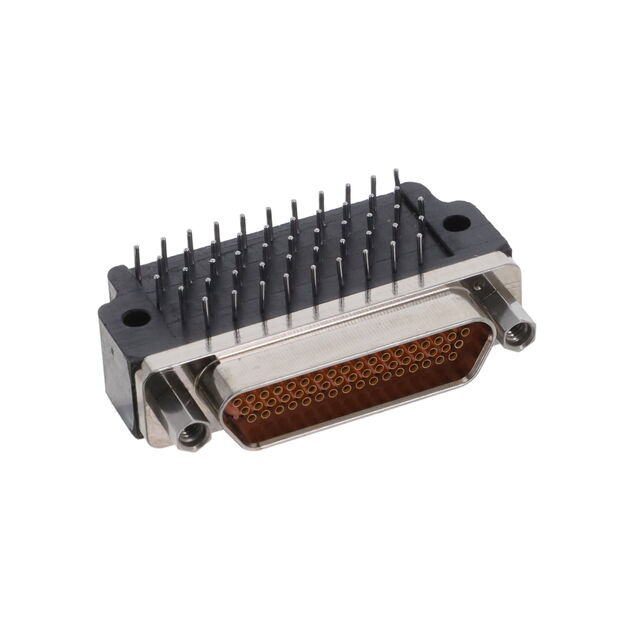

51 POS RCPT STD 90 PCB CD PLTD
| Part | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Shell Material, Finish | Material Flammability Rating | Termination | Contact Finish Thickness | Contact Finish Thickness | Connector Style | Number of Positions | Connector Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Finish | Current Rating (Amps) | Mounting Type | Contact Type | Flange Feature | Number of Rows [custom] | Backset Spacing | Backset Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cinch Connectivity Solutions | Polyester Glass Filled | -55 C | 125 °C | Copper Alloy | Aluminum Alloy Yellow Chromate Plated Cadmium | UL94 V-0 | Solder | 50 µin | 1.27 µm | D-Type Micro-D | 51 | Receptacle Female Sockets | 0.05 | 0.05 | Gold | 3 A | Right Angle Through Hole | Signal | Mating Side Female Screwlock (2-56) | 3 | 0.275 in | 6.99 mm |
