NST857BMX2 Series

100 mA, 45 V, PNP Bipolar Transistor in SOT-883

Catalog

100 mA, 45 V, PNP Bipolar Transistor in SOT-883

Part	Transistor Type	Vce Saturation (Max) @ Ib, Ic	Package / Case	Power - Max [Max]	Voltage - Collector Emitter Breakdown (Max)	DC Current Gain (hFE) (Min) @ Ic, Vce	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Supplier Device Package	Current - Collector Cutoff (Max) [Max]	Current - Collector (Ic) (Max) [Max]	Frequency - Transition

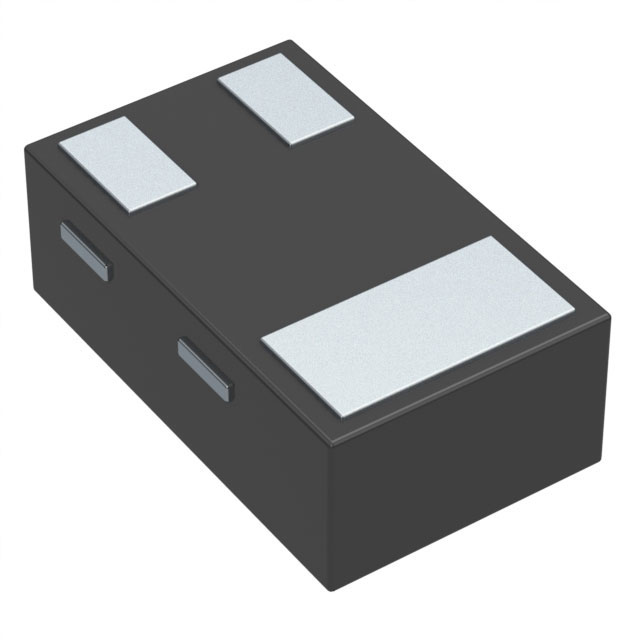

ON Semiconductor NST857BMX2T5G	PNP	650 mV	0402 (1006 Metric)	225 mW	45 V	220 hFE	-55 °C	150 °C	Surface Mount	3-X2DFN (1x0.6)	15 nA	100 mA	100 MHz

Catalog

100 mA, 45 V, PNP Bipolar Transistor in SOT-883

Key Features

• Small footprint: 1.0 x 0.6 mm

• Low Profile: 0.4 mm max thickness

• High continuous current capability

Description

The PNP Bipolar Transistor is designed for use in amplification and switching applications. The device is housed in the SOT-883 package, which is designed for lower power surface mount applications. Because of its small size, it is suited for use in smartphone, smart−watch, or many other portable/wearable applications where board space comes at a premium.
