R19162 Series

Catalog

NEX 10 F-4.3/10 F STR

Part	Center Contact Material	Body Material	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Impedance	Convert From (Adapter End)	Center Contact Plating	Style	Adapter Series	Adapter Type	Mounting Type	Convert To (Adapter End)	Frequency - Max [Max]	Center Gender	Conversion Type	Fastening Type	Adapter Series [Min]	Adapter Series [Max]

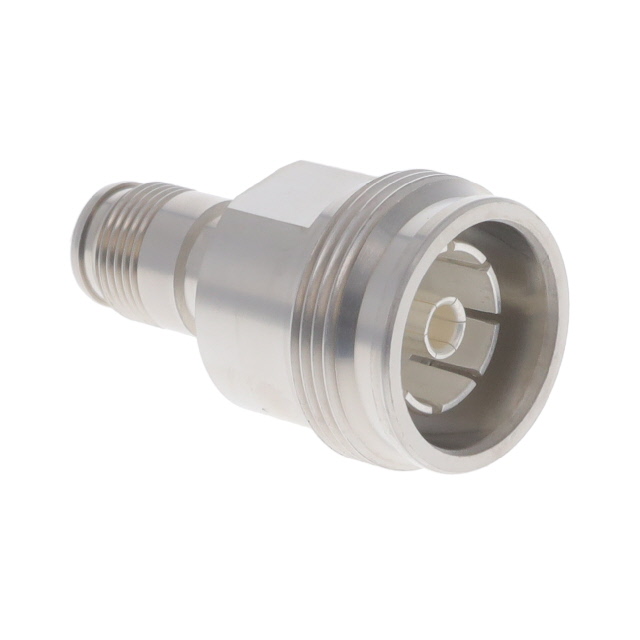

Radiall USA, Inc. R191620037	Beryllium Copper	Brass	90 °C	-55 C	Polytetrafluoroethylene (PTFE)	50 Ohms	4.3/10 Jack Female Socket	Silver	Straight	4.3/10 to NEX10	Jack to Jack	Free Hanging (In-Line)	NEX10 Jack Female Socket	6000 MHz	Female to Female	Between Series

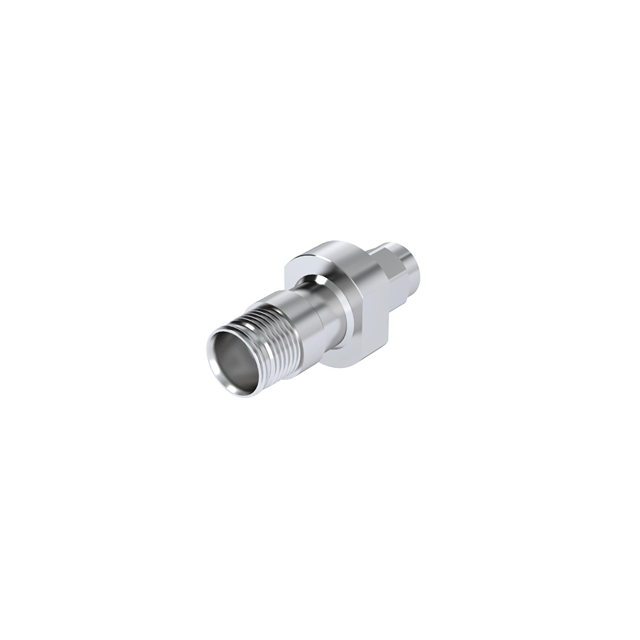

Radiall USA, Inc. R191621017	Beryllium Copper	Brass	125 °C	-55 C	Polytetrafluoroethylene (PTFE)	50 Ohms	NEX10 Jack Female Socket	Gold	Straight	NEX10 to SMA	Plug to Jack	Free Hanging (In-Line)	SMA Plug Male Pin	20 GHz		Between Series	Snap-On Threaded
Radiall USA, Inc. R191620007	Beryllium Copper	Brass	125 °C	-55 C	Polytetrafluoroethylene (PTFE)	50 Ohms	NEX10 Plug Male Pin	Silver	Straight	NEX10 to N	Plug to Jack	Free Hanging (In-Line)	N Jack Female Socket	11 GHz		Between Series	Push-Pull Threaded

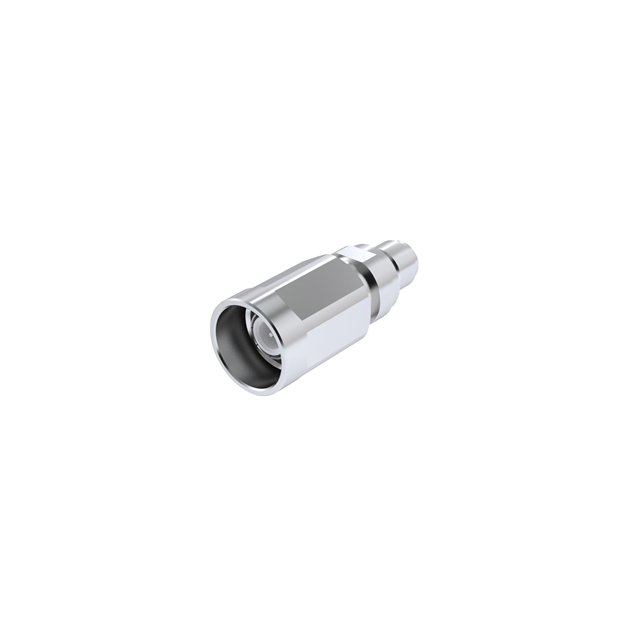

Radiall USA, Inc. R191621007	Beryllium Copper	Brass	125 °C	-55 C	Polytetrafluoroethylene (PTFE)	50 Ohms	NEX10 Plug Male Pin	Gold	Straight	NEX10 to SMA	Plug to Jack	Free Hanging (In-Line)	SMA Jack Female Socket	20 GHz		Between Series	Snap-On Threaded

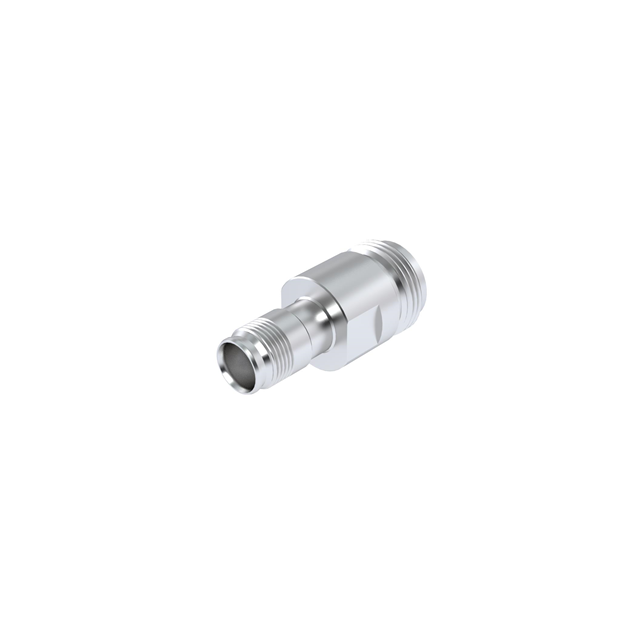

Radiall USA, Inc. R191620027	Beryllium Copper	Brass	125 °C	-55 C	Polytetrafluoroethylene (PTFE)	50 Ohms	NEX10 Jack Female Socket	Silver	Straight	NEX10 to N	Jack to Jack	Free Hanging (In-Line)	N Jack Female Socket	11 GHz	Female to Female	Between Series

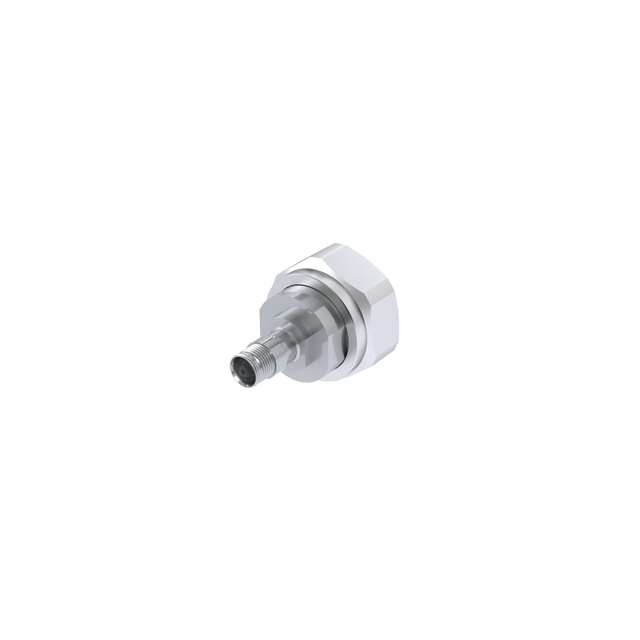

Radiall USA, Inc. R191620017	Beryllium Copper	Brass	125 °C	-55 C	Polytetrafluoroethylene (PTFE)	50 Ohms	7/16 Plug Male Pin	Silver	Straight		Plug to Jack	Free Hanging (In-Line)	NEX10 Jack Female Socket	6000 MHz		Between Series	Snap-On Threaded	7/16	NEX10
