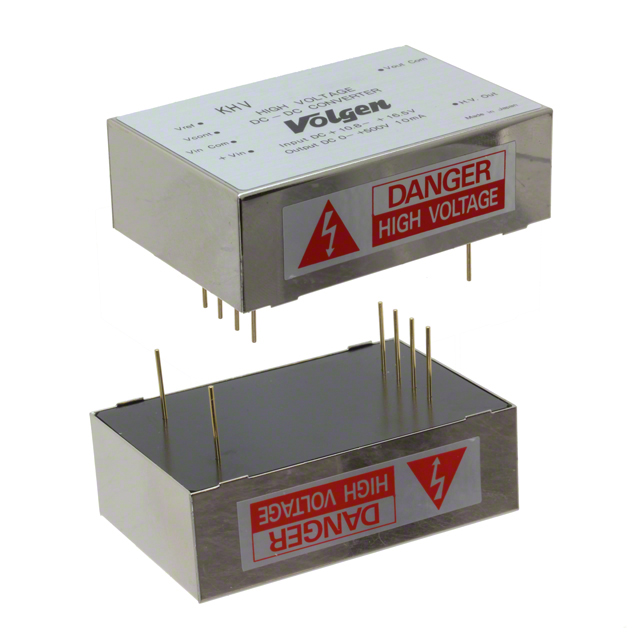

KHV12 Series
Manufacturer: Volgen + Furuno
Beta
⌘K
5W 10V INP 10V O/P HI VOLT DC/DC
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Applications | Package / Case | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Mounting Type | Current - Output (Max) [Max] | Features | Power (Watts) | Voltage - Input (Min) [Min] | Type | Voltage - Input (Max) [Max] | Number of Outputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Volgen + Furuno | 50 °C | -10 °C | 1000 V | ITE (Commercial) | 7-DIP Module | 1.57 " | 2.36 " | 40 mm | 20 mm | 60 mm | 0.79 in | Through Hole | 5 mA | OCP | 5 W | 10.8 V | High Voltage - Non-Isolated Module | 16.5 V | 1 |
Volgen + Furuno | 50 °C | -10 °C | -500 V | ITE (Commercial) | 7-DIP Module | 1.57 " | 2.36 " | 40 mm | 20 mm | 60 mm | 0.79 in | Through Hole | 10 mA | OCP | 5 W | 10.8 V | High Voltage - Non-Isolated Module | 16.5 V | 1 |
