GMA Series

Catalog

SWITCHING POWER SUPPLIES 302.4W 56V 5.4A W/COATING MEDICAL

Part	Applications	Type	Features	Approval Agency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Output 1	Voltage - Isolation	Power (Watts)	Efficiency	Number of Outputs	Mounting Type	Current - Output 1	Operating Temperature [Min]	Operating Temperature [Max]
Cosel USA, Inc. GMA300F-56-C	ITE (Commercial) Medical	Open Frame Conformal Coated	Adjustable Output PFC Universal Input	CE cURus DEMKO	101.6 mm	50.8 mm	2 in	36.6 mm	4 "	1.44 in	56 V	4000 V	302 W	93 %	1	Chassis Mount	5.4 A	-20 ░C	70 °C

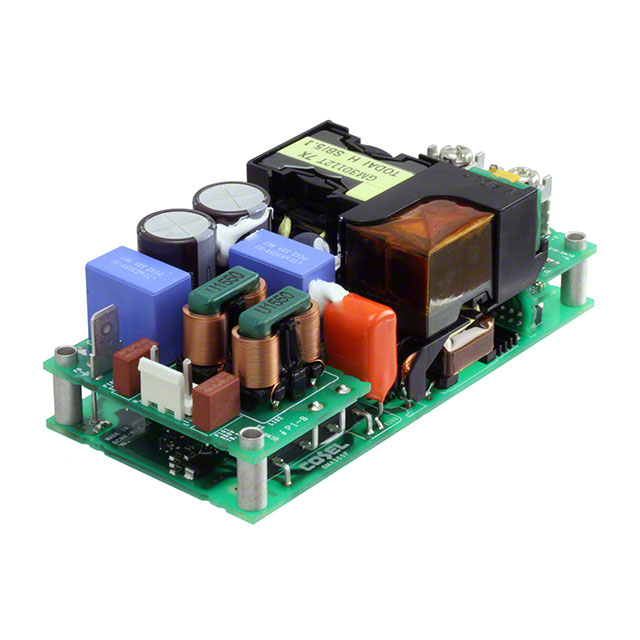

Cosel USA, Inc. GMA300F-12-J3	ITE (Commercial) Medical	Open Frame	Adjustable Output PFC Universal Input	CE cURus DEMKO	101.6 mm	50.8 mm	2 in	36.6 mm	4 "	1.44 in	12 V	4000 V	300 W	92 %	1	Chassis Mount	25 A	-20 ░C	70 °C
Cosel USA, Inc. GMA300F-56-J1	ITE (Commercial) Medical	Open Frame	Adjustable Output PFC Universal Input	CE cURus DEMKO	101.6 mm	50.8 mm	2 in	36.6 mm	4 "	1.44 in	56 V	4000 V	302 W	93 %	1	Chassis Mount	5.4 A	-20 ░C	70 °C
Cosel USA, Inc. GMA300F-48-J1	ITE (Commercial) Medical	Open Frame	Adjustable Output PFC Universal Input	CE cURus DEMKO	101.6 mm	50.8 mm	2 in	36.6 mm	4 "	1.44 in	48 V	4000 V	302 W	93 %	1	Chassis Mount	6.3 A	-20 ░C	70 °C
Cosel USA, Inc. GMA300F-56-J3	ITE (Commercial) Medical	Open Frame	Adjustable Output PFC Universal Input	CE cURus DEMKO	101.6 mm	50.8 mm	2 in	36.6 mm	4 "	1.44 in	56 V	4000 V	302 W	93 %	1	Chassis Mount	5.4 A	-20 ░C	70 °C
Cosel USA, Inc. GMA300F-56	ITE (Commercial) Medical	Open Frame	Adjustable Output PFC Universal Input	CE cURus DEMKO	101.6 mm	50.8 mm	2 in	36.6 mm	4 "	1.44 in	56 V	4000 V	302 W	93 %	1	Chassis Mount	5.4 A	-20 ░C	70 °C
Cosel USA, Inc. GMA300F-48-C	ITE (Commercial) Medical	Open Frame Conformal Coated	Adjustable Output PFC Universal Input	CE cURus DEMKO	101.6 mm	50.8 mm	2 in	36.6 mm	4 "	1.44 in	48 V	4000 V	302 W	93 %	1	Chassis Mount	6.3 A	-20 ░C	70 °C
Cosel USA, Inc. GMA300F-48-I2	ITE (Commercial) Medical	Open Frame	Adjustable Output PFC Universal Input	CE cURus DEMKO	101.6 mm	50.8 mm	2 in	36.6 mm	4 "	1.44 in	48 V	4000 V	302 W	93 %	1	Chassis Mount	6.3 A	-20 ░C	70 °C
Cosel USA, Inc. GMA300F-24-I2	ITE (Commercial) Medical	Open Frame	Adjustable Output PFC Universal Input	CE cURus DEMKO	101.6 mm	50.8 mm	2 in	36.6 mm	4 "	1.44 in	24 V	4000 V	300 W	93 %	1	Chassis Mount	12.5 A	-20 ░C	70 °C
Cosel USA, Inc. GMA300F-24-C	ITE (Commercial) Medical	Open Frame Conformal Coated	Adjustable Output PFC Universal Input	CE cURus D-Mark	101.6 mm	50.8 mm	2 in	36.6 mm	4 "	1.44 in	24 V	4000 V	300 W	93 %	1	Chassis Mount	12.5 A	-20 ░C	70 °C
