LM5033 Series

Catalog

100-V PUSH-PULL VOLTAGE MODE PWM CONTROLLER

Part	Supplier Device Package	Output Configuration	Output Type	Number of Outputs	Frequency - Switching	Function	Control Features	Topology	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Output Phases	Board Type	Utilized IC / Part	Supplied Contents	Voltage - Output	Outputs and Type	Outputs and Type	Voltage - Input [Min]	Voltage - Input [Max]	Regulator Topology	Main Purpose	Current - Output	Package / Case [x]	Package / Case [x]
Texas Instruments LM5033SDX/NOPB	10-WSON (4x4)	Positive	PWM Signal	2	200 kHz 600 kHz	Step-Up/Step-Down	Frequency Control Soft Start	Full-Bridge Half-Bridge Push-Pull	90 V	15 V	10-WDFN Exposed Pad	-40 °C	125 ¯C	Surface Mount	1

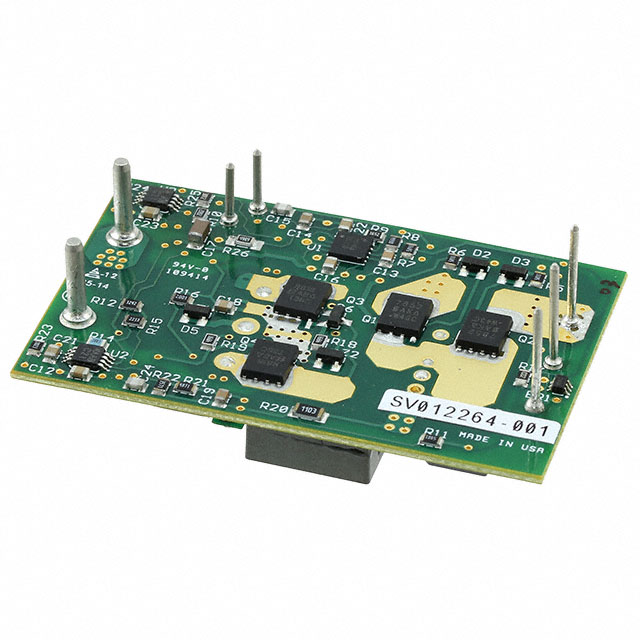

Texas Instruments LM5033SD-EVAL					315 kHz											Fully Populated	LM5033	Board(s)	9 V	Non-Isolated	1	40 V	60 V	Buck	DC/DC Step Down	20 A
Texas Instruments LM5033MM/NOPB	10-VSSOP	Positive	PWM Signal	2	200 kHz 600 kHz	Step-Up/Step-Down	Frequency Control Soft Start	Full-Bridge Half-Bridge Push-Pull	90 V	15 V	10-MSOP 10-TFSOP	-40 °C	125 ¯C	Surface Mount	1												3 mm	0.118 in
Texas Instruments LM5033MMX	10-VSSOP	Positive	PWM Signal	2	200 kHz 600 kHz	Step-Up/Step-Down	Frequency Control Soft Start	Full-Bridge Half-Bridge Push-Pull	90 V	15 V	10-MSOP 10-TFSOP	-40 °C	125 ¯C	Surface Mount	1												3 mm	0.118 in
Texas Instruments LM5033MM	10-VSSOP	Positive	PWM Signal	2	200 kHz 600 kHz	Step-Up/Step-Down	Frequency Control Soft Start	Full-Bridge Half-Bridge Push-Pull	90 V	15 V	10-MSOP 10-TFSOP	-40 °C	125 ¯C	Surface Mount	1												3 mm	0.118 in
Texas Instruments LM5033MMX/NOPB	10-VSSOP	Positive	PWM Signal	2	200 kHz 600 kHz	Step-Up/Step-Down	Frequency Control Soft Start	Full-Bridge Half-Bridge Push-Pull	90 V	15 V	10-MSOP 10-TFSOP	-40 °C	125 ¯C	Surface Mount	1												3 mm	0.118 in
Texas Instruments LM5033SD	10-WSON (4x4)	Positive	PWM Signal	2	200 kHz 600 kHz	Step-Up/Step-Down	Frequency Control Soft Start	Full-Bridge Half-Bridge Push-Pull	90 V	15 V	10-WDFN Exposed Pad	-40 °C	125 ¯C	Surface Mount	1
