3205 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

RING TONGUE TERMINAL, M4, #8, 16 AWG, 1.42 MM², PIDG SERIES, RED

Part	Mounting Type	Wire Gauge [Max]	Wire Gauge [Min]	Insulation	Terminal Type	Features	Color	Termination	Contact Material	Width - Outer Edges [y]	Width - Outer Edges [y]	Contact Finish	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Stud/Tab Size	Thickness	Thickness	Material - Insulation	Length - Overall [x]	Length - Overall [x]	Number of Wire Entries	Width - Outer Edges [custom]	Width - Outer Edges [custom]	Stud/Tab Size	Insulation Diameter [Min]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Length - Overall	Width - Outer Edges [x]	Width - Outer Edges [x]	Length - Ring Center to Termination	Length - Ring Center to Termination [x]	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Length - Termination	Length - Termination	Insulation Diameter [Max] [diameter]

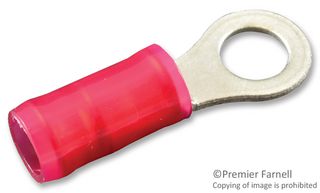

TE Connectivity Raychem Cable Protection 320554	Free Hanging (In-Line)	22 AWG	16 AWG	Insulated	Circular	Serrated Termination	Red	Crimp	Copper	7.14 mm	0.281 in	Tin	2.03 mm	3.18 mm	0.125 "	0.08 in	8 Stud	0.031 in	0.79 mm	Nylon Polyamide (PA)	0.797 "	20.24 mm

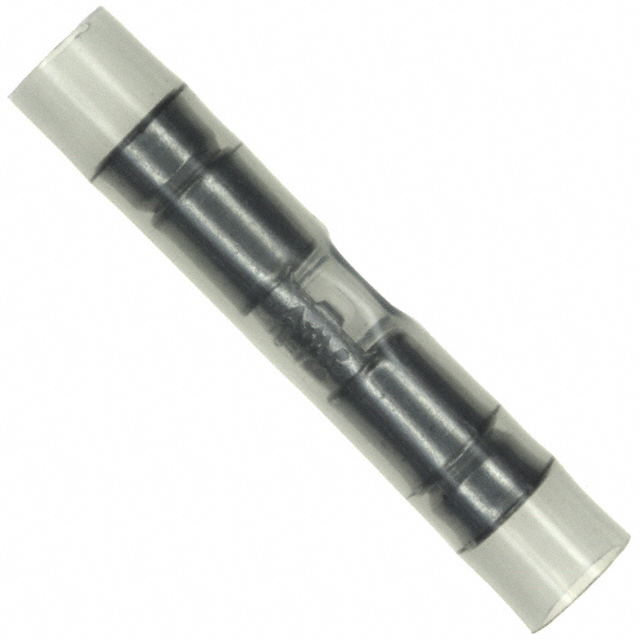

TE Connectivity Raychem Cable Protection 320562				Fully Insulated	Butt Splice Individual Openings Inline	Serrated Mating Area	Blue	Crimp															2

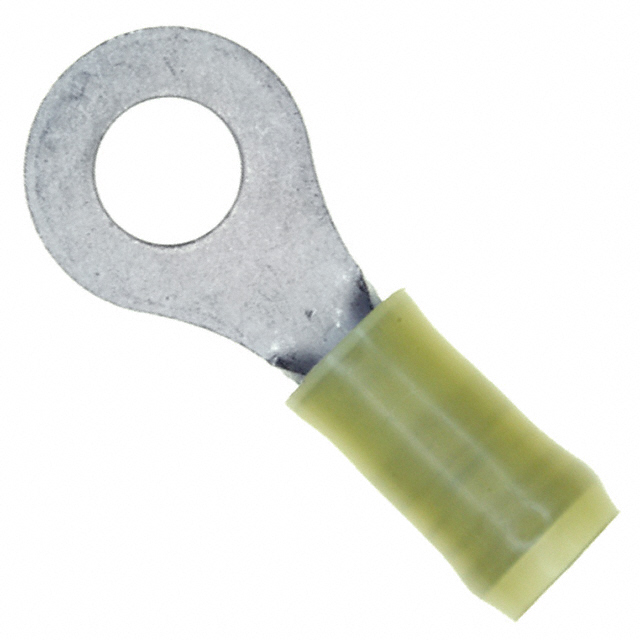

TE Connectivity Raychem Cable Protection 320569	Free Hanging (In-Line)	12 AWG	10 AWG	Insulated	Circular	Serrated Termination	Yellow	Crimp	Copper			Tin						0.04 in	1.02 mm	Nylon Polyamide (PA)	1.322 in	33.58 mm		13.49 mm	0.531 "	0.25 Stud	0.15 "	3.81 mm	0.23 in	5.84 mm

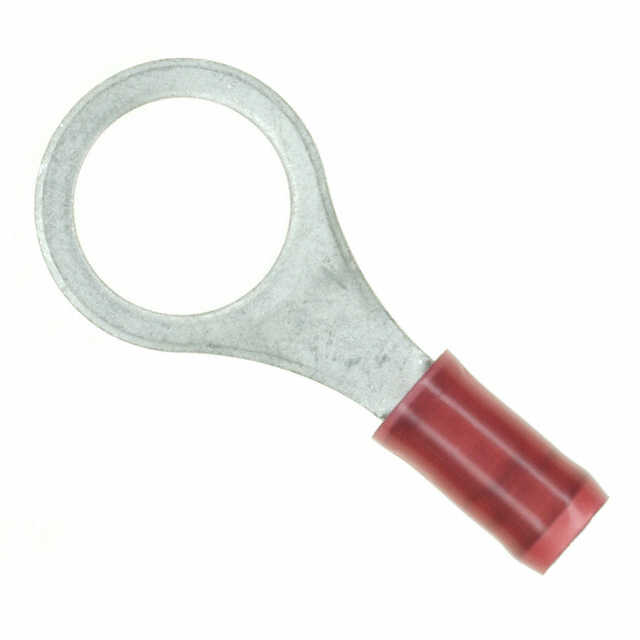

TE Connectivity Raychem Cable Protection 320573	Free Hanging (In-Line)	22 AWG	16 AWG	Insulated	Circular	Serrated Termination	Red	Crimp	Copper			Tin	2.03 mm	3.18 mm	0.125 "	0.08 in	3/8 Stud	0.031 in	0.79 mm	Nylon Polyamide (PA)	1.218 in	30.94 mm		13.49 mm	0.531 "

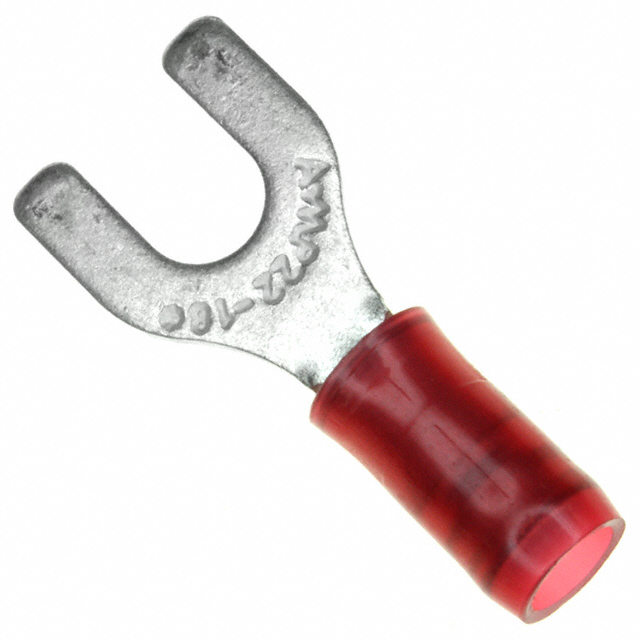

TE Connectivity Raychem Cable Protection 32050	Free Hanging (In-Line)	22 AWG	16 AWG	Insulated	Standard	Serrated Termination	Red	Crimp	Copper			Tin	2.03 mm	3.18 mm	0.125 "	0.08 in	8 Stud			Nylon Polyamide (PA)	0.908 "										23.06 mm	0.375 in	9.53 mm	7.92 mm	0.312 in	0.171 in	4.34 mm	0.404 "	10.26 mm

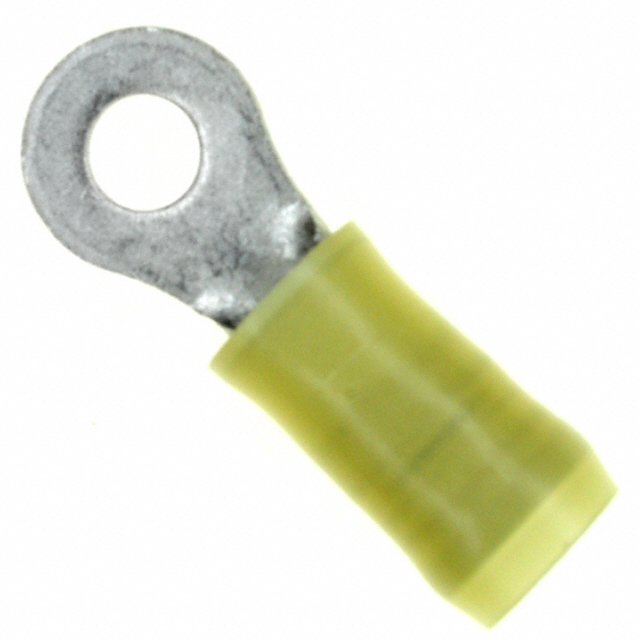

TE Connectivity Raychem Cable Protection 320568	Free Hanging (In-Line)	12 AWG	10 AWG	Insulated	Circular	Serrated Termination	Yellow	Crimp	Copper			Tin					8 Stud	0.04 in	1.02 mm	Nylon Polyamide (PA)	1.083 in	27.51 mm					0.15 "	3.81 mm	0.23 in	5.84 mm		0.375 in	9.53 mm

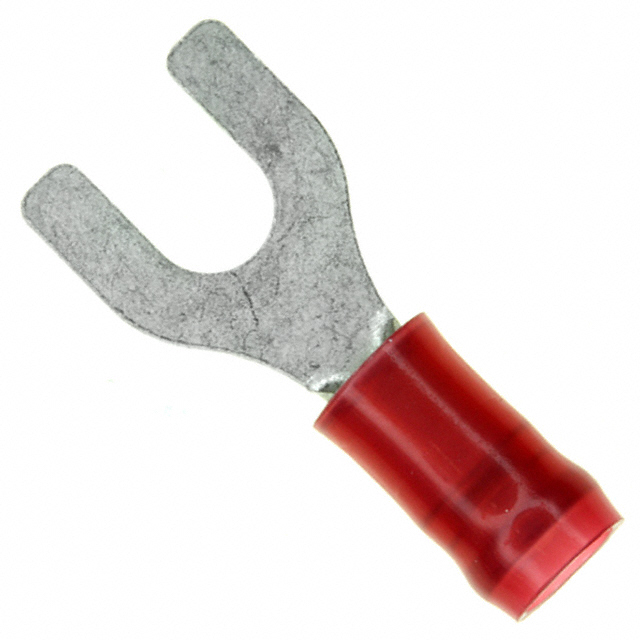

TE Connectivity Raychem Cable Protection 32053	Free Hanging (In-Line)	22 AWG	16 AWG	Insulated	Standard	Serrated Termination	Red	Crimp	Copper			Tin	2.67 mm		0.14 in	0.105 in	8 Stud			Nylon Polyamide (PA)	0.908 "										23.06 mm	0.375 in	9.53 mm	7.92 mm	0.312 in	0.171 in	4.34 mm	0.404 "	10.26 mm	3.56 mm
TE Connectivity Raychem Cable Protection 320559		22 AWG	16 AWG	Fully Insulated	Butt Splice Individual Openings Inline	Serrated Mating Area	Red	Crimp															2

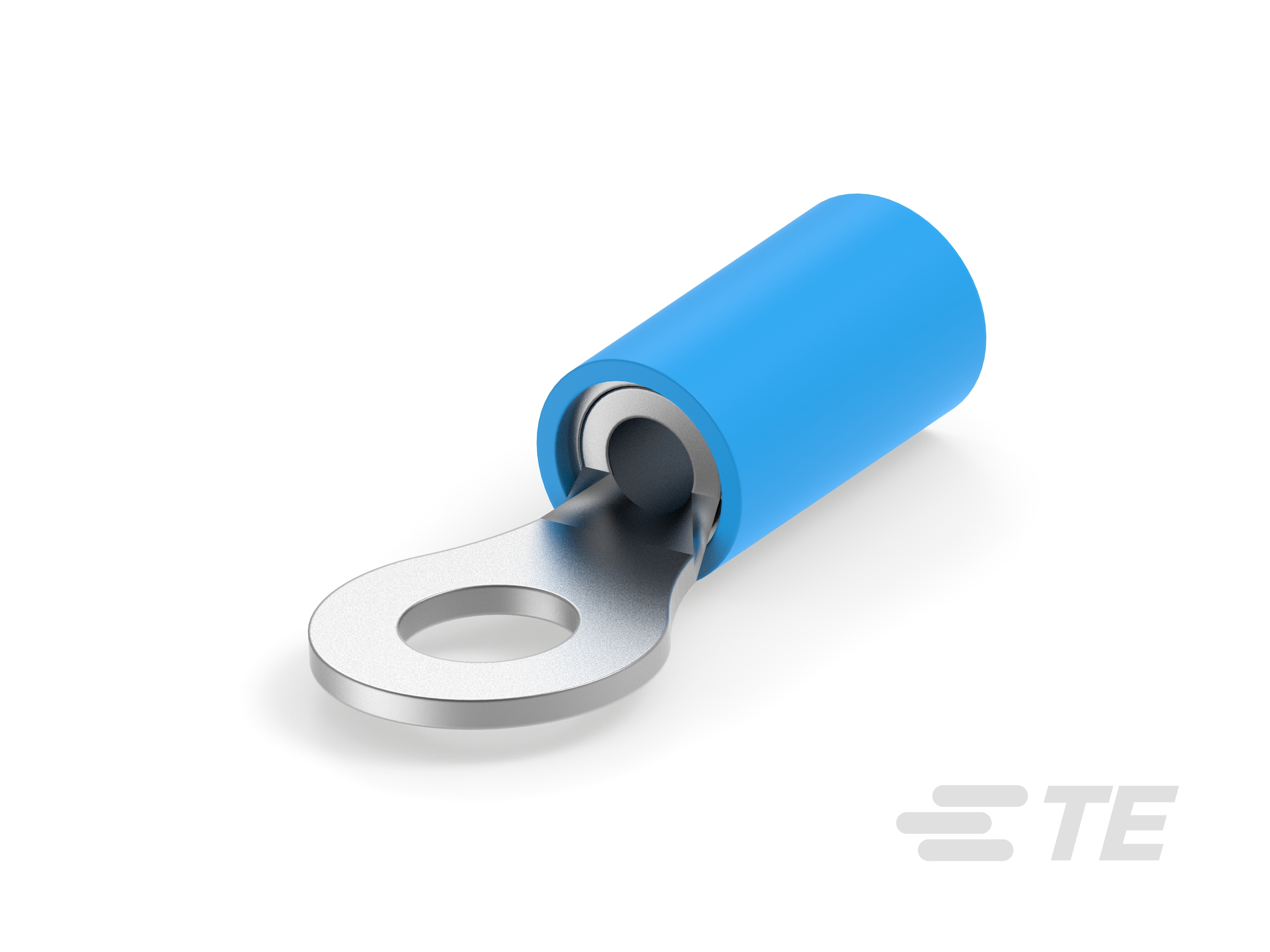

TE Connectivity Raychem Cable Protection 320560	Free Hanging (In-Line)			Insulated	Circular	Serrated Termination	Blue	Crimp	Copper			Tin	2.67 mm	3.81 mm	0.15 "	0.105 in	8 Stud	0.031 in	0.79 mm	Nylon Polyamide (PA)	0.859 in	21.82 mm										0.343 in	8.71 mm

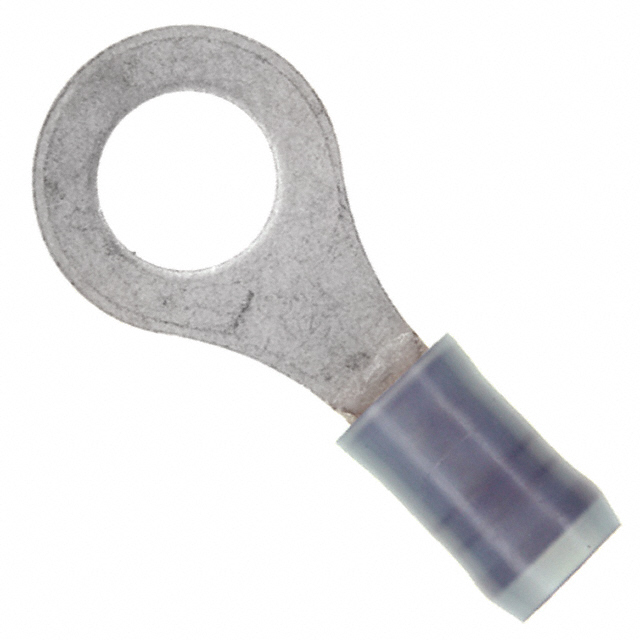

TE Connectivity Raychem Cable Protection 320563	Free Hanging (In-Line)			Insulated	Circular	Serrated Termination	Blue	Crimp	Copper	11.91 mm	0.469 in	Tin	2.67 mm	3.81 mm	0.15 "	0.105 in		0.031 in	0.79 mm	Nylon Polyamide (PA)						0.25 Stud
