MAX963 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

SENSOR OPTAMB 8 SOIC

Part	Supplier Device Package	Type	Mounting Type	Output Type	Package / Case	Package / Case	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Board Type	Current - Output / Channel	Supplied Contents	Current - Supply (Main IC)	Amplifier Type	Voltage - Supply, Single/Dual (±) [Max]	Voltage - Supply, Single/Dual (±)	Voltage - Supply, Single/Dual (±) [Min]	Contents	Channels per IC	Gain Bandwidth Product	Slew Rate	Utilized IC / Part	Propagation Delay (Max) [Max]	Voltage - Input Offset (Max) [Max]	CMRR, PSRR (Typ)	Number of Elements	Current - Input Bias (Max)	Current - Quiescent (Max) [Max]	Hysteresis	Package / Case	Current - Output / Channel [custom]	Channels per IC	Voltage - Input Offset	Voltage - Supply Span (Max) [Max]	Number of Circuits	Current - Supply	Voltage - Supply Span (Min) [Min]	Current - Input Bias
Analog Devices Inc./Maxim Integrated MAX9635ESA+T	8-SOIC	Ambient	Surface Mount	I2C	0.154 in	8-SOIC	3.9 mm	1.7 V	3.6 V	85 °C	-40 C

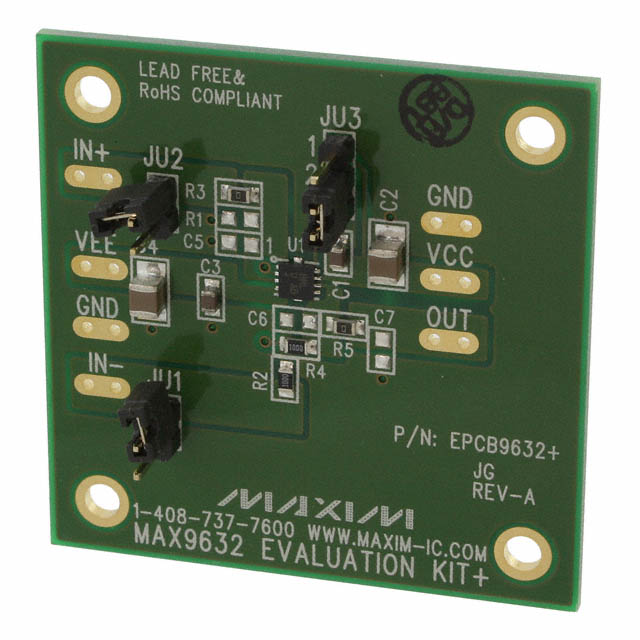

Analog Devices Inc./Maxim Integrated MAX9632EVKIT+				Rail-to-Rail Single-Ended								Fully Populated	560 µA	Board(s)	3.9 mA	General Purpose	18 V 36 V	±2.25V	4.5 V	Board(s)	1	55 MHz	30 V/µs	MAX9632
Analog Devices Inc./Maxim Integrated MAX963ESD+		General Purpose Standard (General Purpose)	Surface Mount	CMOS Complementary TTL		14-SOIC				85 °C	-40 C						5.5 V		2.7 V						7 ns	1.5 mV	80 dB 86.02 dB	2	15 µA	11 mA	3.5 mV	0.154 in 3.9 mm
Analog Devices Inc./Maxim Integrated MAX963ESD		General Purpose Standard (General Purpose)	Surface Mount	CMOS Complementary TTL		14-SOIC				85 °C	-40 C						5.5 V		2.7 V						7 ns	1.5 mV	80 dB 86.02 dB	2	15 µA	11 mA	3.5 mV	0.154 in 3.9 mm
Analog Devices Inc./Maxim Integrated MAX9635EDT+T	6-OTDFN (2x2)	Ambient	Surface Mount	I2C		6-UDFN Exposed Pad		1.7 V	3.6 V	85 °C	-40 C
Analog Devices Inc./Maxim Integrated MAX963ESD+T		General Purpose Standard (General Purpose)	Surface Mount	CMOS Complementary TTL		14-SOIC				85 °C	-40 C						5.5 V		2.7 V						7 ns	1.5 mV	80 dB 86.02 dB	2	15 µA	11 mA	3.5 mV	0.154 in 3.9 mm

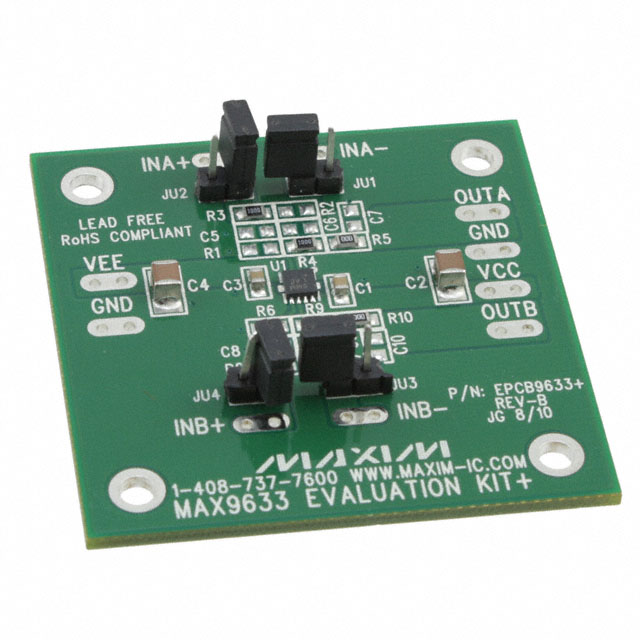

Analog Devices Inc./Maxim Integrated MAX9633EVKIT+				Single-Ended								Fully Populated	50 mA	Board(s)	3.5 mA	General Purpose	18 V 36 V	±2.25V	4.5 V	Board(s)		27 MHz	18 V/µs	MAX9633									50 mA	2 - Dual
Analog Devices Inc./Maxim Integrated MAX963ESD-T		General Purpose Standard (General Purpose)	Surface Mount	CMOS Complementary TTL		14-SOIC				85 °C	-40 C						5.5 V		2.7 V						7 ns	1.5 mV	80 dB 86.02 dB	2	15 µA	11 mA	3.5 mV	0.154 in 3.9 mm
Analog Devices Inc./Maxim Integrated MAX9636C/D+	Die		Surface Mount	Rail-to-Rail		Die				125 °C	-40 C		55 mA			CMOS						1.5 MHz	0.9 V/µs												2.2 mV	5.5 V	1	36 µA	2.1 V	0.1 pA
Analog Devices Inc./Maxim Integrated MAX9635ESA+	8-SOIC	Ambient	Surface Mount	I2C	0.154 in	8-SOIC	3.9 mm	1.7 V	3.6 V	85 °C	-40 C
