725-068 Series
Manufacturer: EDAC Inc.
Beta
⌘K
725 SERIES (.100" (2.54MM) CONTA
| Part | Termination Rows [custom] | Material - Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Contact Finish Thickness | Contact Finish Thickness | Card Type | Card Thickness [Max] | Card Thickness [Min] | Read Out | Number of Positions/Bay/Row | Contact Material | Color | Pitch | Pitch | Contact Type | Number of Positions | Number of Rows [custom] | Contact Finish | Mounting Type | Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

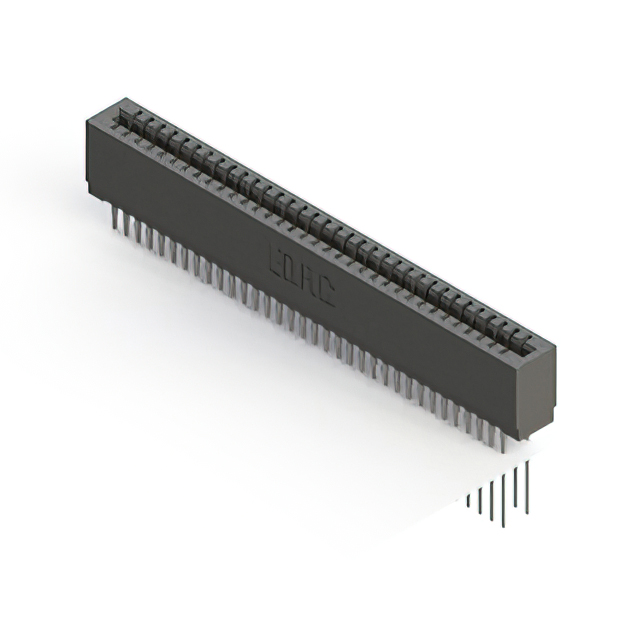

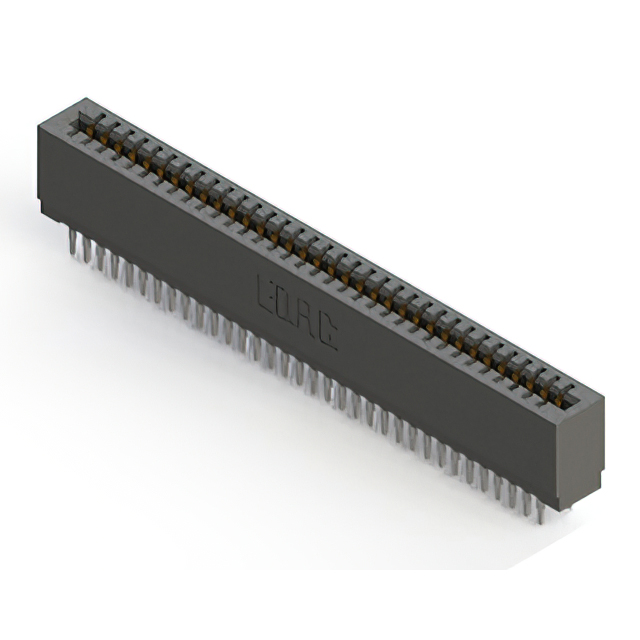

 EDAC Inc. | 2 | Polyester Thermoplastic | -40 C | 105 ░C | Press-Fit | 30 Áin | 0.76 Ám | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | 34 | Copper Alloy | Black | 0.1 " | 2.54 mm | Cantilever | 68 positions | 2 | Gold | Through Hole | Female |
 EDAC Inc. | 2 | Polyester Thermoplastic | -40 C | 105 ░C | Press-Fit Wire Wrap | 30 Áin | 0.76 Ám | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | 34 | Copper Alloy | Black | 0.1 " | 2.54 mm | Cantilever | 68 positions | 2 | Gold | Through Hole | Female |
