PWD-55 Series

Catalog

RF PWR DIVIDER 2GHZ-4GHZ MODULE

Part	Insertion Loss	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Frequency [Max]	Frequency [Min]	Package / Case	Specifications [Min]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]
Cinch Connectivity Solutions Midwest Microwave PWD-5512-02-SMA-79	0.4 dB	76.2 mm	50.1 mm	3 "	2 in	4 GHz	2 GHz	Module	20 dB
Cinch Connectivity Solutions Midwest Microwave PWD-5522-04-NNN-79	1 dB	76.2 mm	50.1 mm	3 "	2 in	8 GHz	2 GHz	Module	18 dB

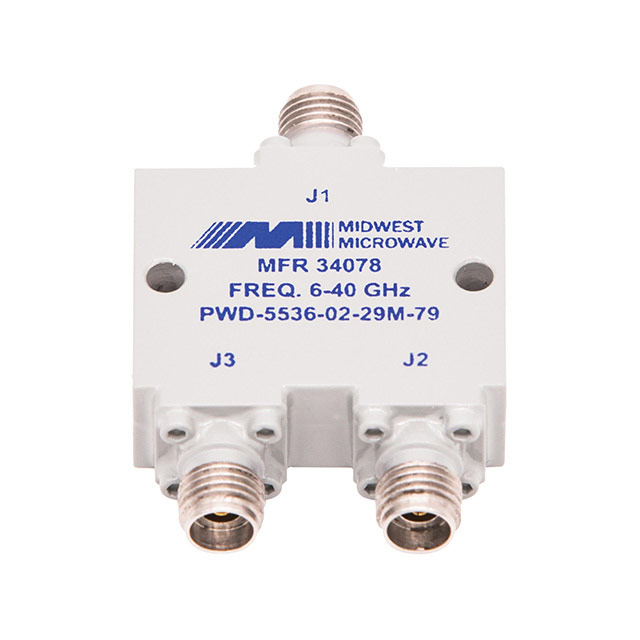

Cinch Connectivity Solutions Midwest Microwave PWD-5536-02-29M-79	1.8 dB	26.92 mm	20.32 mm	1.06 "	0.8 "	40 GHz	6 GHz	Module	14.5 dB	9.65 mm	0.38 in
Cinch Connectivity Solutions Midwest Microwave PWD-5515-02-SMA-79	0.5 dB	25.4 mm	6.35 mm	1 in	0.25 in	12.4 GHz	8 GHz	Module	20 dB

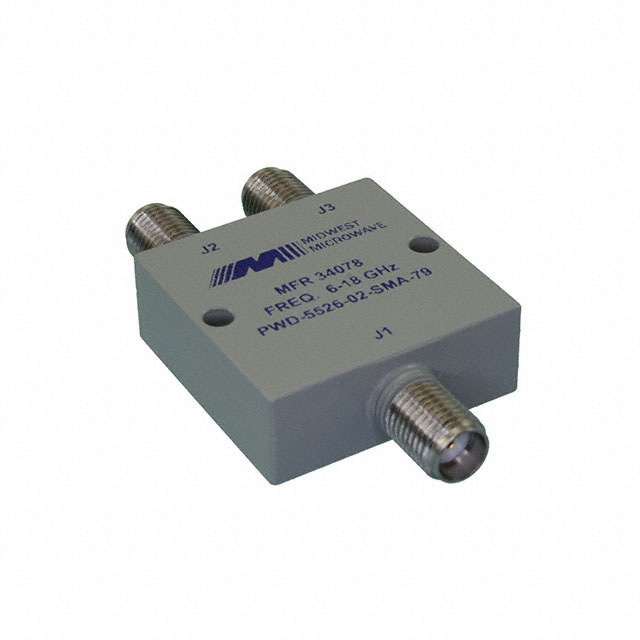

Cinch Connectivity Solutions Midwest Microwave PWD-5526-02-SMA-79	0.5 dB	25.4 mm	25.4 mm	1 in	1 "	18 GHz	6 GHz	Module	18 dB
Cinch Connectivity Solutions Midwest Microwave PWD-5532-03-SMA-79	1 dB	63.5 mm	19.1 mm	2.5 "	0.75 in	18 GHz	2 GHz	Module	20 dB	9.7 mm	0.38 in
Cinch Connectivity Solutions Midwest Microwave PWD-5520-03-SMA-79	1 dB	76.2 mm		3 "	1.5 "	2 GHz	500 MHz	Module	15 dB			38.1 mm
Cinch Connectivity Solutions Midwest Microwave PWD-5532-08-SMA-79	0.7 dB	116.8 mm		4.6 "	4 "	18 GHz	2 GHz	Module	15 dB			101.6 mm
Cinch Connectivity Solutions Midwest Microwave PWD-5530-08-SMA-79	1 dB	132.1 mm	101.6 mm	5.2 in	4 "	18 GHz	500 MHz	Module	15 dB
Cinch Connectivity Solutions Midwest Microwave PWD-5520-08-SMA-79	1 dB	76.2 mm	101.6 mm	3 "	4 "	2 GHz	500 MHz	Module	15 dB
